Description
Brand - NADELLA
Item Number - NTV27-28DC-650 NADELLA
Category - Telescopic Rails Full Extension
Principal Dimensions & Load Ratings (Metric):
Hole Separation (C) - 200 mm
Length (L) - 650 mm
Extension (E) - 650 mm
Load Capacity for Pair of Rails (Cy) - 550 N
Load Capacity for Pair of Rails (Cz) - 275 N
Net Weight - 2.4 kg
Material - Zinc-Plated Steel
Description of Suffixes and Prefixes:
NTV - Telescopic rails full extension
DC - Back-to-Back Assembly

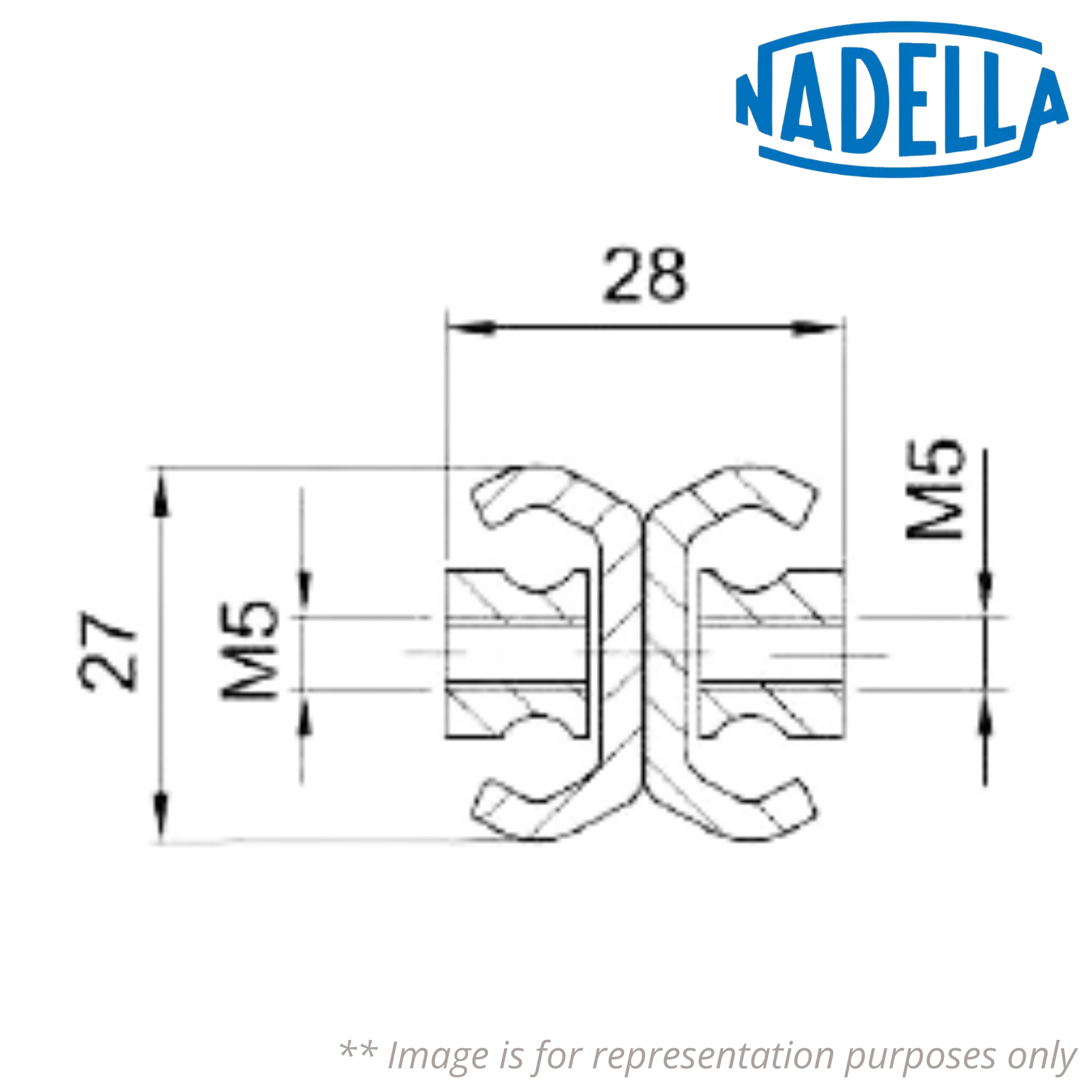

♦♦ Images are for representation purposes only
Item Number - NTV27-28DC-650 NADELLA
Category - Telescopic Rails Full Extension
Principal Dimensions & Load Ratings (Metric):
Hole Separation (C) - 200 mm
Length (L) - 650 mm
Extension (E) - 650 mm
Load Capacity for Pair of Rails (Cy) - 550 N
Load Capacity for Pair of Rails (Cz) - 275 N
Net Weight - 2.4 kg
Material - Zinc-Plated Steel
Description of Suffixes and Prefixes:
NTV - Telescopic rails full extension
DC - Back-to-Back Assembly
♦♦ Images are for representation purposes only
