Description
Brand - NADELLA
Item Number - NTV27-28DC-450 NADELLA
Category - Telescopic Rails Full Extension

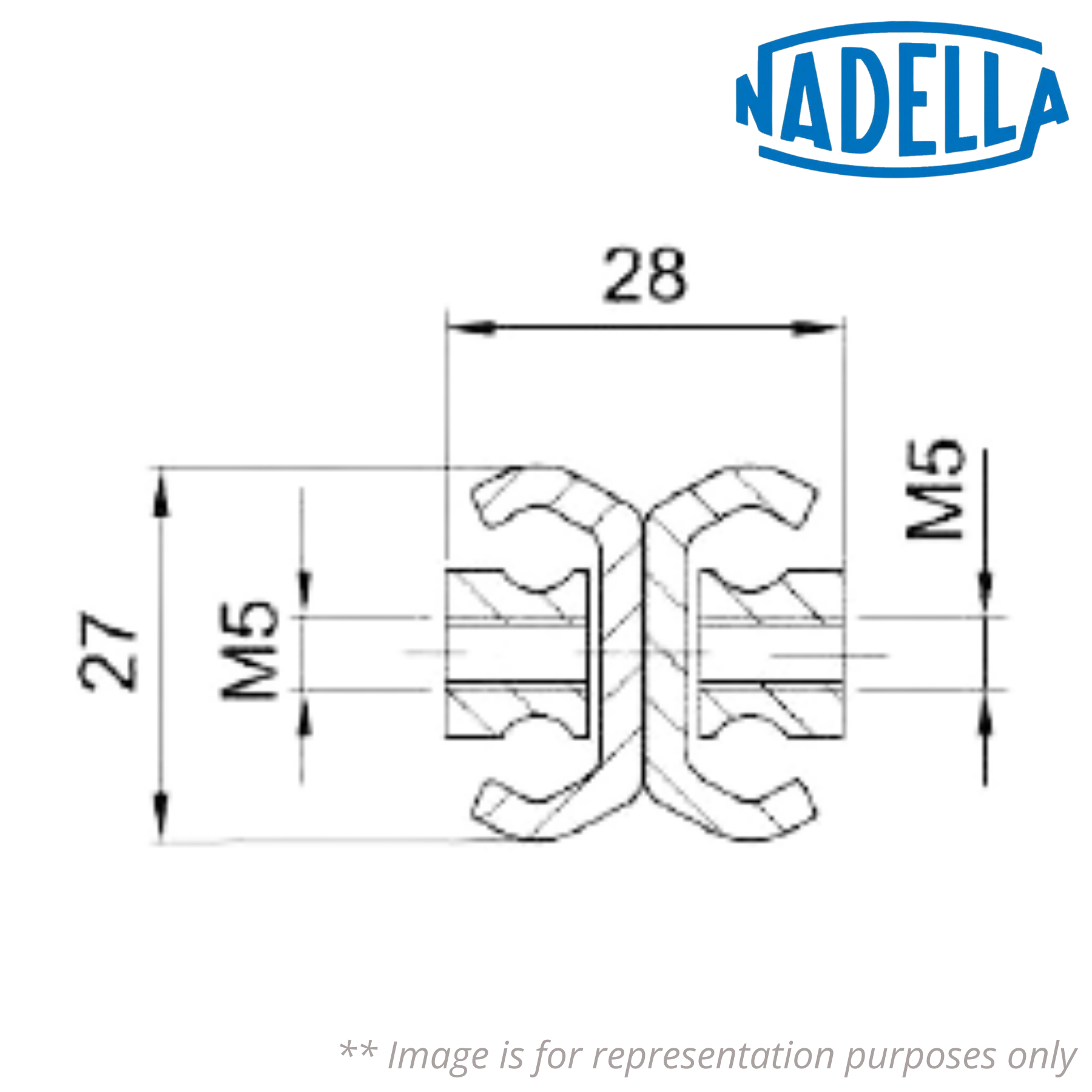

Principal Dimensions & Load Ratings (Metric):
Hole Separation (B) - 250 mm
Length (L) - 450 mm
Extension (E) - 450 mm
Load Capacity for Pair of Rails (Cy) - 750 N
Load Capacity for Pair of Rails (Cz) - 375 N
Net Weight - 1.7 kg
Material - Zinc-Plated Steel
Description of Suffixes and Prefixes:
NTV - Telescopic rails full extension
DC - Back-to-Back Assembly
♦♦ Images are for representation purposes only
Item Number - NTV27-28DC-450 NADELLA
Category - Telescopic Rails Full Extension
Principal Dimensions & Load Ratings (Metric):
Hole Separation (B) - 250 mm
Length (L) - 450 mm
Extension (E) - 450 mm
Load Capacity for Pair of Rails (Cy) - 750 N
Load Capacity for Pair of Rails (Cz) - 375 N
Net Weight - 1.7 kg
Material - Zinc-Plated Steel
Description of Suffixes and Prefixes:
NTV - Telescopic rails full extension
DC - Back-to-Back Assembly
♦♦ Images are for representation purposes only
