Description
Brand - NADELLA
Item Number - NTV27-26T-1100 NADELLA
Category - Telescopic Rails Full Extension

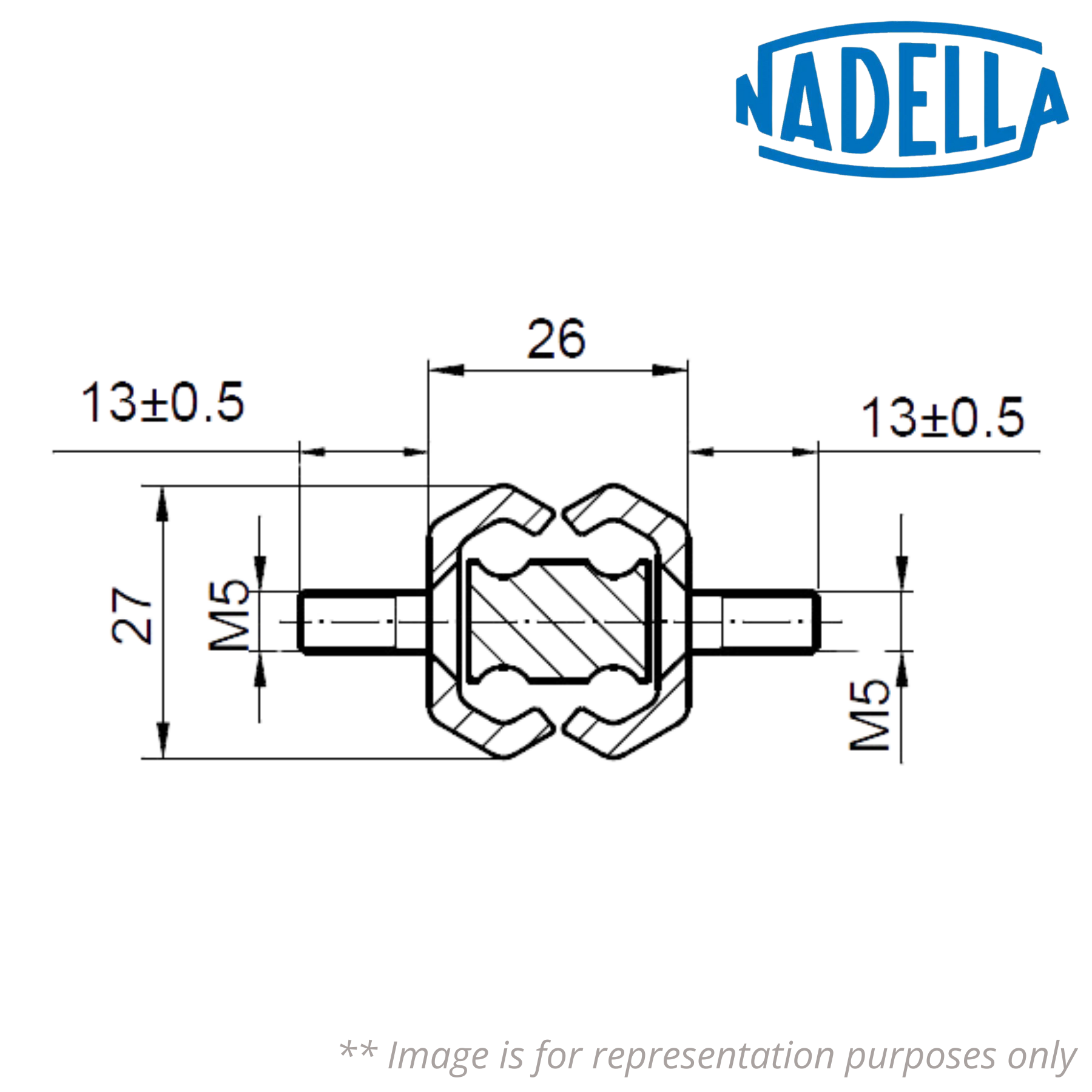

Principal Dimensions & Load Ratings (Metric):
Hole Separation (C) - 450 mm
Length (L) - 1100 mm
Extension (E) - 1100 mm
Load Capacity for Pair of Rails (Cy) - 800 N
Load Capacity for Pair of Rails (Cz) - 400 N
Net Weight - 4.4 kg
Material - Zinc-plated Steel
Description of Suffixes and Prefixes:
NTV - Telescopic rails full extension
T - Sheetrail
♦♦ Images are for representation purposes only
Item Number - NTV27-26T-1100 NADELLA
Category - Telescopic Rails Full Extension
Principal Dimensions & Load Ratings (Metric):
Hole Separation (C) - 450 mm
Length (L) - 1100 mm
Extension (E) - 1100 mm
Load Capacity for Pair of Rails (Cy) - 800 N
Load Capacity for Pair of Rails (Cz) - 400 N
Net Weight - 4.4 kg
Material - Zinc-plated Steel
Description of Suffixes and Prefixes:
NTV - Telescopic rails full extension
T - Sheetrail
♦♦ Images are for representation purposes only
