Description
Brand - NADELLA
Item Number - NTV100-34-700 NADELLA
Category - Telescopic Rails Full Extension
Principal Dimensions & Load Ratings (Metric):
Hole Separation (B) - 300 mm
Length (L) - 700 mm
Extension (E) - 700 mm
Load Capacity for Pair of Rails (Cy) - 5550 N
Load Capacity for Pair of Rails (Cz) - 2775 N
Net Weight - 13.1 kg
Material - Zinc-Plated Steel
Description of Prefix:
NTV - Telescopic rails full extension

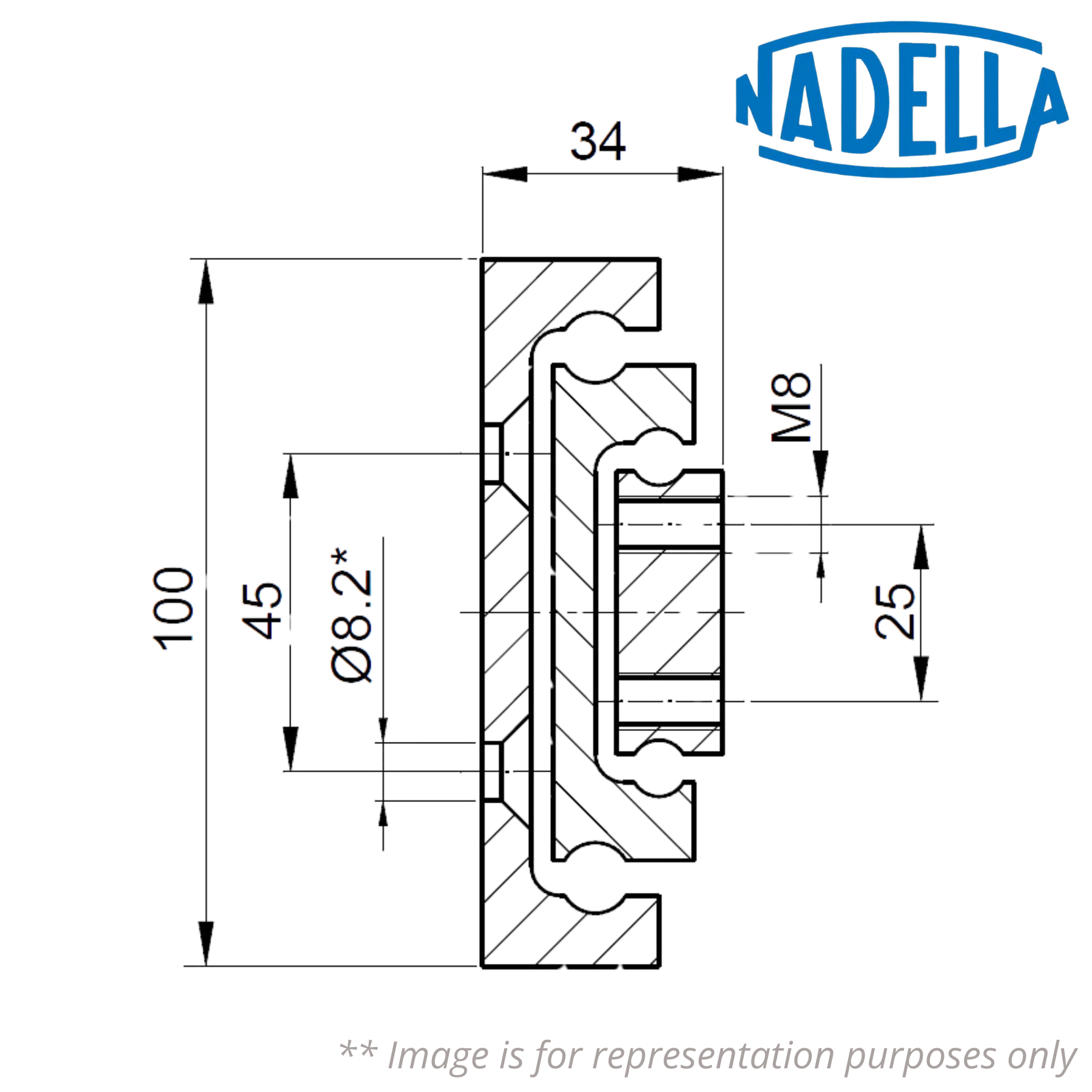

♦♦ Images are for representation purposes only
Item Number - NTV100-34-700 NADELLA
Category - Telescopic Rails Full Extension
Principal Dimensions & Load Ratings (Metric):
Hole Separation (B) - 300 mm
Length (L) - 700 mm
Extension (E) - 700 mm
Load Capacity for Pair of Rails (Cy) - 5550 N
Load Capacity for Pair of Rails (Cz) - 2775 N
Net Weight - 13.1 kg
Material - Zinc-Plated Steel
Description of Prefix:
NTV - Telescopic rails full extension
♦♦ Images are for representation purposes only
