Description
Brand - NADELLA
Item Number - NTUZ84-30H-1090-L NADELLA
Category - Hardened Telescopic Rails Over Extension
Principal Dimensions & Load Ratings (Metric):
Length (L) - 1090 mm
Extension (E) - 1681.5 mm
Load Capacity for Pair of Rails (Cy) - 1300 N
Dynamic Load for Lifetime Calculation (Cdyn) - 2235 N
Weight - 9.32 kg
Description of Suffixes and Prefixes:
NTUZ - Over extension telescopic rails NTUZ with a stroke bigger than 100% of the installation length
R - Code for Left Version

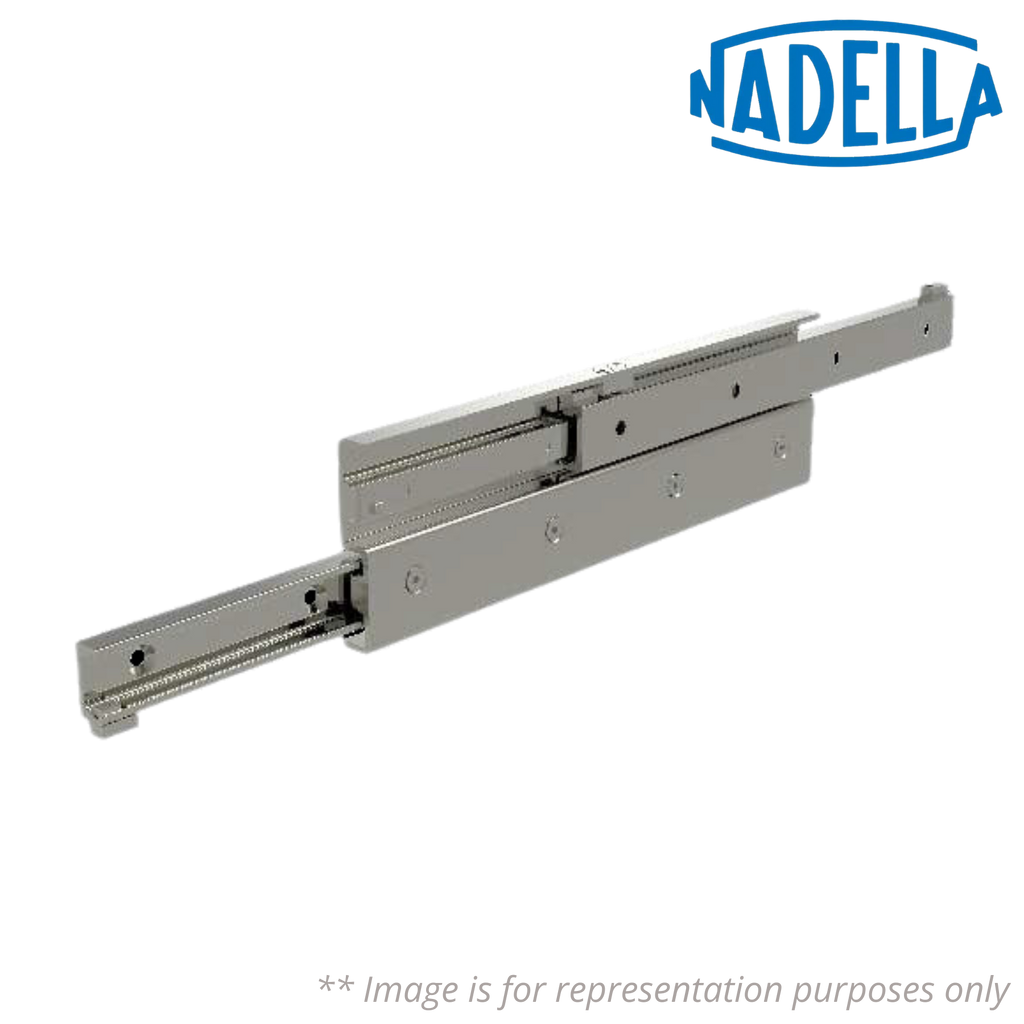

♦♦ Images are for representation purposes only
