Description
Brand - NADELLA
Item Number - NTUZ208-69H-1490-R NADELLA
Category - Hardened Telescopic Rails Over Extension
Principal Dimensions & Load Ratings (Metric):
Length (L) - 1490 mm
Extension (E) - 2321 mm
Load Capacity for Pair of Rails (Cy) - 10072 N
Dynamic Load for Lifetime Calculation (Cdyn) - 12620 N
Weight - 64.66 kg
Description of Suffixes and Prefixes:
NTUZ - Over extension telescopic rails NTUZ with a stroke bigger than 100% of the installation length
R - Code for Right Version

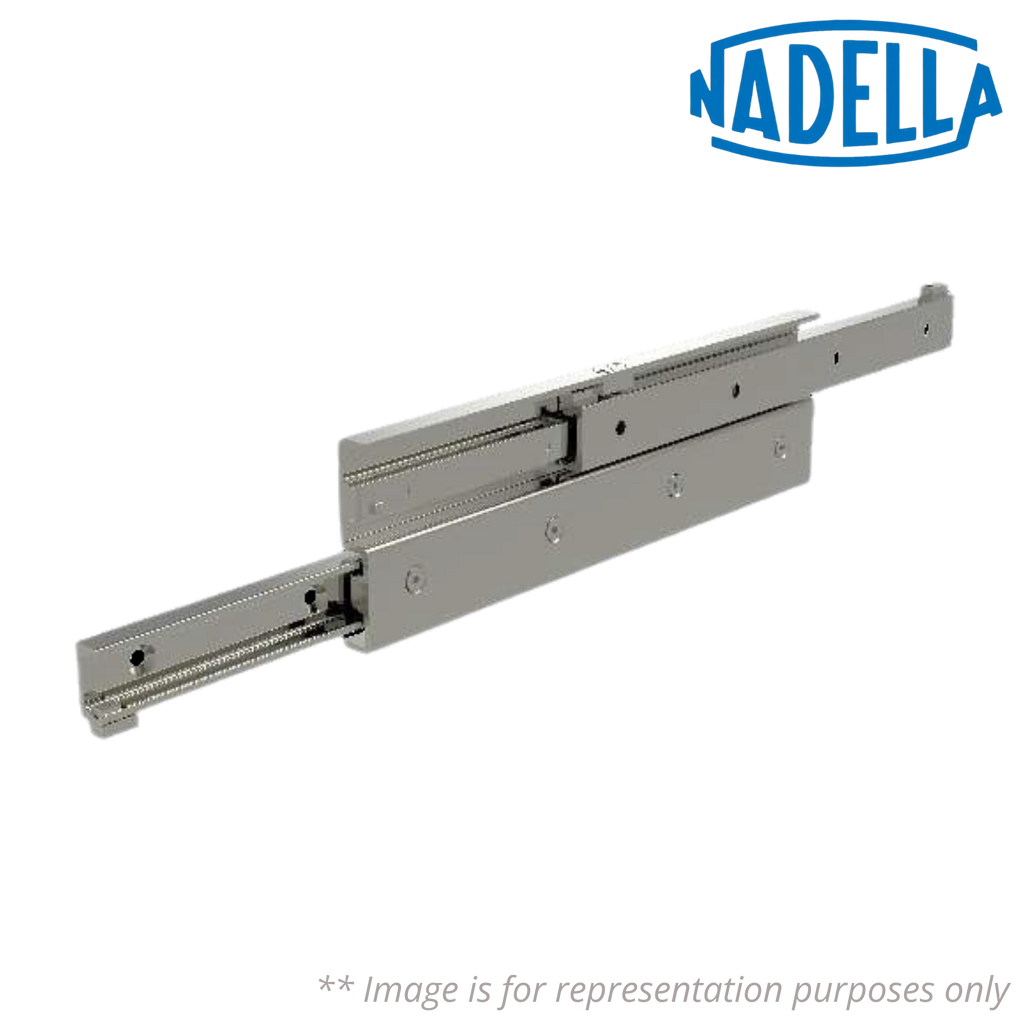

♦♦ Images are for representation purposes only
Item Number - NTUZ208-69H-1490-R NADELLA
Category - Hardened Telescopic Rails Over Extension
Principal Dimensions & Load Ratings (Metric):
Length (L) - 1490 mm
Extension (E) - 2321 mm
Load Capacity for Pair of Rails (Cy) - 10072 N
Dynamic Load for Lifetime Calculation (Cdyn) - 12620 N
Weight - 64.66 kg
Description of Suffixes and Prefixes:
NTUZ - Over extension telescopic rails NTUZ with a stroke bigger than 100% of the installation length
R - Code for Right Version
♦♦ Images are for representation purposes only
