Description
Brand - NADELLA
Item Number - NTUZ208-69H-1330-L NADELLA
Category - Hardened Telescopic Rails Over Extension
Principal Dimensions & Load Ratings (Metric):
Length (L) - 1330 mm
Extension (E) - 2081 mm
Load Capacity for Pair of Rails (Cy) - 9173 N
Dynamic Load for Lifetime Calculation (Cdyn) - 11936 N
Weight - 57.71 kg
Description of Suffixes and Prefixes:
NTUZ - Over extension telescopic rails NTUZ with a stroke bigger than 100% of the installation length
R - Code for Left Version

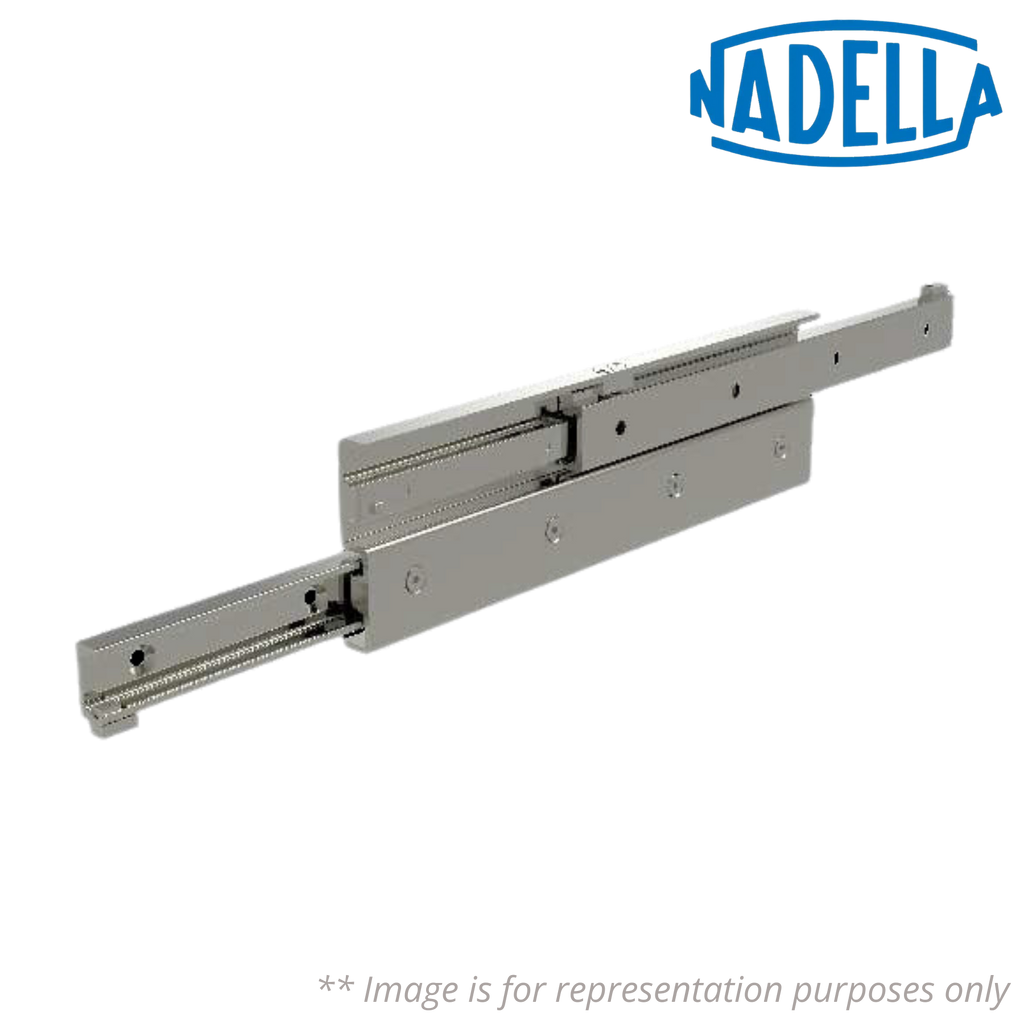

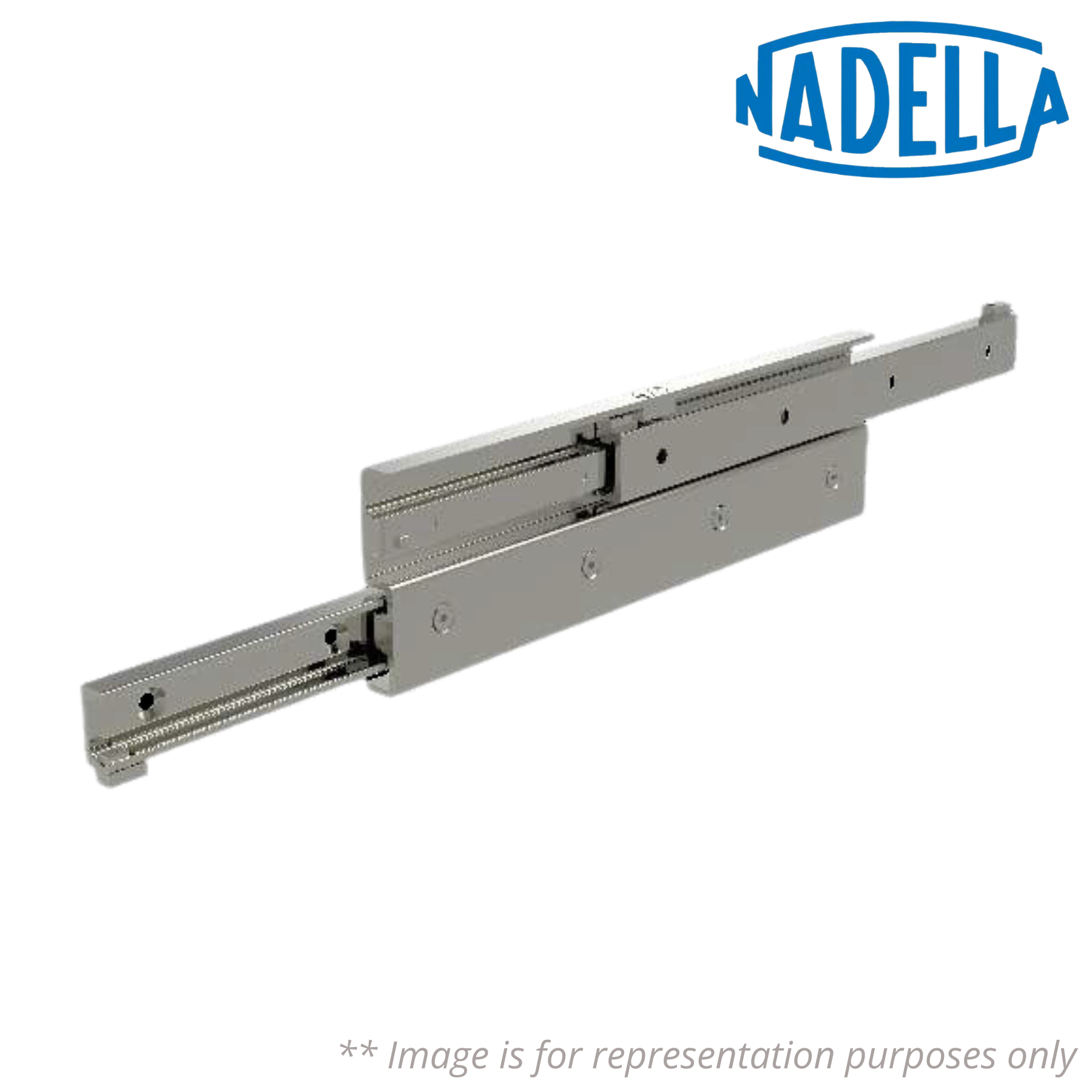

♦♦ Images are for representation purposes only
Item Number - NTUZ208-69H-1330-L NADELLA
Category - Hardened Telescopic Rails Over Extension
Principal Dimensions & Load Ratings (Metric):
Length (L) - 1330 mm
Extension (E) - 2081 mm
Load Capacity for Pair of Rails (Cy) - 9173 N
Dynamic Load for Lifetime Calculation (Cdyn) - 11936 N
Weight - 57.71 kg
Description of Suffixes and Prefixes:
NTUZ - Over extension telescopic rails NTUZ with a stroke bigger than 100% of the installation length
R - Code for Left Version
♦♦ Images are for representation purposes only
