Description
Brand - NADELLA
Item Number - NTUZ120-50H-1810-R NADELLA

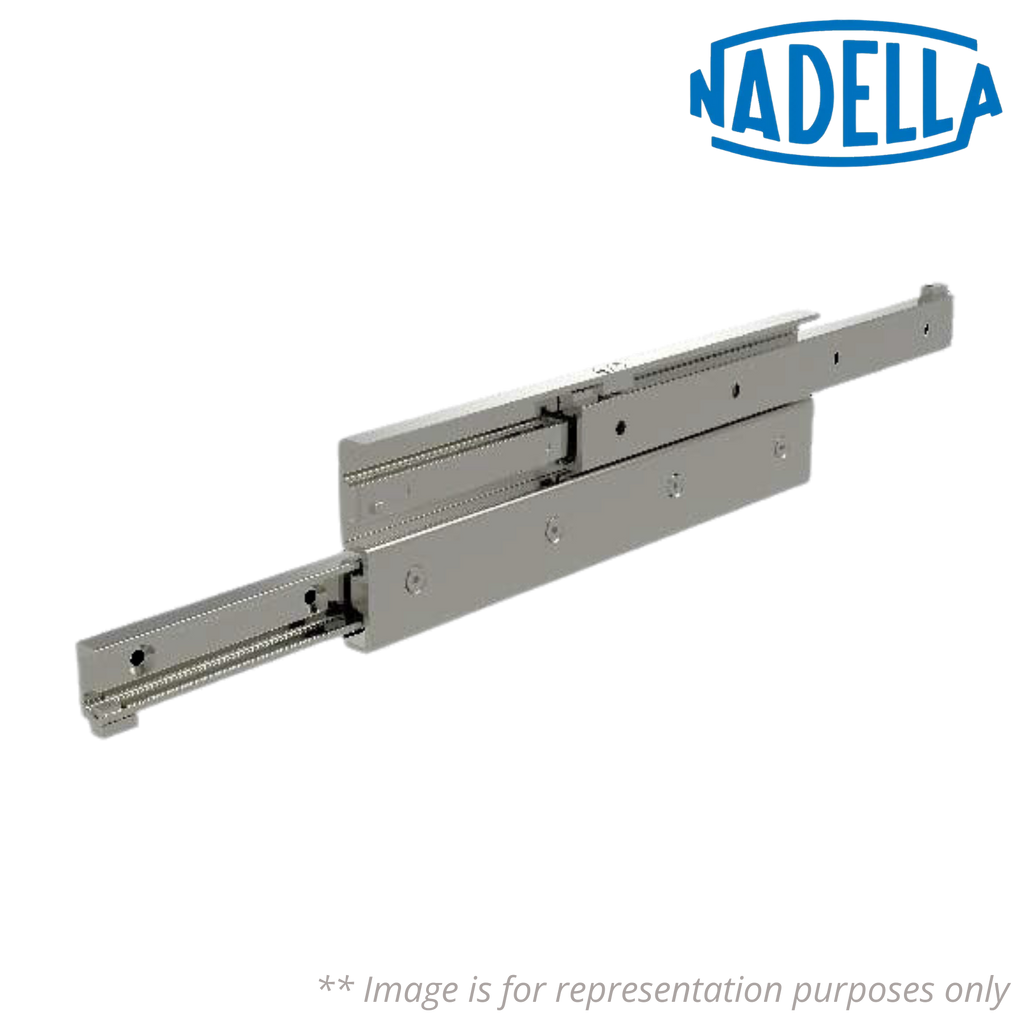

Category - Hardened Telescopic Rails Over Extension
Principal Dimensions & Load Ratings (Metric):
Length (L) - 1810 mm
Extension (E) - 2784 mm
Load Capacity for Pair of Rails (Cy) - 3079 N
Dynamic Load for Lifetime Calculation (Cdyn) - 3936 N
Weight - 38.59 kg
Description of Suffixes and Prefixes:
NTUZ - Over extension telescopic rails NTUZ with a stroke bigger than 100% of the installation length
R - Code for Right Version
♦♦ Images are for representation purposes only
