Description
Brand - NADELLA
Item Number - NTUZ120-50H-1330-R NADELLA
Category - Hardened Telescopic Rails Over Extension
Principal Dimensions & Load Ratings (Metric):
Length (L) - 1330 mm
Extension (E) - 2064 mm
Load Capacity for Pair of Rails (Cy) - 3965 N
Dynamic Load for Lifetime Calculation (Cdyn) - 5616 N
Weight - 28.36 kg
Description of Suffixes and Prefixes:
NTUZ - Over extension telescopic rails NTUZ with a stroke bigger than 100% of the installation length
R - Code for Right Version

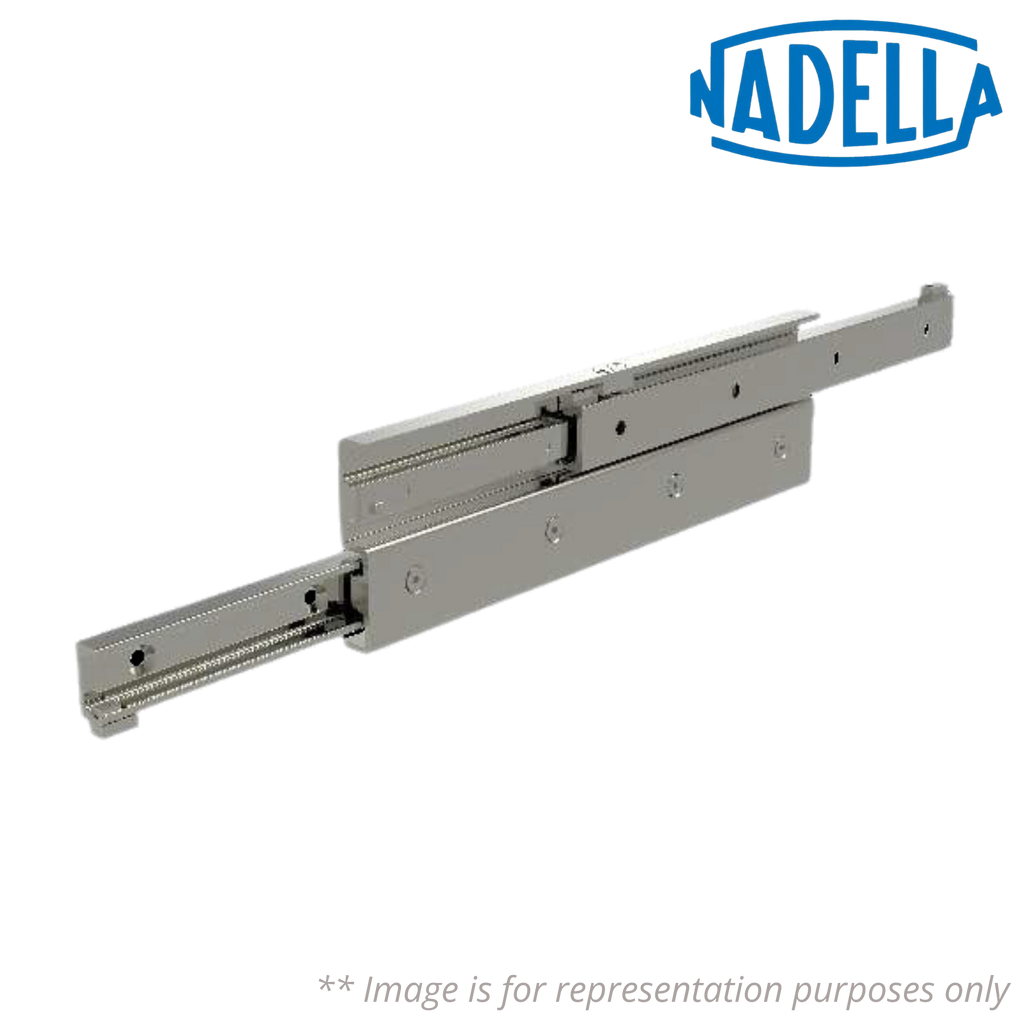

♦♦ Images are for representation purposes only
