Description
Brand - NADELLA
Item Number - NTU72-30T-350 NADELLA
Category - Telescopic Rail Over Extension

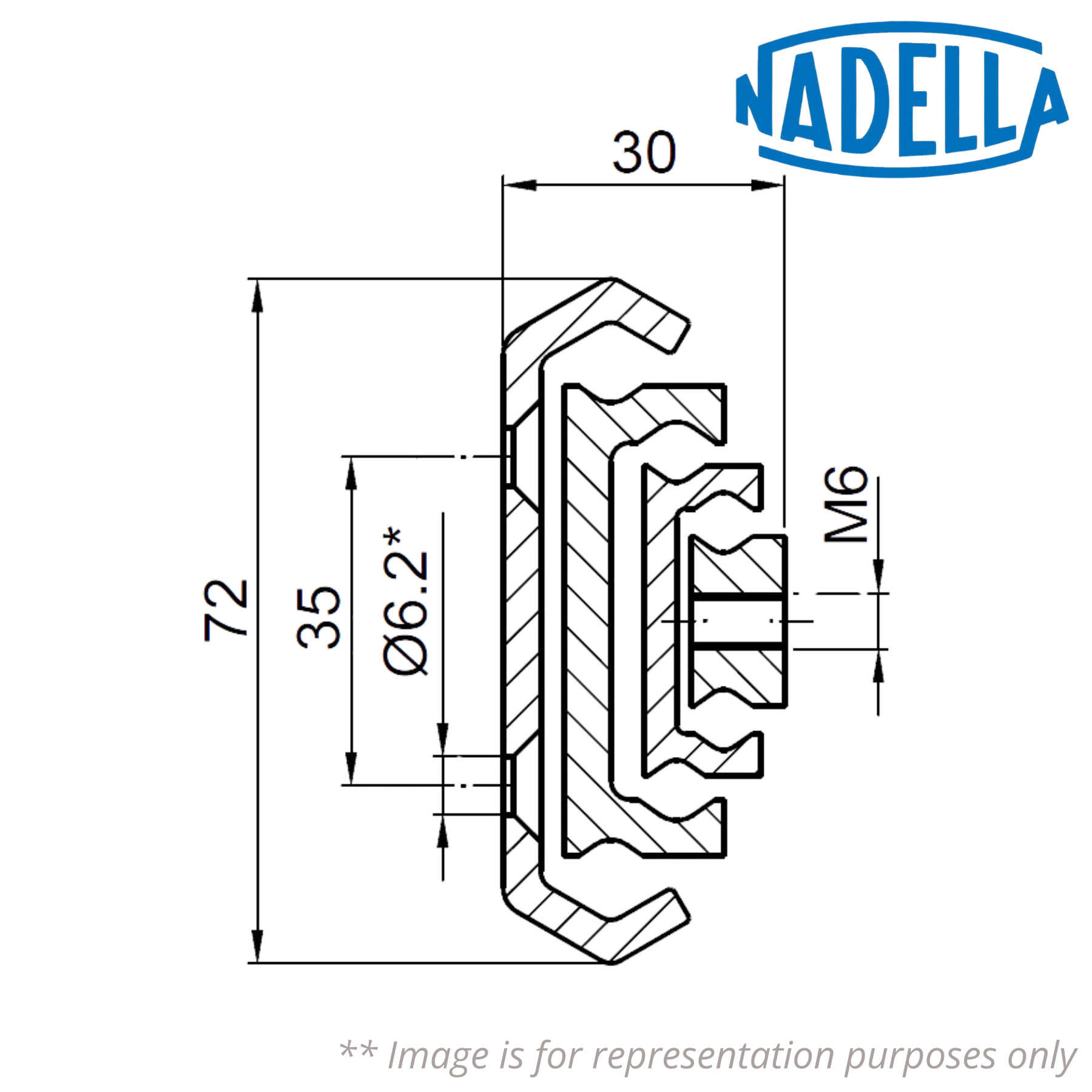

Principal Dimensions & Load Ratings (Metric):
Hole Separation (B) - 150 mm
Length (L) - 350 mm
Extension (E) - 525 mm
Maximum Load Per pair - 1440 N
Net Weight - 3 kg
Description of Suffixes and Prefixes:
NTU - Telescopic rails over extension
T - Sheetrail
Other salient points to be noted:
• Material - Zinc-Plated Steel
♦♦ Images are for representation purposes only
