Description
Brand - NADELLA
Item Number - NTU72-30T-1200 NADELLA
Category - Telescopic Rail Over Extension
Principal Dimensions & Load Ratings (Metric):
Hole Separation (C) - 475 mm
Length (L) - 1200 mm
Extension (E) - 1800 mm
Maximum Load Per pair - 630 N
Net Weight - 10.3 kg
Description of Suffixes and Prefixes:
NTU - Telescopic rails over extension
T - Sheetrail
Other salient points to be noted:
• Material - Zinc-Plated Steel

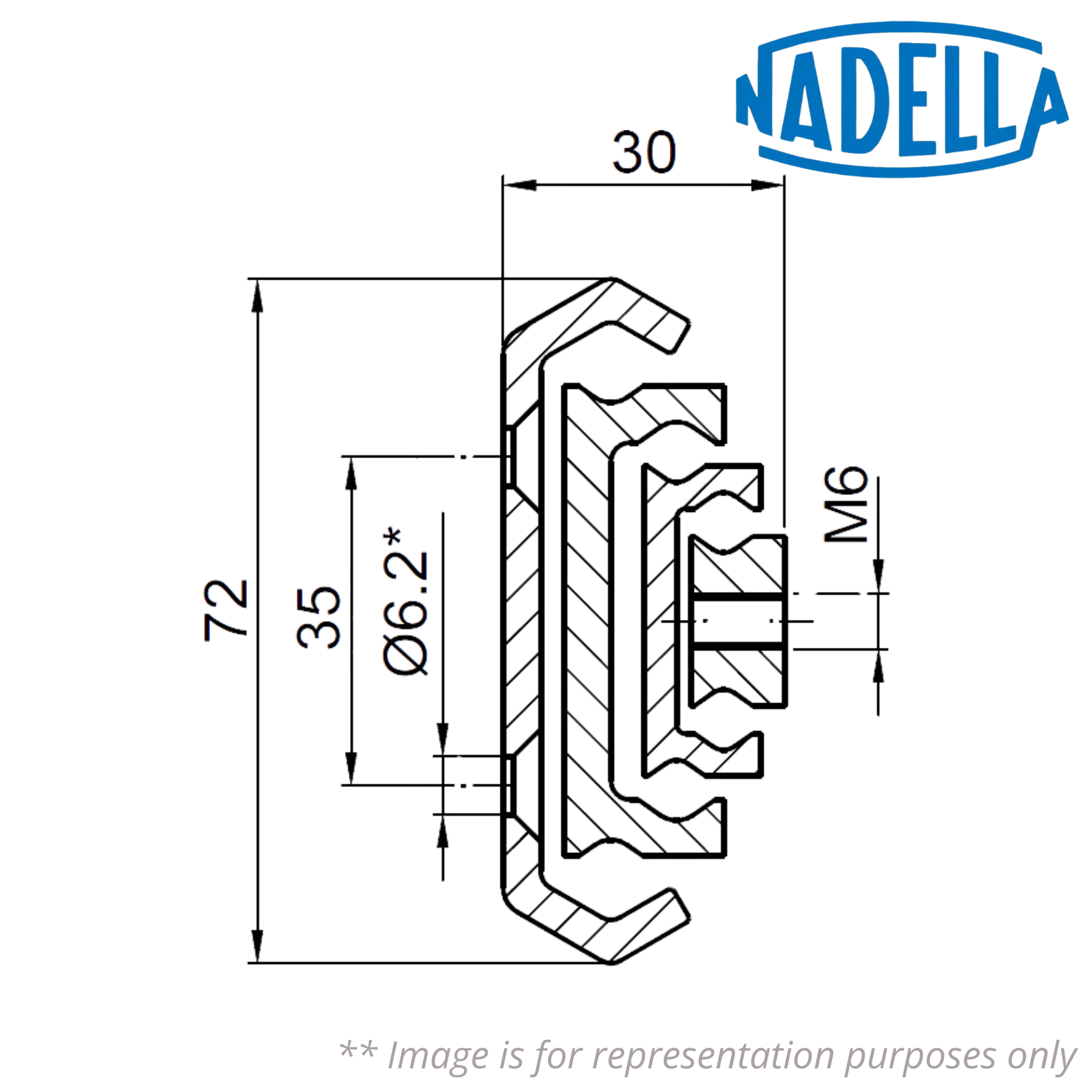

♦♦ Images are for representation purposes only
Item Number - NTU72-30T-1200 NADELLA
Category - Telescopic Rail Over Extension
Principal Dimensions & Load Ratings (Metric):
Hole Separation (C) - 475 mm
Length (L) - 1200 mm
Extension (E) - 1800 mm
Maximum Load Per pair - 630 N
Net Weight - 10.3 kg
Description of Suffixes and Prefixes:
NTU - Telescopic rails over extension
T - Sheetrail
Other salient points to be noted:
• Material - Zinc-Plated Steel
♦♦ Images are for representation purposes only
