Description
Brand - NADELLA
Item Number - NTSU80-79DS-900 NADELLA
Category - Telescopic Rail Over Extension

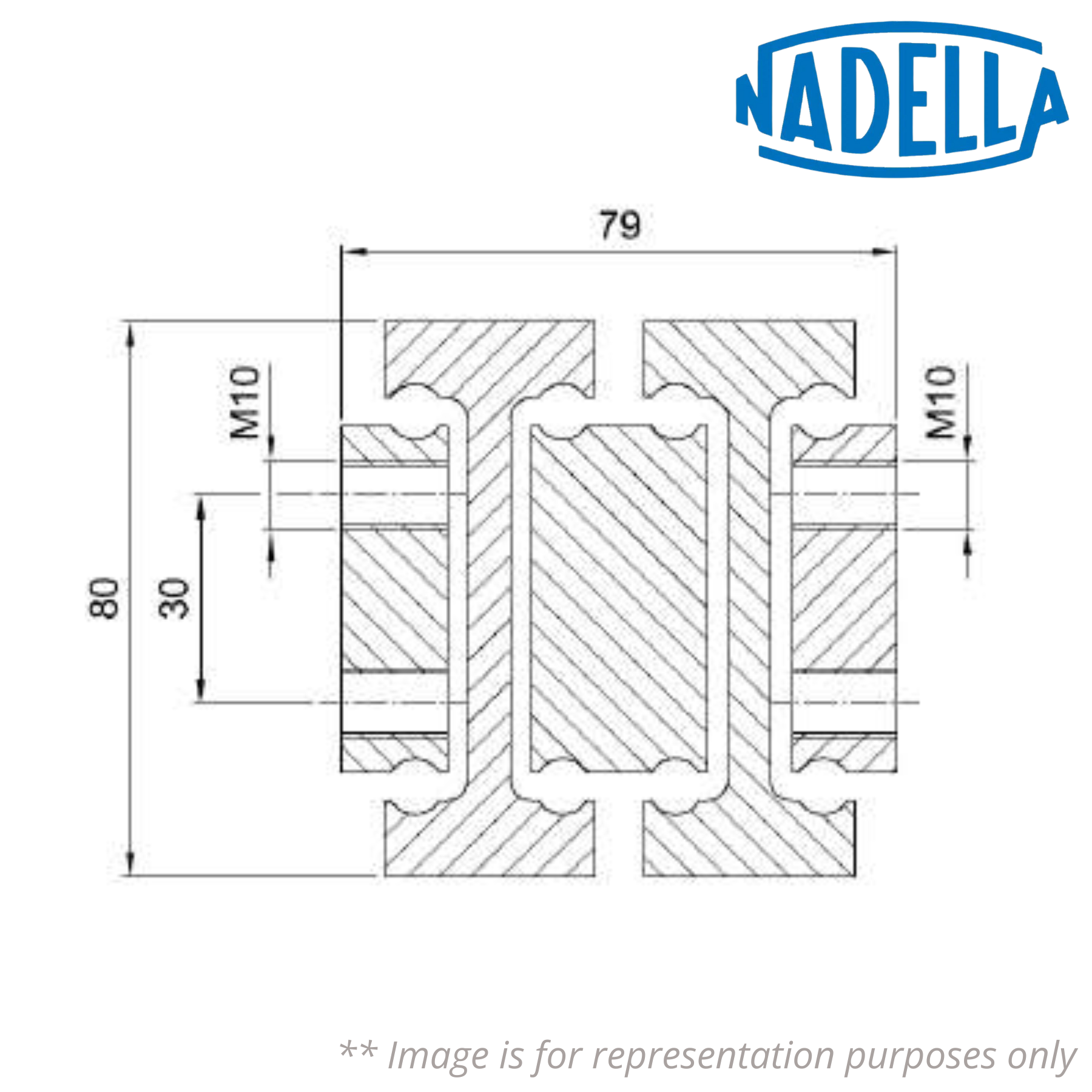

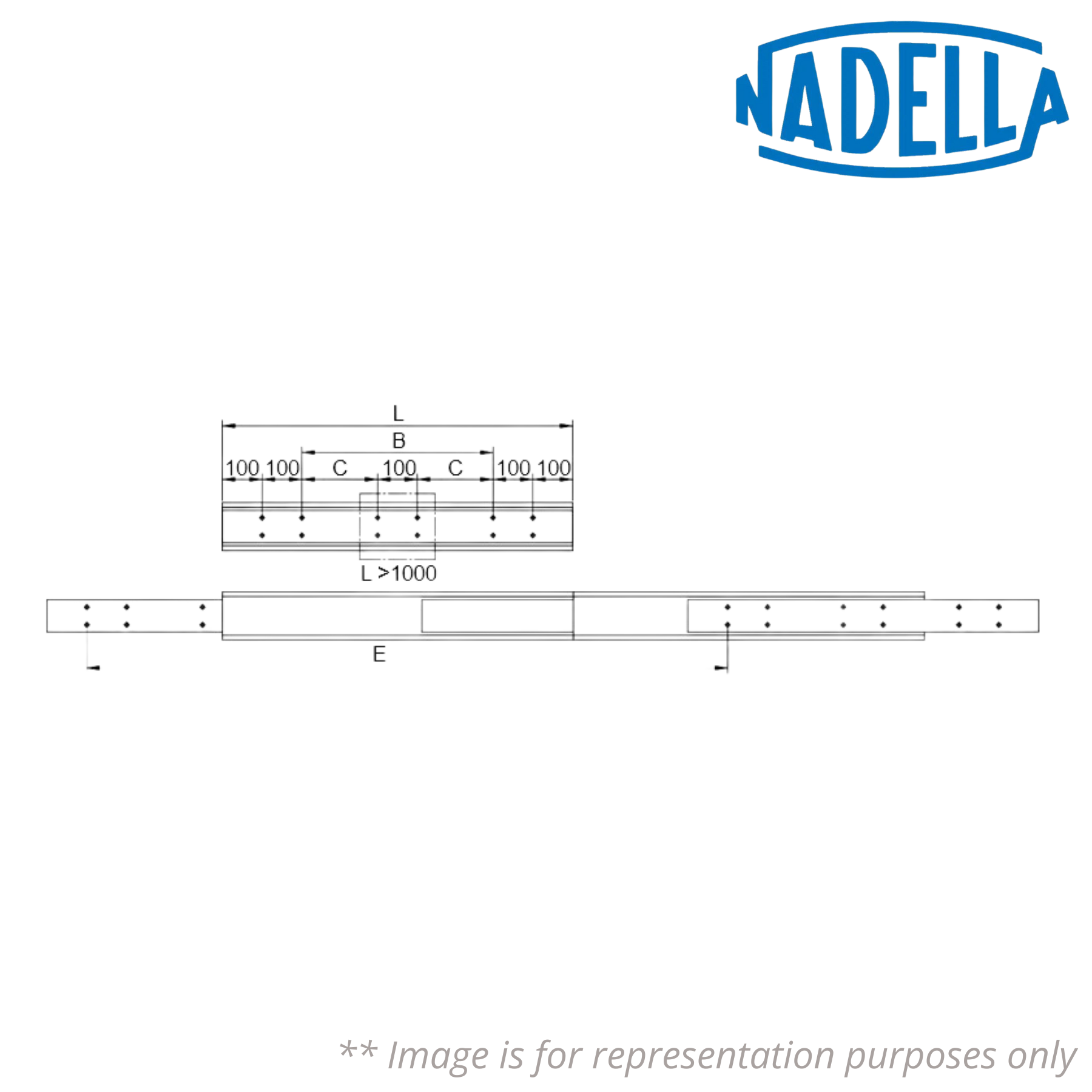

Principal Dimensions & Load Ratings (Metric):
Hole Separation (B) - 500 mm
Length (L) - 900 mm
Extension (E) - 1800 mm
Maximum Load Per pair - 5892 N
Net Weight - 31.5 kg
Description of Suffixes and Prefixes:
NTSU - Telescopic rails over extension
DS - 2 x I-beam (200 % Extension)
Other salient points to be noted:
• Material - Zinc-Plated Steel
• Availble on request - Aluminum, AISI 304 or 316 stainless steel

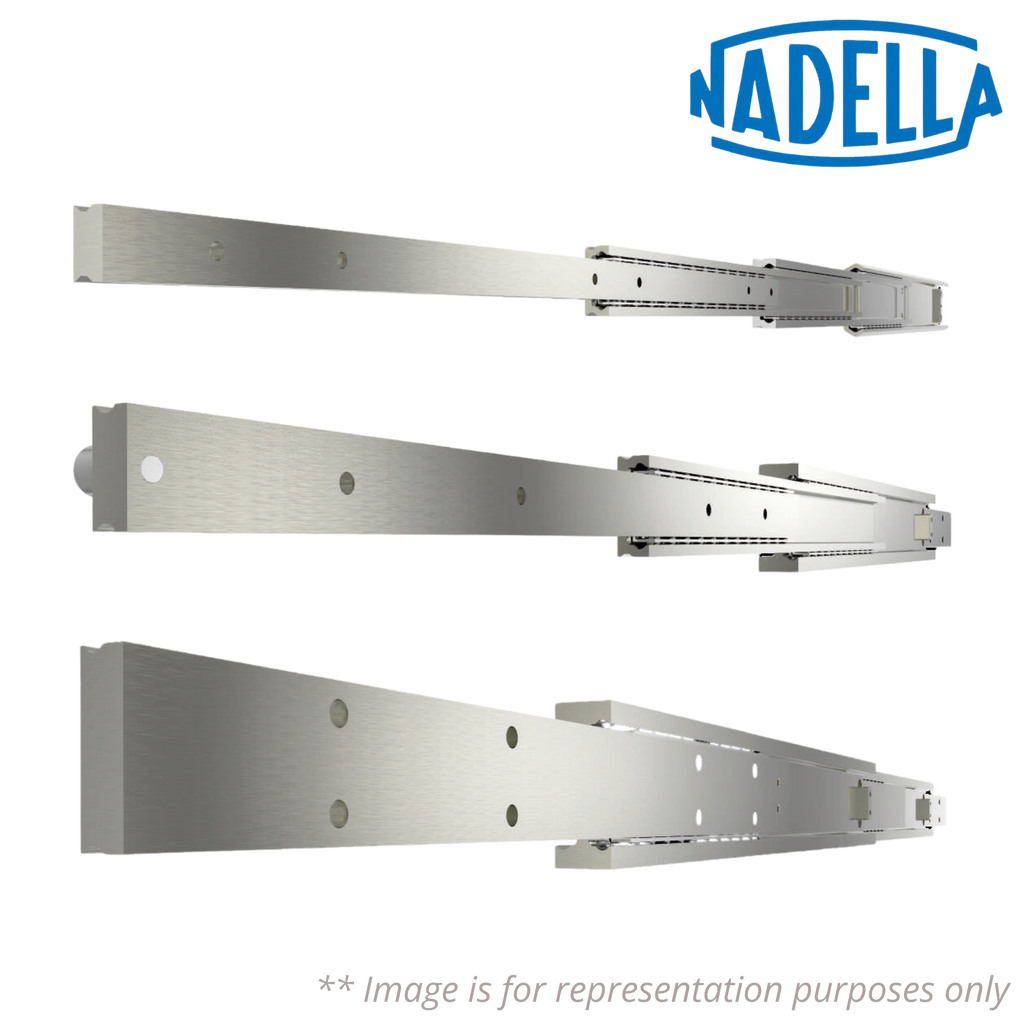

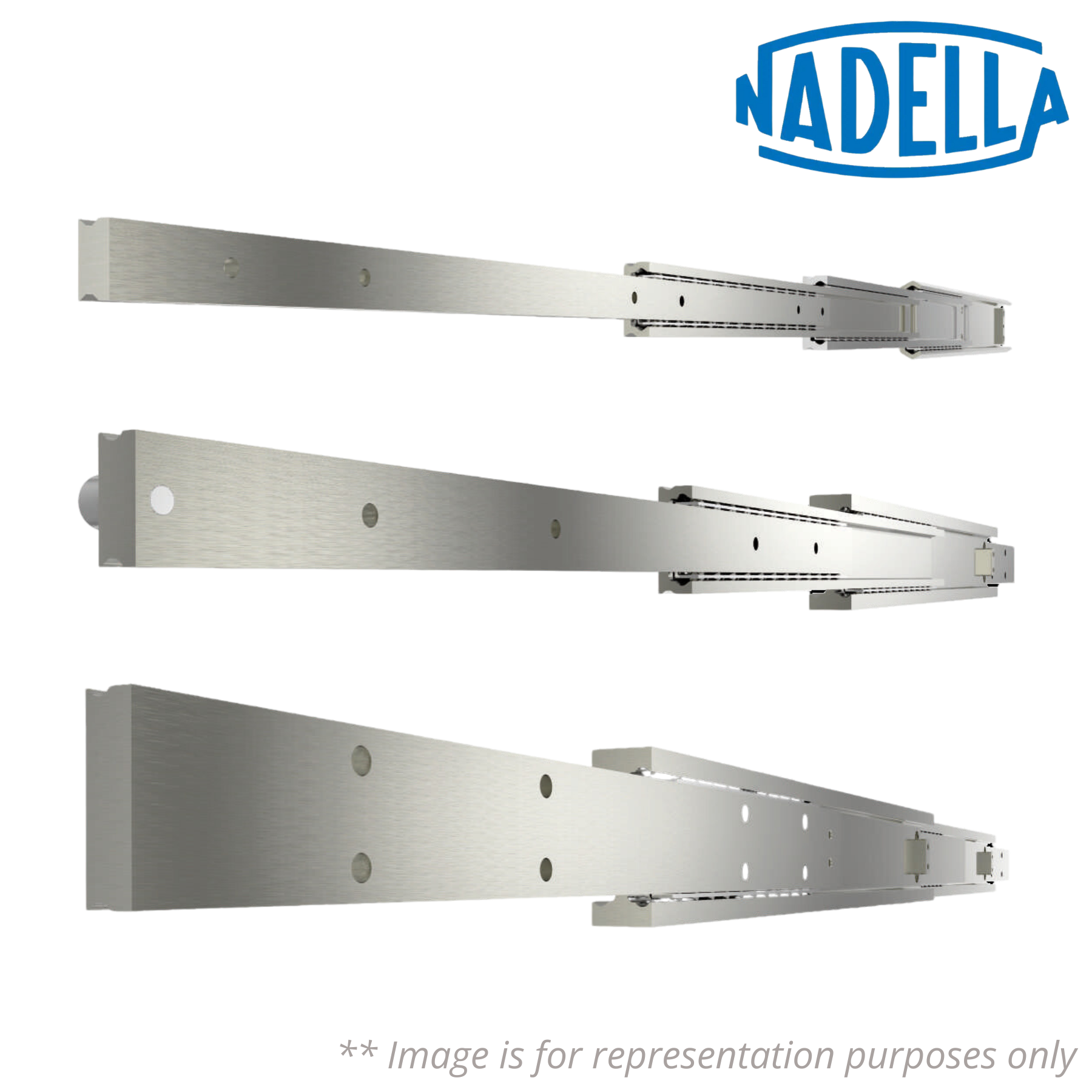

♦♦ Images are for representation purposes only
Item Number - NTSU80-79DS-900 NADELLA
Category - Telescopic Rail Over Extension
Principal Dimensions & Load Ratings (Metric):
Hole Separation (B) - 500 mm
Length (L) - 900 mm
Extension (E) - 1800 mm
Maximum Load Per pair - 5892 N
Net Weight - 31.5 kg
Description of Suffixes and Prefixes:
NTSU - Telescopic rails over extension
DS - 2 x I-beam (200 % Extension)
Other salient points to be noted:
• Material - Zinc-Plated Steel
• Availble on request - Aluminum, AISI 304 or 316 stainless steel
♦♦ Images are for representation purposes only
