Description
Brand - NADELLA
Item Number - NTSU80-79DS-1300 NADELLA
Category - Telescopic Rail Over Extension

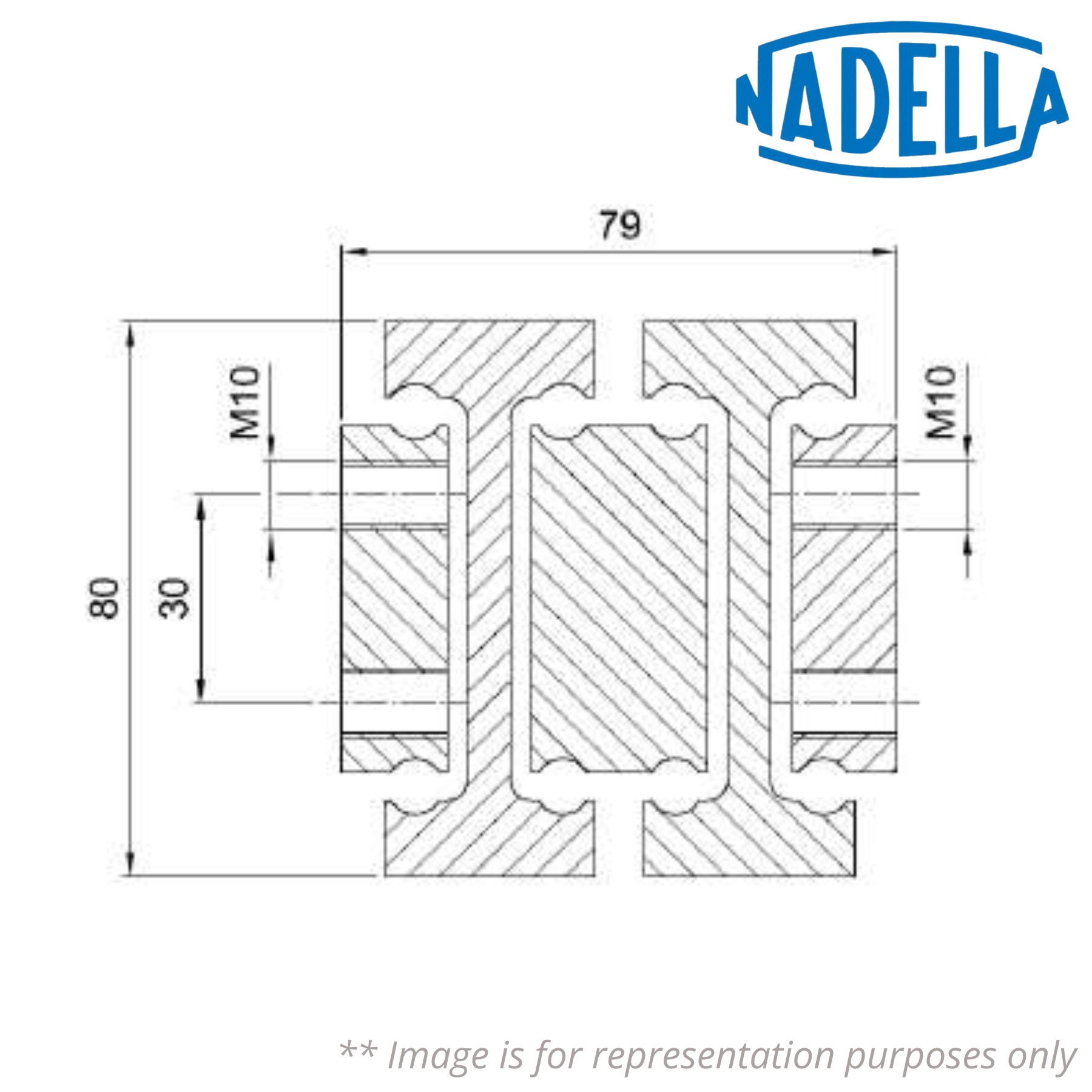

Principal Dimensions & Load Ratings (Metric):
Hole Separation (C) - 400 mm
Length (L) - 1300 mm
Extension (E) - 2600 mm
Maximum Load Per pair - 4524 N
Net Weight - 45.4 kg
Description of Suffixes and Prefixes:
NTSU - Telescopic rails over extension
DS - 2 x I-beam (200 % Extension)
Other salient points to be noted:
• Material - Zinc-Plated Steel
• Availble on request - Aluminum, AISI 304 or 316 stainless steel

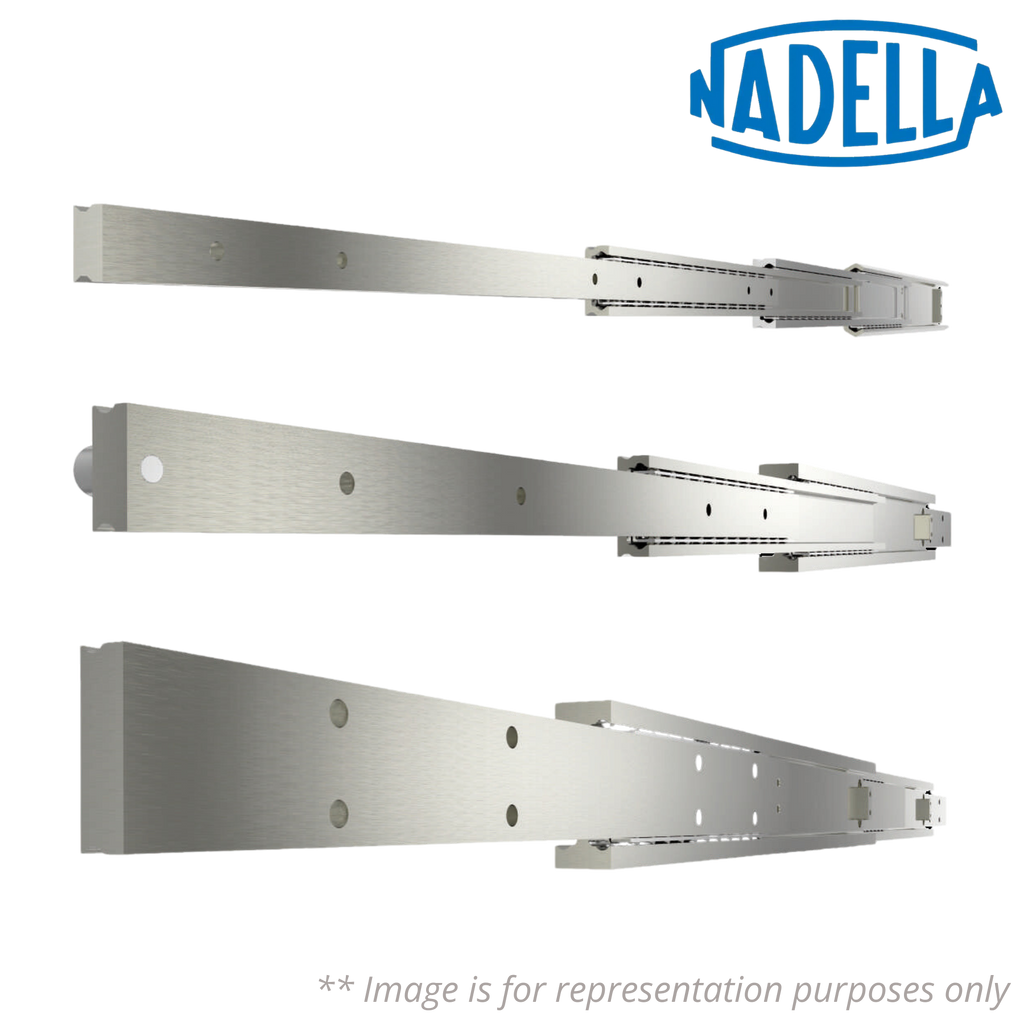

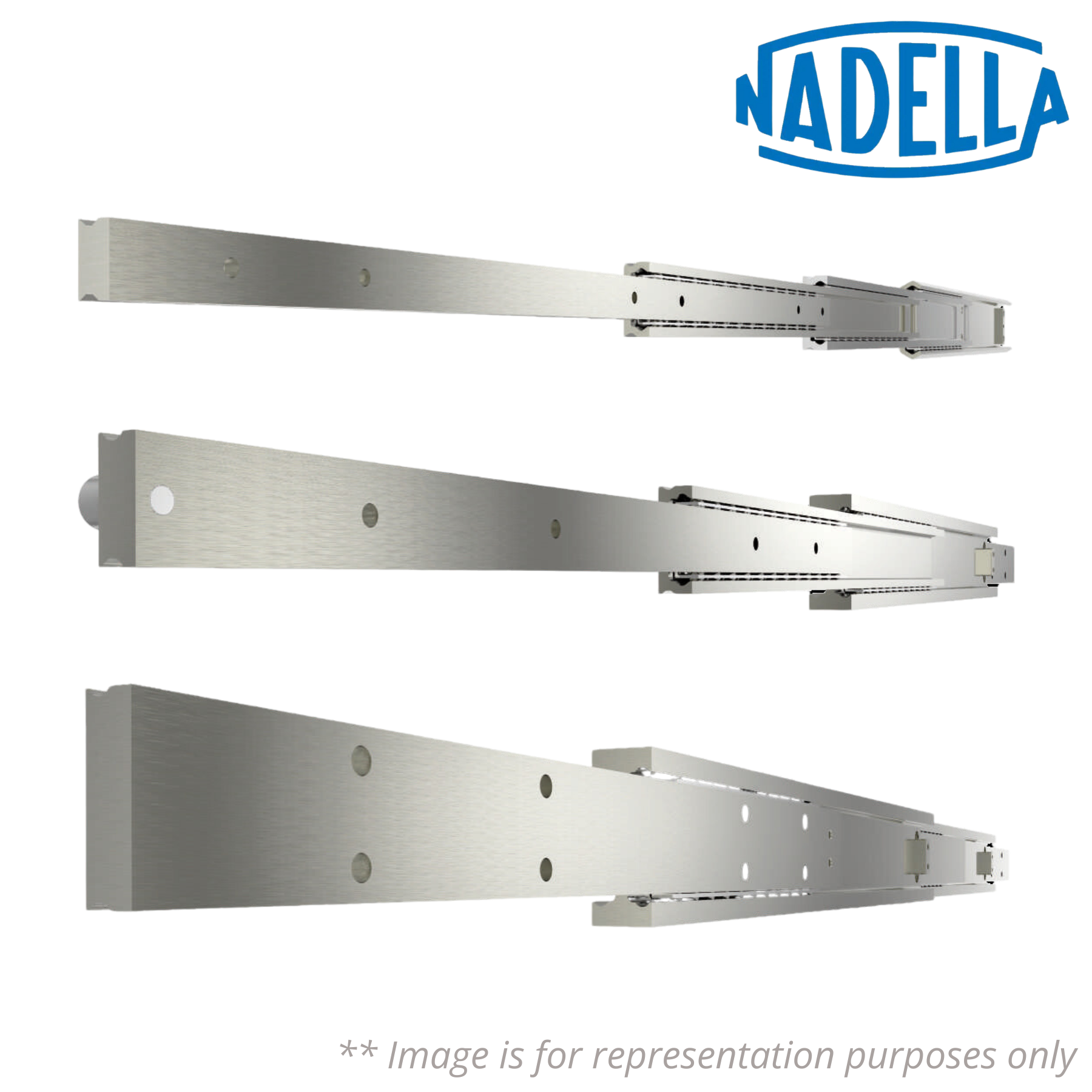

♦♦ Images are for representation purposes only
