Download Data Sheet
Description
Brand - NADELLA
Item Number - NTSU80-43-550 NADELLA
Category - Telescopic Rail Over Extension
Principal Dimensions & Load Ratings (Metric):
Hole Separation (B) - 150 mm
Length (L) - 550 mm
Extension (E) - 825 mm
Maximum Load Per pair - 3250 N
Net Weight - 10.4 kg
Description of Prefix:
NTSU - Telescopic rails over extension
Other salient points to be noted:
• Material - Zinc-Plated Steel
• Availble on request - Aluminum, AISI 304 or 316 stainless steel

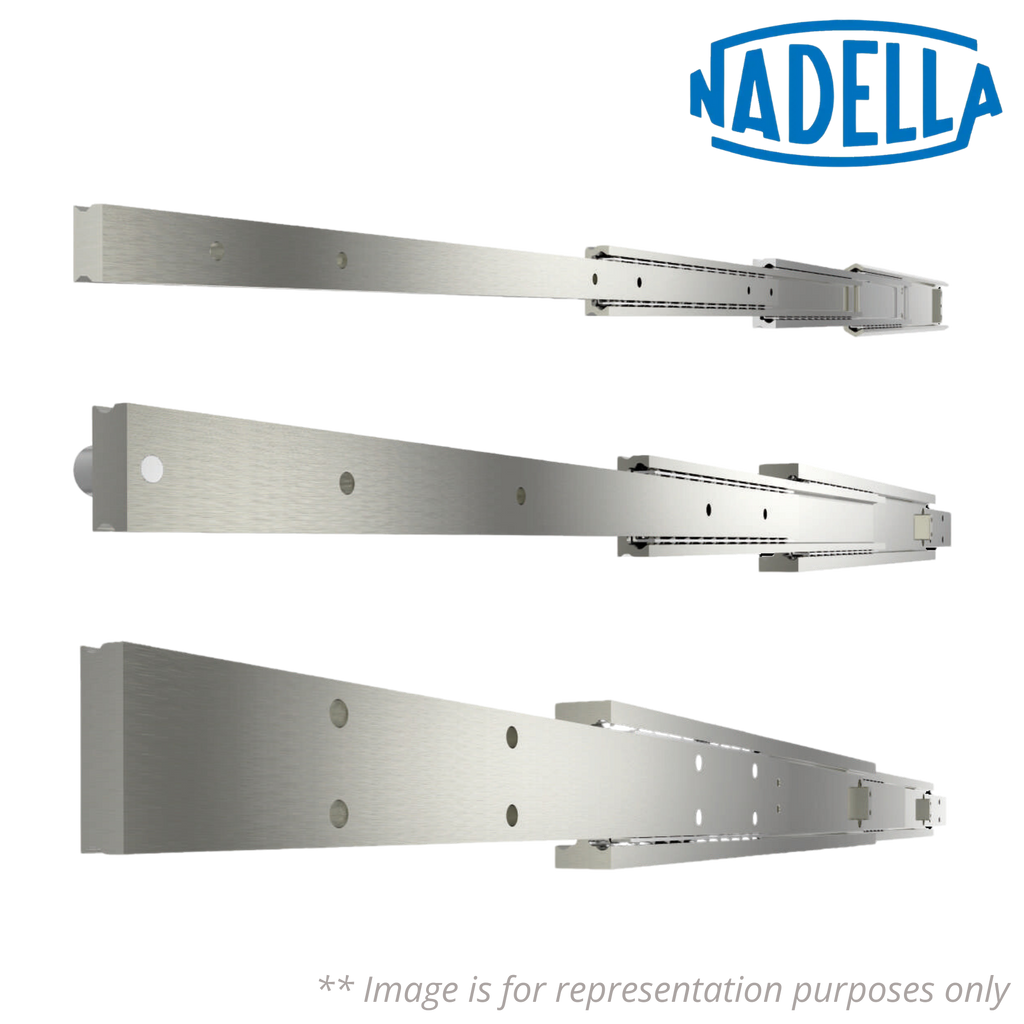

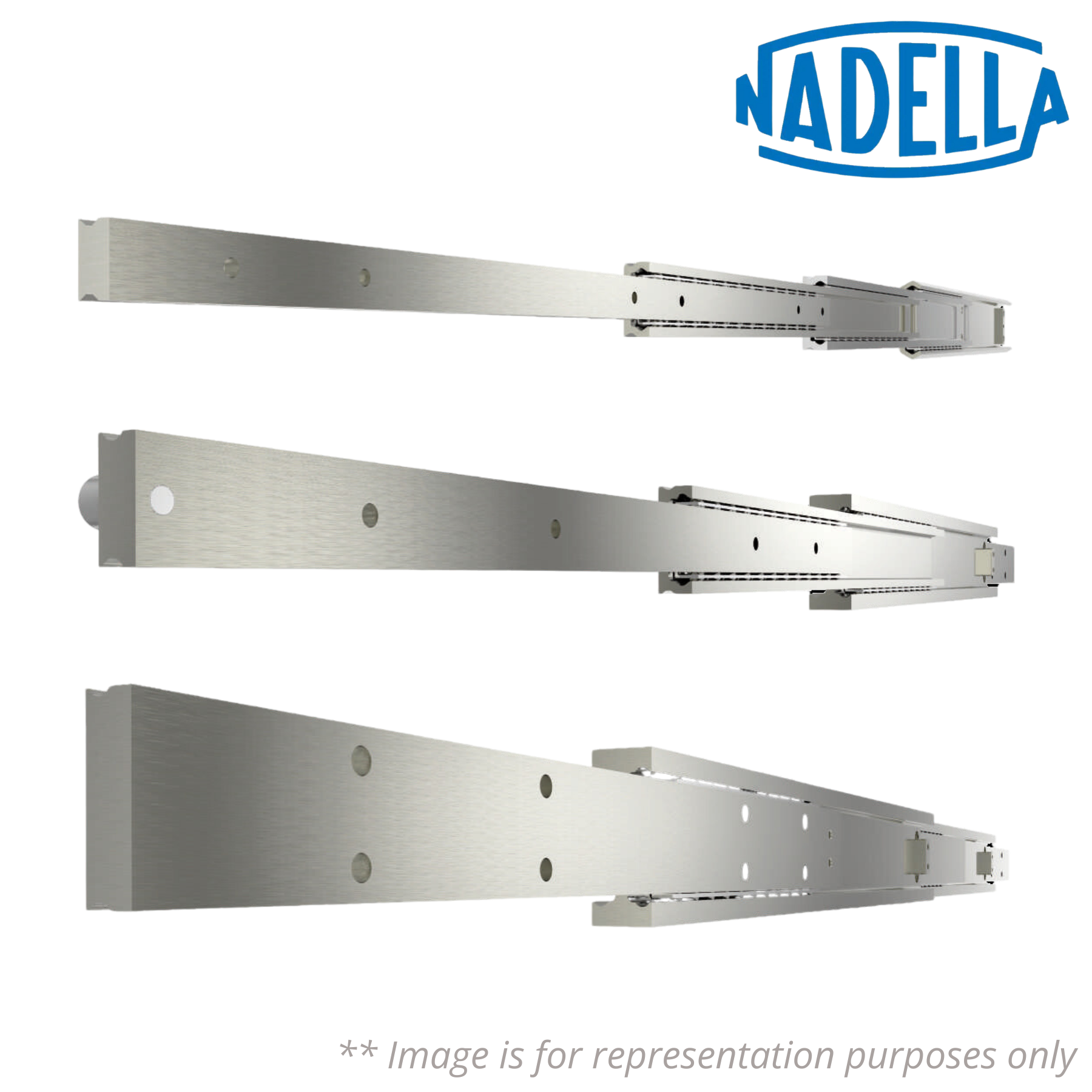

♦♦ Images are for representation purposes only
