Description
Brand - NADELLA
Item Number - NTSU80-43-500 NADELLA
Category - Telescopic Rail Over Extension

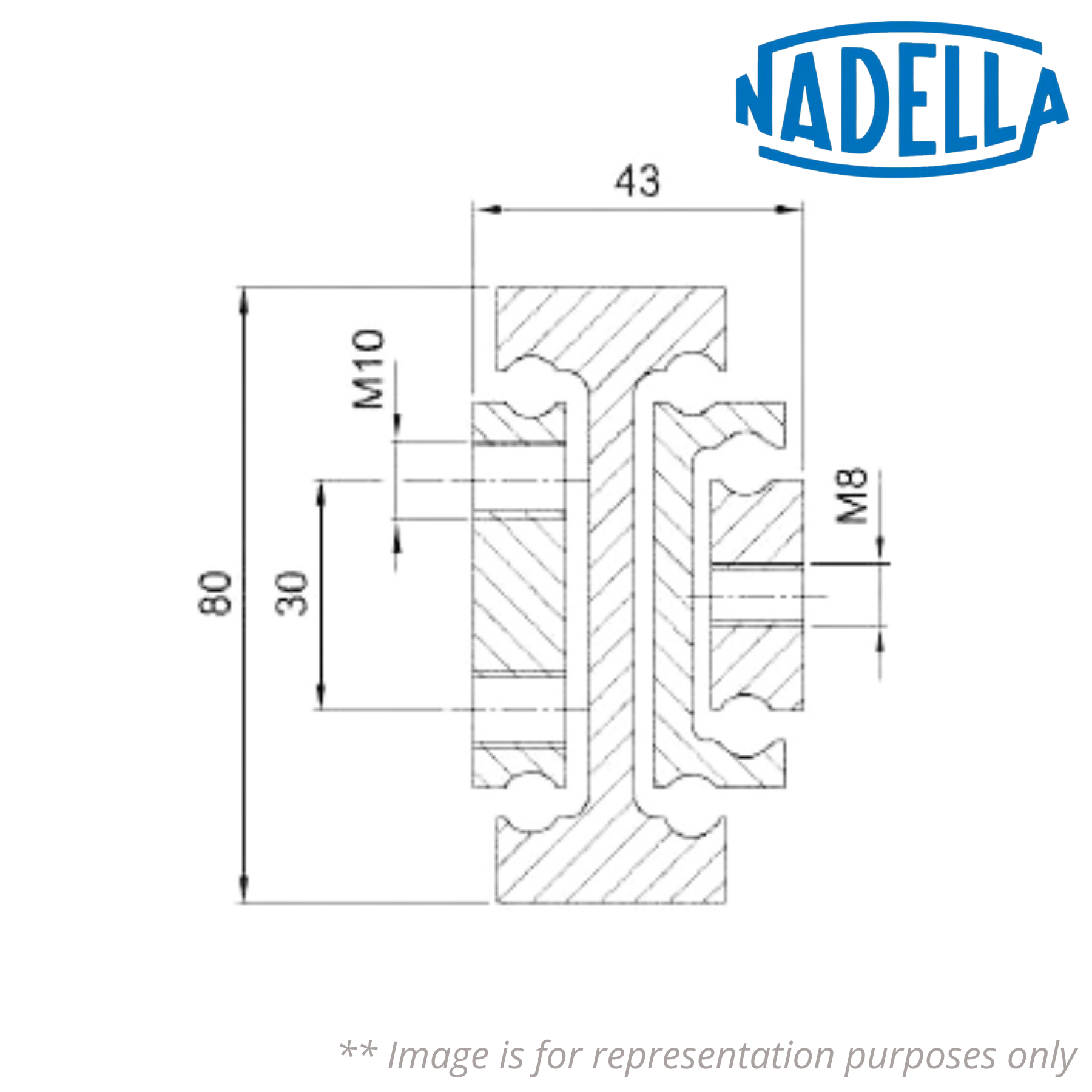

Principal Dimensions & Load Ratings (Metric):
Hole Separation (B) - 100 mm
Length (L) - 500 mm
Extension (E) - 750 mm
Maximum Load Per pair - 3200 N
Net Weight - 9.5 kg
Description of Prefix:
NTSU - Telescopic rails over extension
Other salient points to be noted:
• Material - Zinc-Plated Steel
• Availble on request - Aluminum, AISI 304 or 316 stainless steel
♦♦ Images are for representation purposes only
Item Number - NTSU80-43-500 NADELLA
Category - Telescopic Rail Over Extension
Principal Dimensions & Load Ratings (Metric):
Hole Separation (B) - 100 mm
Length (L) - 500 mm
Extension (E) - 750 mm
Maximum Load Per pair - 3200 N
Net Weight - 9.5 kg
Description of Prefix:
NTSU - Telescopic rails over extension
Other salient points to be noted:
• Material - Zinc-Plated Steel
• Availble on request - Aluminum, AISI 304 or 316 stainless steel
♦♦ Images are for representation purposes only
