Description
Brand - NADELLA
Item Number - NTSU50-60DS-850 NADELLA

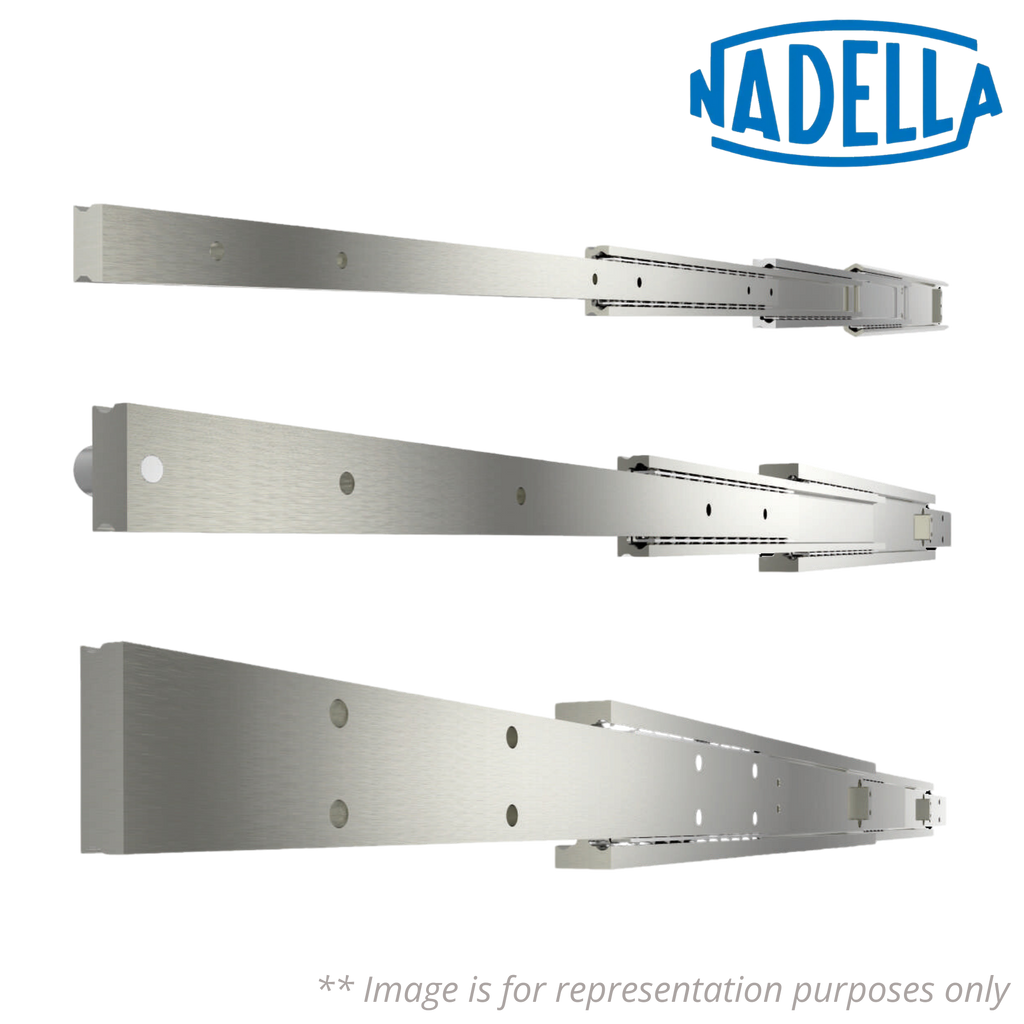

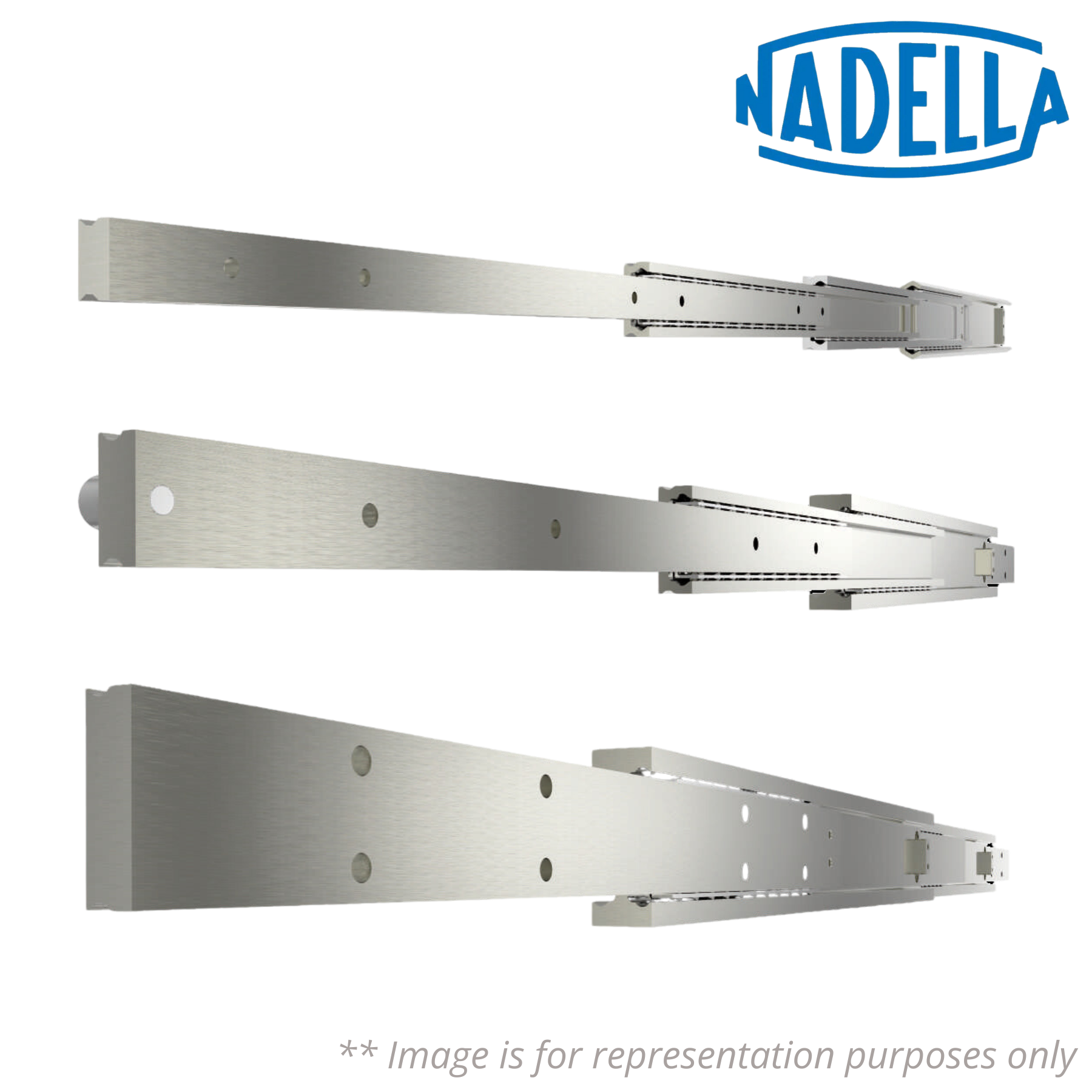

Category - Telescopic Rail Over Extension

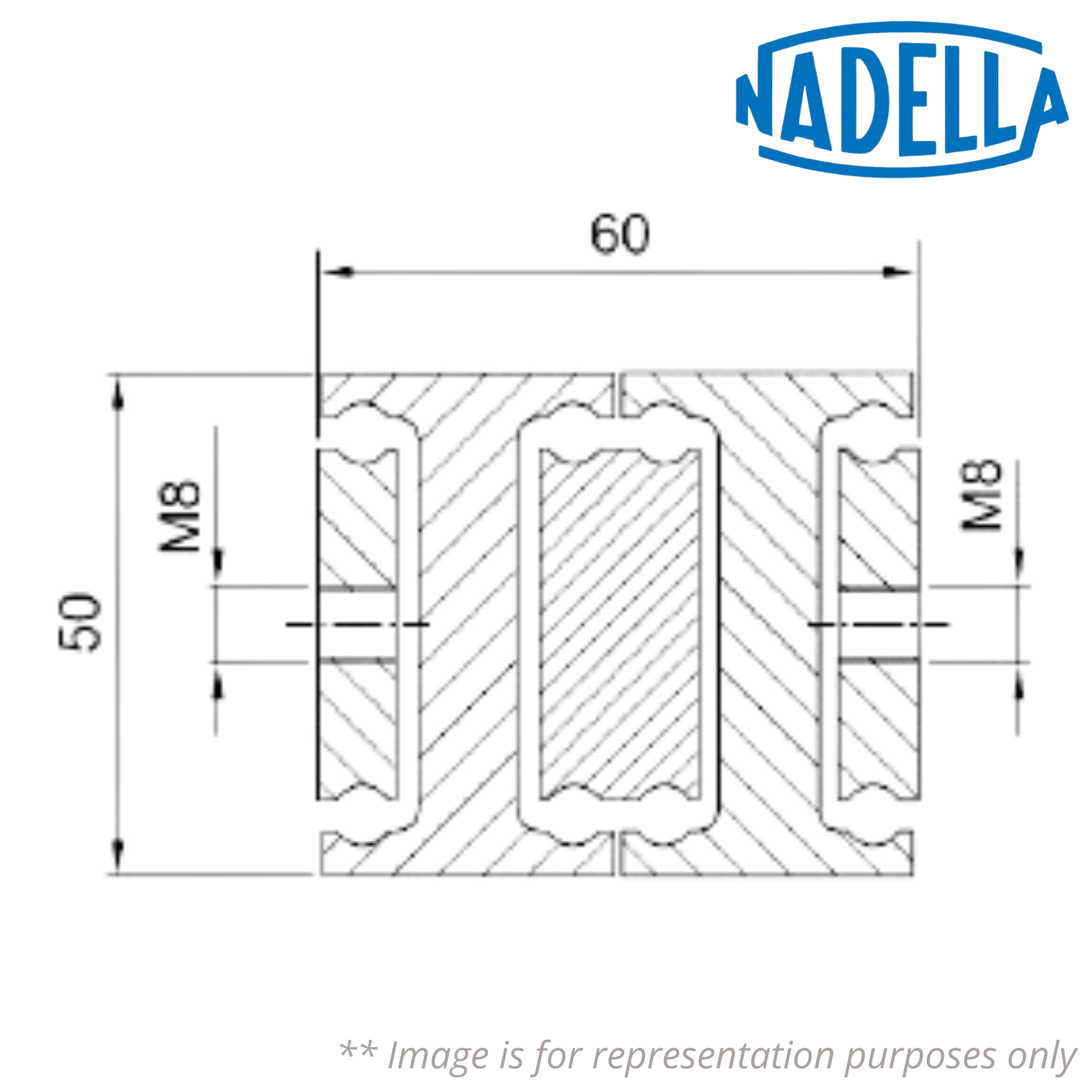

Principal Dimensions & Load Ratings (Metric):
Hole Separation (C) - 300 mm
Length (L) - 850 mm
Extension (E) - 1700 mm
Maximum Load Per pair - 1141 N
Net Weight - 9.3 kg
Description of Suffixes and Prefixes:
NTSU - Telescopic rails over extension
DS - 2 x I-beam (200 % Extension)
Other salient points to be noted:
• Material - Zinc-Plated Steel
• Availble on request - Aluminum, AISI 304 or 316 stainless steel
♦♦ Images are for representation purposes only
