Description
Brand - NADELLA
Item Number - NTSU100-51-1100 NADELLA
Category - Telescopic Rail Over Extension

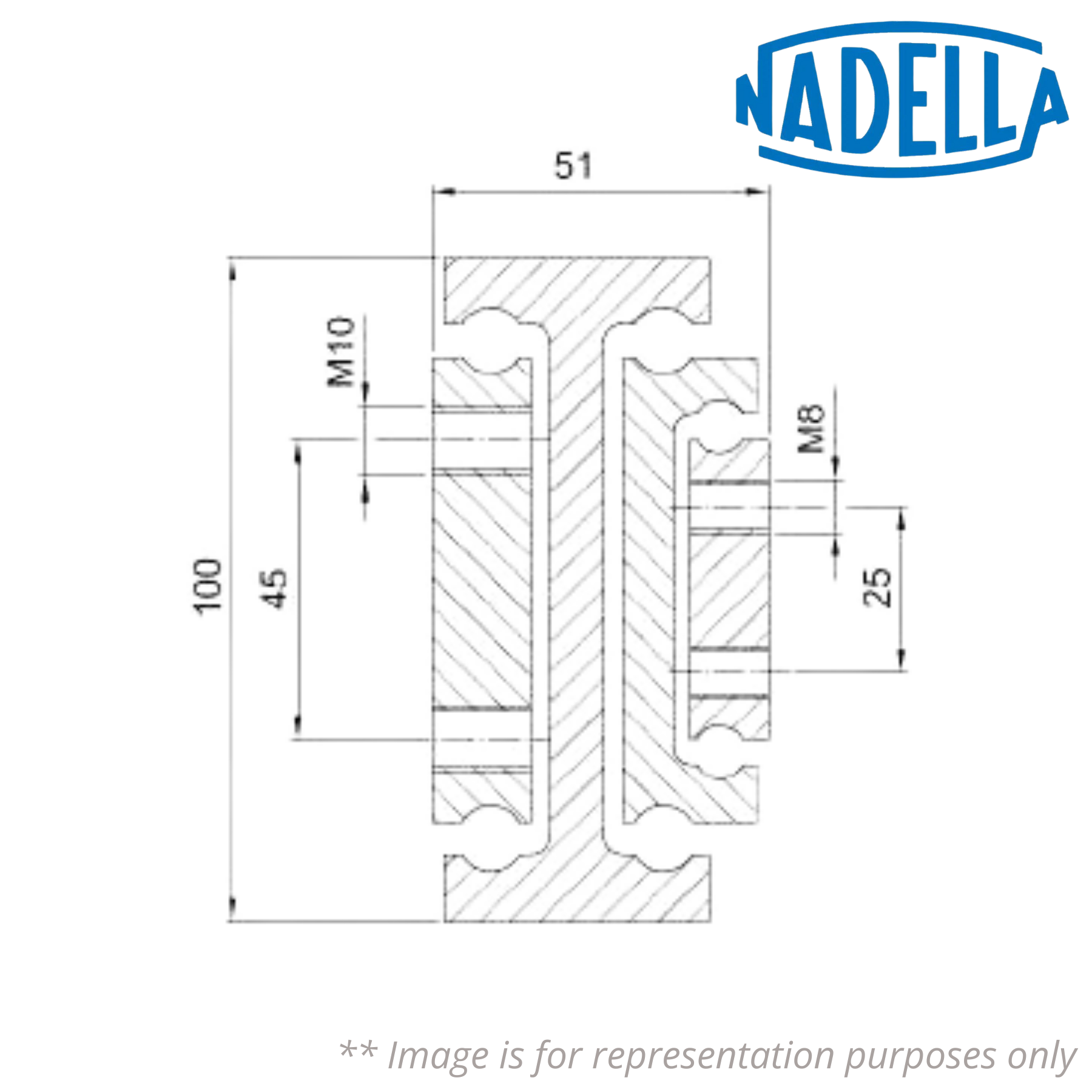

Principal Dimensions & Load Ratings (Metric):
Hole Separation (C) - 150 mm
Length (L) - 1100 mm
Extension (E) - 1650 mm
Maximum Load Per pair - 4100 N
Net Weight - 31.7 kg
Description of Prefix:
NTSU - Telescopic rails over extension
Other salient points to be noted:
• Material - Zinc-Plated Steel
• Availble on request - Aluminum, AISI 304 or 316 stainless steel
♦♦ Images are for representation purposes only
Item Number - NTSU100-51-1100 NADELLA
Category - Telescopic Rail Over Extension
Principal Dimensions & Load Ratings (Metric):
Hole Separation (C) - 150 mm
Length (L) - 1100 mm
Extension (E) - 1650 mm
Maximum Load Per pair - 4100 N
Net Weight - 31.7 kg
Description of Prefix:
NTSU - Telescopic rails over extension
Other salient points to be noted:
• Material - Zinc-Plated Steel
• Availble on request - Aluminum, AISI 304 or 316 stainless steel
♦♦ Images are for representation purposes only
