Description
Brand - NADELLA
Item Number - NTSF63H-450-1490 NADELLA
Category - Telescopic Rails Hardened Linear Guide Partial Extension
Principal Dimensions & Load Ratings (Metric):
Slider Length - 450 mm
Rail Length (L) - 1490 mm
Stroke Length - 960 mm
Slider Weight - 1.305 kg
Guide Weight - 9.0294 kg
Cage Weight - 1.302 kg
NTSF Weight - 11.6364 kg
Load Capacity for Pair of Rails (Cy) - 127591 N
Load Capacity for Pair of Rails (Cz) - 89342 N
Torque Capacity for Single Rail (Mx) - 840 Nm
Torque Capacities for Pair of Rails (My) - 3424 Nm
Torque Capacities for Pair of Rails (Mz) - 4890 Nm
Dynamic Load for Lifetime Calculation (C100) - 81448 N
Description of Prefix:
NTSF - Linear guides rails, with one or more sliders running inside a fixed length

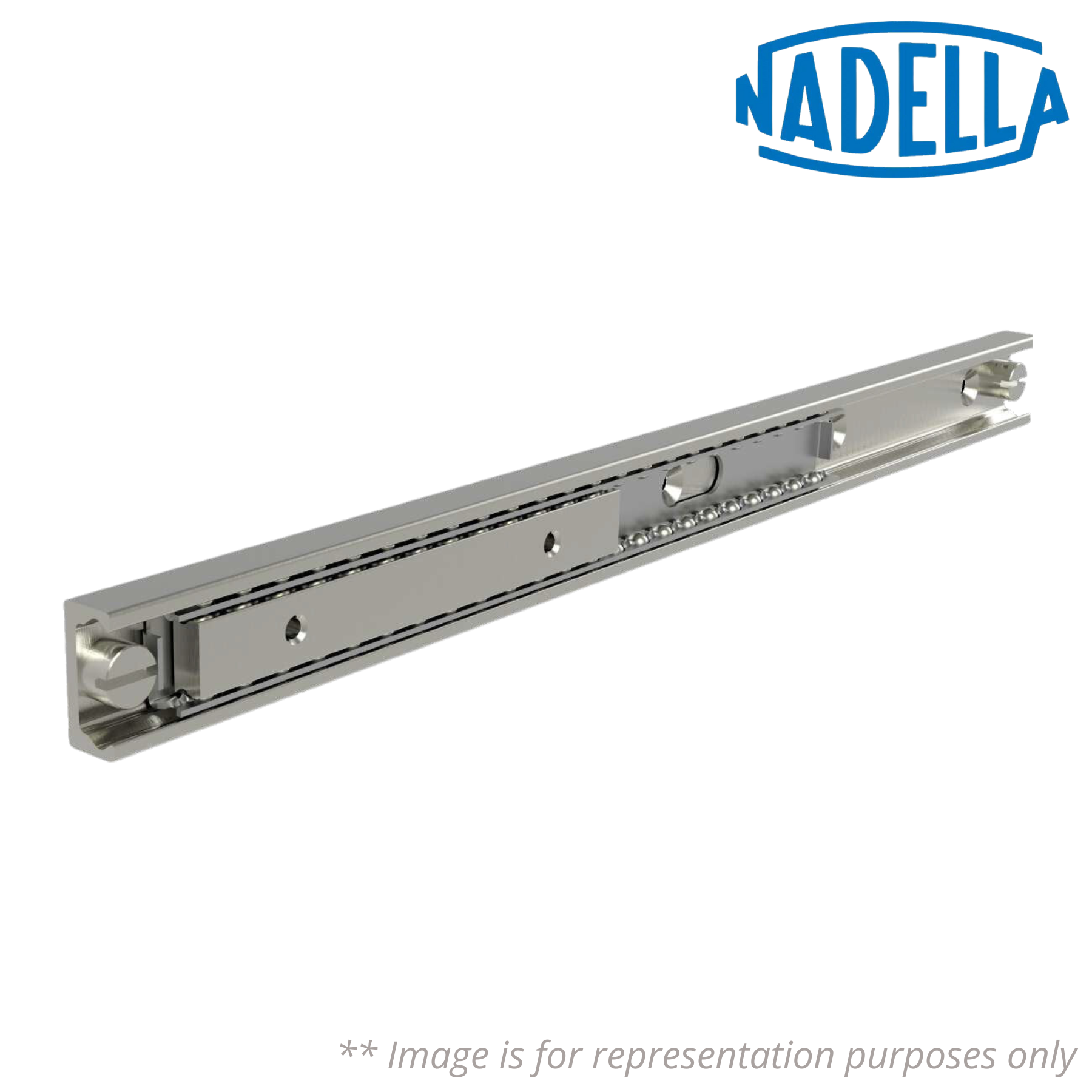

♦♦ Images are for representation purposes only
Item Number - NTSF63H-450-1490 NADELLA
Category - Telescopic Rails Hardened Linear Guide Partial Extension
Principal Dimensions & Load Ratings (Metric):
Slider Length - 450 mm
Rail Length (L) - 1490 mm
Stroke Length - 960 mm
Slider Weight - 1.305 kg
Guide Weight - 9.0294 kg
Cage Weight - 1.302 kg
NTSF Weight - 11.6364 kg
Load Capacity for Pair of Rails (Cy) - 127591 N
Load Capacity for Pair of Rails (Cz) - 89342 N
Torque Capacity for Single Rail (Mx) - 840 Nm
Torque Capacities for Pair of Rails (My) - 3424 Nm
Torque Capacities for Pair of Rails (Mz) - 4890 Nm
Dynamic Load for Lifetime Calculation (C100) - 81448 N
Description of Prefix:
NTSF - Linear guides rails, with one or more sliders running inside a fixed length
♦♦ Images are for representation purposes only
