Description
Brand - NADELLA
Item Number - NTSF63H-370-850 NADELLA
Category - Telescopic Rails Hardened Linear Guide Partial Extension
Principal Dimensions & Load Ratings (Metric):
Slider Length - 370 mm
Rail Length (L) - 850 mm
Stroke Length - 400 mm
Slider Weight - 1.073 kg
Guide Weight - 5.151 kg
Cage Weight - 0.798 kg
NTSF Weight - 7.022 kg
Load Capacity for Pair of Rails (Cy) - 104393 N
Load Capacity for Pair of Rails (Cz) - 73098 N
Torque Capacity for Single Rail (Mx) - 687 Nm
Torque Capacities for Pair of Rails (My) - 2314 Nm
Torque Capacities for Pair of Rails (Mz) - 3306 Nm
Dynamic Load for Lifetime Calculation (C100) - 70749 N
Description of Prefix:
NTSF - Linear guides rails, with one or more sliders running inside a fixed length

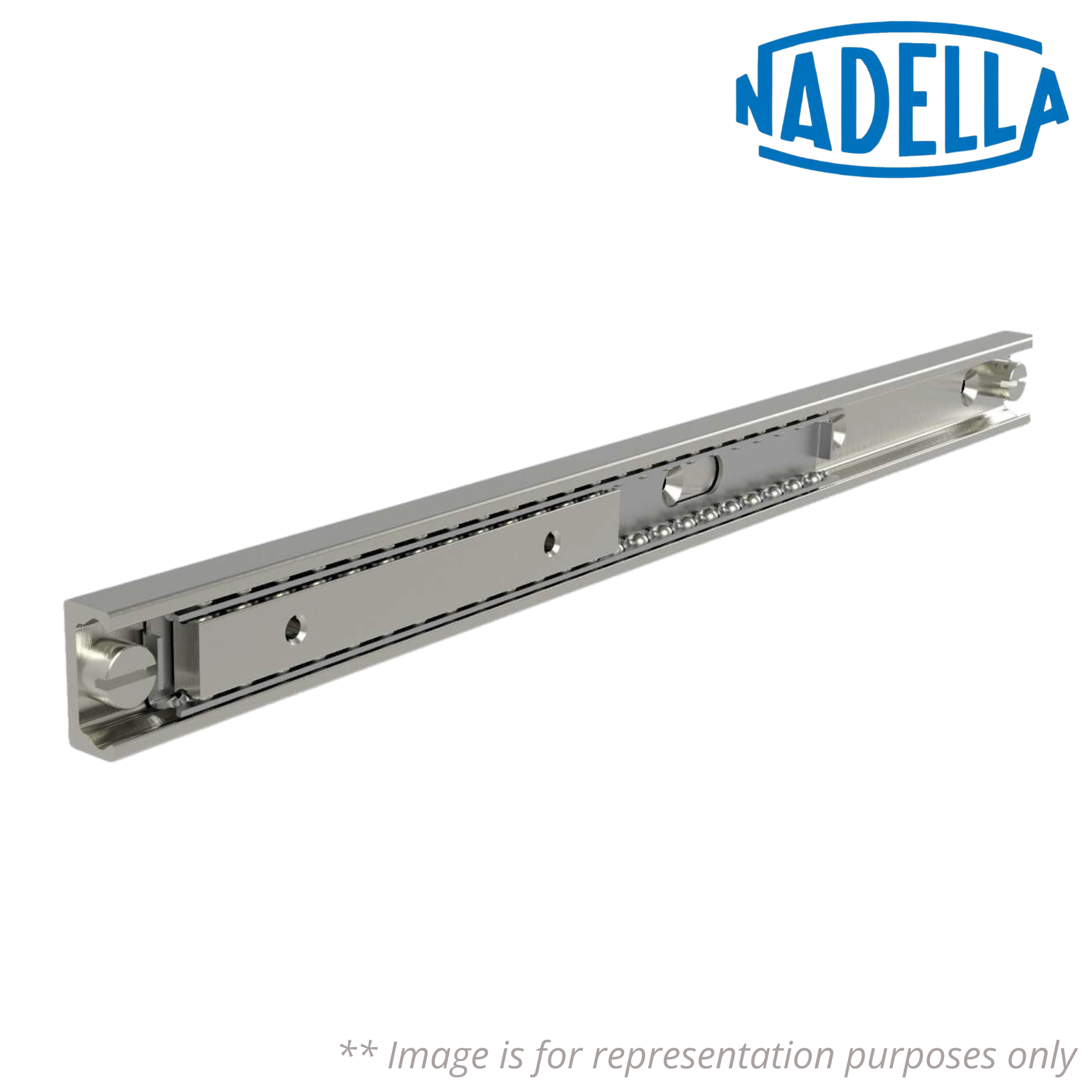

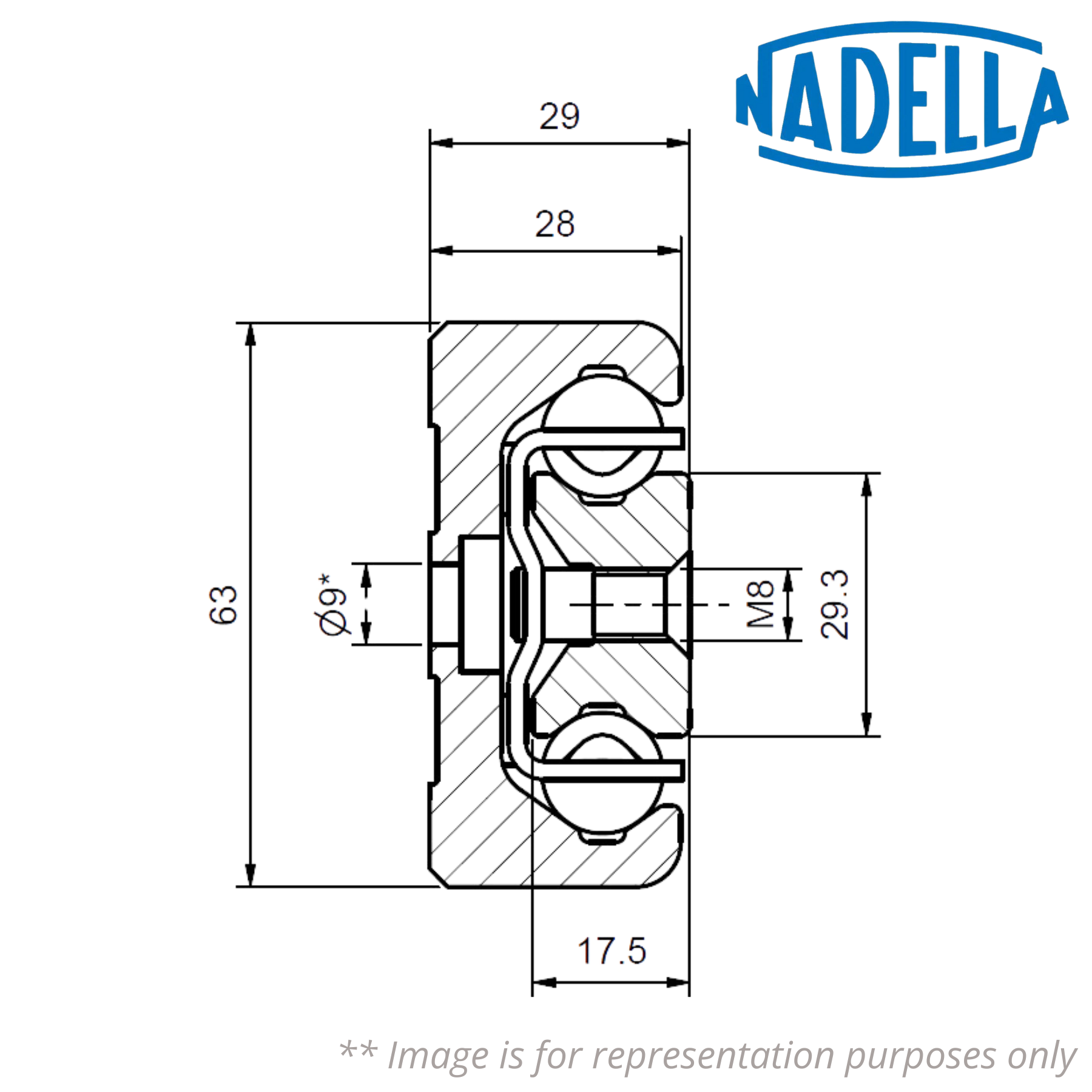

♦♦ Images are for representation purposes only
Item Number - NTSF63H-370-850 NADELLA
Category - Telescopic Rails Hardened Linear Guide Partial Extension
Principal Dimensions & Load Ratings (Metric):
Slider Length - 370 mm
Rail Length (L) - 850 mm
Stroke Length - 400 mm
Slider Weight - 1.073 kg
Guide Weight - 5.151 kg
Cage Weight - 0.798 kg
NTSF Weight - 7.022 kg
Load Capacity for Pair of Rails (Cy) - 104393 N
Load Capacity for Pair of Rails (Cz) - 73098 N
Torque Capacity for Single Rail (Mx) - 687 Nm
Torque Capacities for Pair of Rails (My) - 2314 Nm
Torque Capacities for Pair of Rails (Mz) - 3306 Nm
Dynamic Load for Lifetime Calculation (C100) - 70749 N
Description of Prefix:
NTSF - Linear guides rails, with one or more sliders running inside a fixed length
♦♦ Images are for representation purposes only
