Description
Brand - NADELLA
Item Number - NTSF63H-290-1170 NADELLA
Category - Telescopic Rails Hardened Linear Guide Partial Extension
Principal Dimensions & Load Ratings (Metric):
Slider Length - 290 mm
Rail Length (L) - 1170 mm
Stroke Length - 800 mm
Slider Weight - 0.841 kg
Guide Weight - 7.0902 kg
Cage Weight - 0.966 kg
NTSF Weight - 8.8972 kg
Load Capacity for Pair of Rails (Cy) - 81194 N
Load Capacity for Pair of Rails (Cz) - 56854 N
Torque Capacity for Single Rail (Mx) - 534 Nm
Torque Capacities for Pair of Rails (My) - 1422 Nm
Torque Capacities for Pair of Rails (Mz) - 2030 Nm
Dynamic Load for Lifetime Calculation (C100) - 59302 N
Description of Prefix:
NTSF - Linear guides rails, with one or more sliders running inside a fixed length

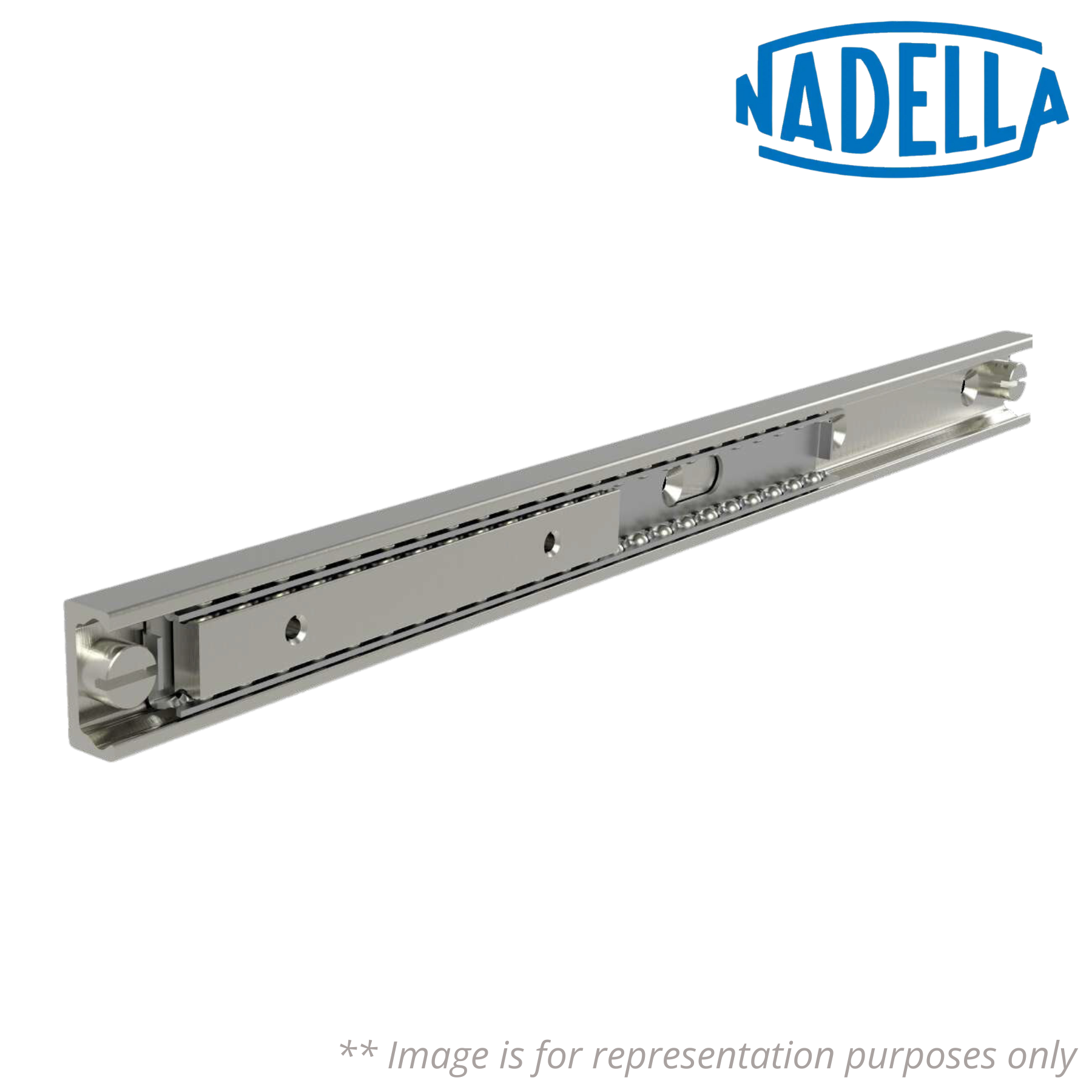

♦♦ Images are for representation purposes only
Item Number - NTSF63H-290-1170 NADELLA
Category - Telescopic Rails Hardened Linear Guide Partial Extension
Principal Dimensions & Load Ratings (Metric):
Slider Length - 290 mm
Rail Length (L) - 1170 mm
Stroke Length - 800 mm
Slider Weight - 0.841 kg
Guide Weight - 7.0902 kg
Cage Weight - 0.966 kg
NTSF Weight - 8.8972 kg
Load Capacity for Pair of Rails (Cy) - 81194 N
Load Capacity for Pair of Rails (Cz) - 56854 N
Torque Capacity for Single Rail (Mx) - 534 Nm
Torque Capacities for Pair of Rails (My) - 1422 Nm
Torque Capacities for Pair of Rails (Mz) - 2030 Nm
Dynamic Load for Lifetime Calculation (C100) - 59302 N
Description of Prefix:
NTSF - Linear guides rails, with one or more sliders running inside a fixed length
♦♦ Images are for representation purposes only
