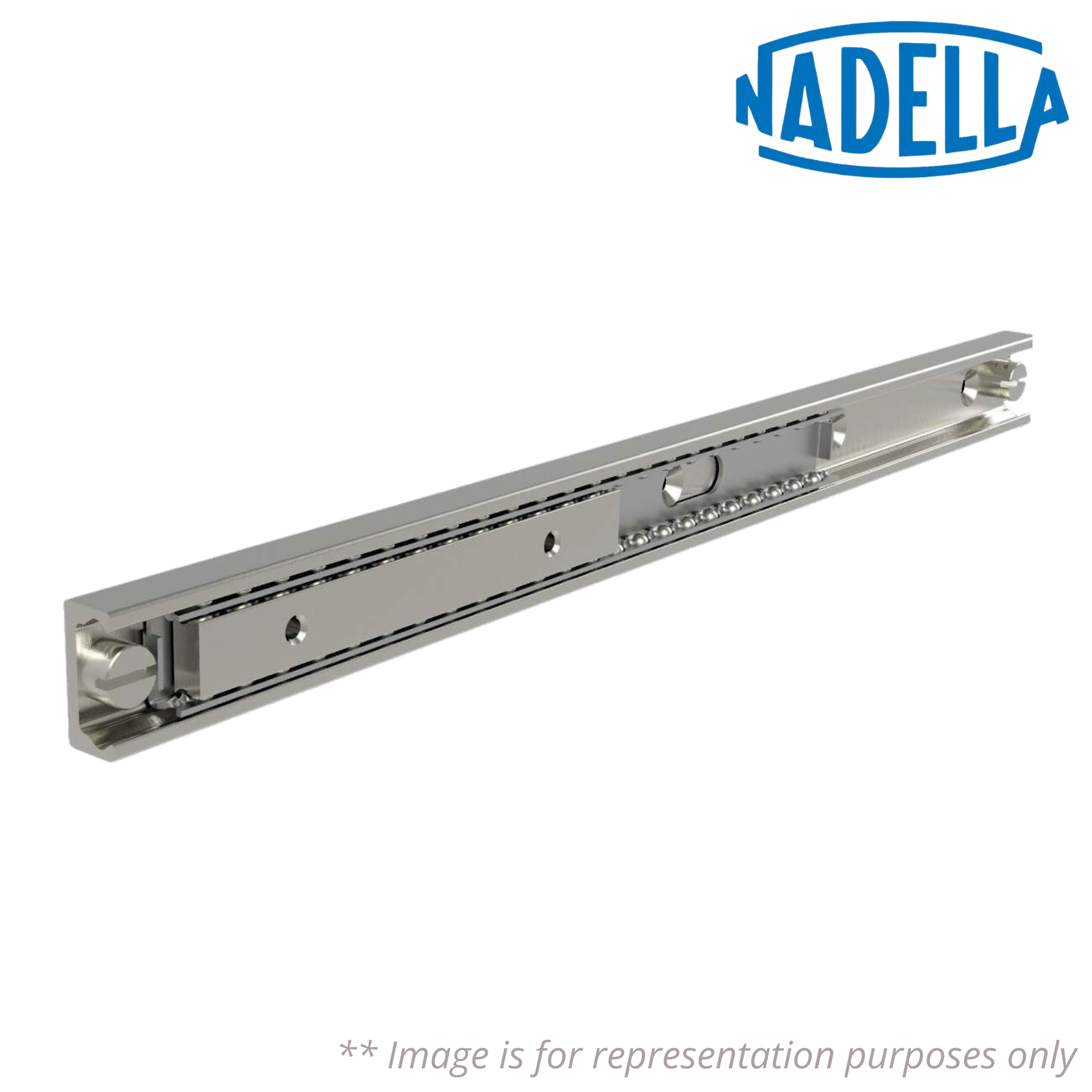

NTSF63H-210-690 NADELLA


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - NADELLA
Item Number - NTSF63H-210-690 NADELLA
Category - Telescopic Rails Hardened Linear Guide Partial Extension
Slider Length (mm) - 210
Rail Length (L) mm - 690
Stroke Length (mm) - 400
Slider Weight (kg) - 0.609
Guide Weight (kg) - 4.1814
Cage Weight (kg) - 0.574
NTSF Weight (kg) - 5.3644
Load Capacity for Pair of Rails (Cy) N - 57996
Load Capacity for Pair of Rails (Cz) N - 40610
Torque Capacity for Single Rail (Mx) Nm - 382
Torque Capacities for Pair of Rails (My) Nm - 744
Torque Capacities for Pair of Rails (Mz) Nm - 1064
Dynamic Load for Lifetime Calculation (C100) N - 46809
