Description
Brand - NADELLA
Item Number - NTSF63H-130-690 NADELLA
Category - Telescopic Rails Hardened Linear Guide Partial Extension
Principal Dimensions & Load Ratings (Metric):
Slider Length - 130 mm
Rail Length (L) - 690 mm
Stroke Length - 480 mm
Slider Weight - 0.377 kg
Guide Weight - 4.1814 kg
Cage Weight - 0.518 kg
NTSF Weight - 5.0764 kg
Load Capacity for Pair of Rails (Cy) - 34798 N
Load Capacity for Pair of Rails (Cz) - 24366 N
Torque Capacity for Single Rail (Mx) - 229 Nm
Torque Capacities for Pair of Rails (My) - 284 Nm
Torque Capacities for Pair of Rails (Mz) - 406 Nm
Dynamic Load for Lifetime Calculation (C100) - 32653 N
Description of Prefix:
NTSF - Linear guides rails, with one or more sliders running inside a fixed length

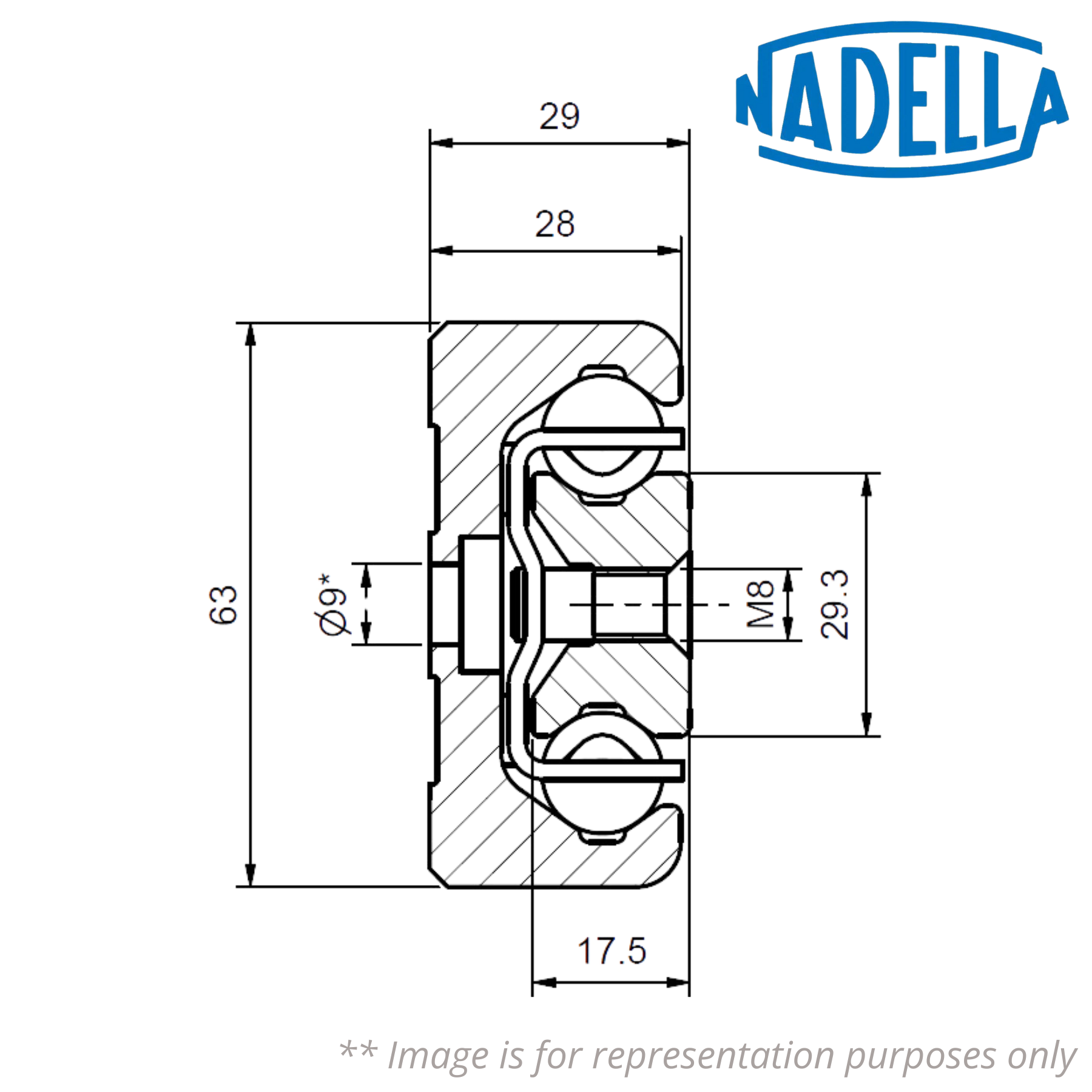

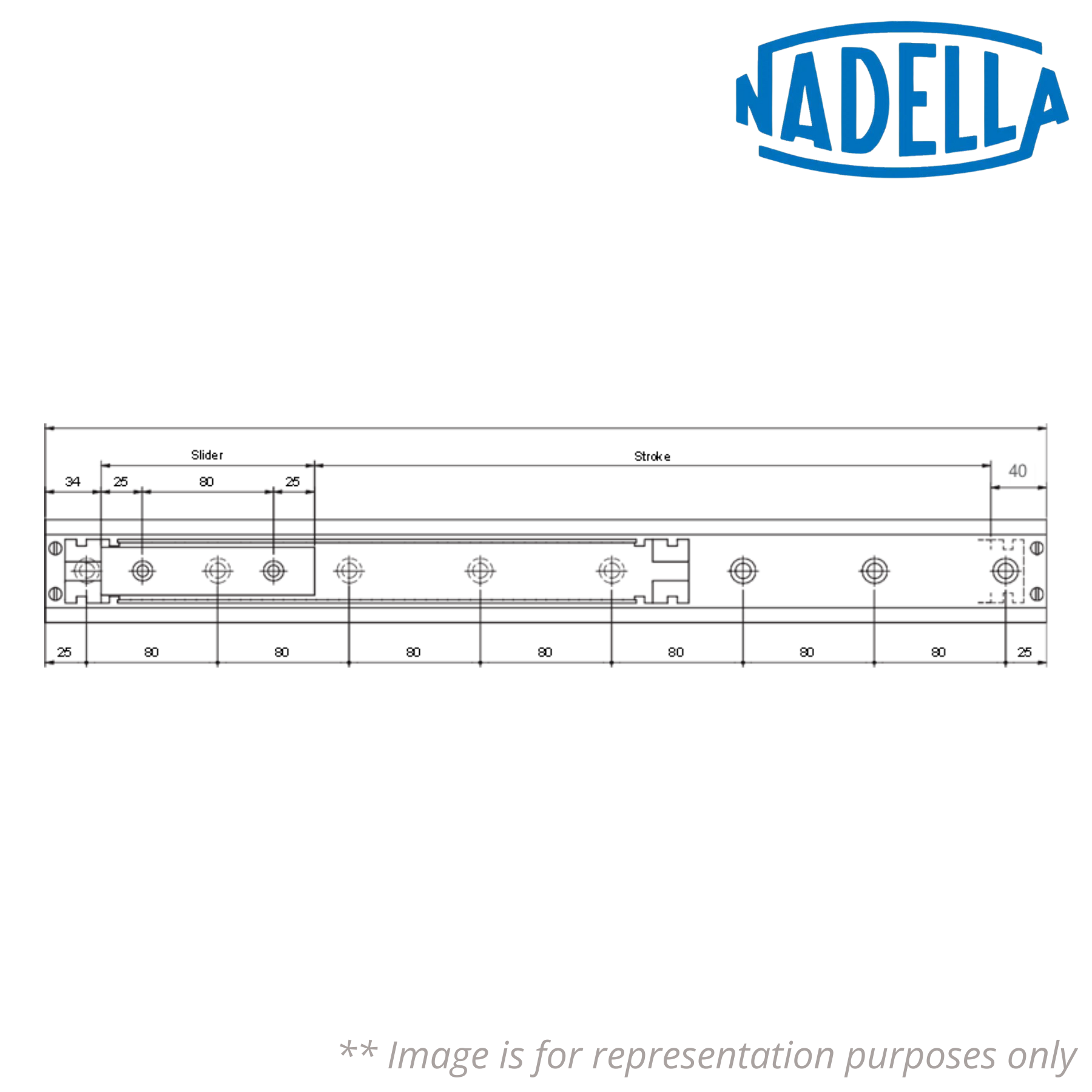

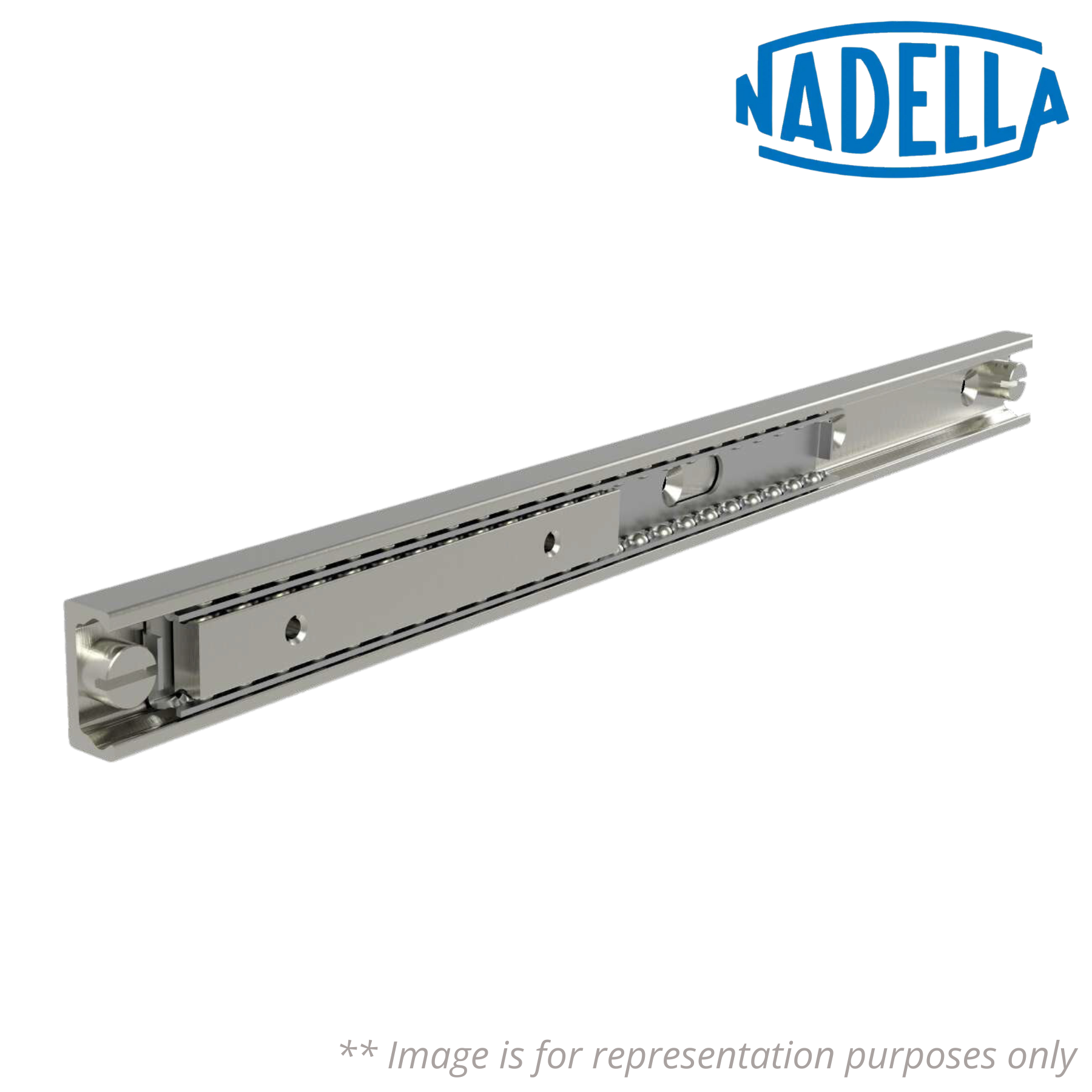

♦♦ Images are for representation purposes only
Item Number - NTSF63H-130-690 NADELLA
Category - Telescopic Rails Hardened Linear Guide Partial Extension
Principal Dimensions & Load Ratings (Metric):
Slider Length - 130 mm
Rail Length (L) - 690 mm
Stroke Length - 480 mm
Slider Weight - 0.377 kg
Guide Weight - 4.1814 kg
Cage Weight - 0.518 kg
NTSF Weight - 5.0764 kg
Load Capacity for Pair of Rails (Cy) - 34798 N
Load Capacity for Pair of Rails (Cz) - 24366 N
Torque Capacity for Single Rail (Mx) - 229 Nm
Torque Capacities for Pair of Rails (My) - 284 Nm
Torque Capacities for Pair of Rails (Mz) - 406 Nm
Dynamic Load for Lifetime Calculation (C100) - 32653 N
Description of Prefix:
NTSF - Linear guides rails, with one or more sliders running inside a fixed length
♦♦ Images are for representation purposes only
