Description
Brand - NADELLA
Item Number - NTSF43H-610-1970 NADELLA
Category - Telescopic Rails Hardened Linear Guide Partial Extension
Principal Dimensions & Load Ratings (Metric):
Slider Length - 610 mm
Rail Length (L) - 1970 mm
Stroke Length - 1320 mm
Slider Weight - 1.281 kg
Guide Weight - 5.1417 kg
Cage Weight - 0.9779 kg
NTSF Weight - 7.4006 kg
Load Capacity for Pair of Rails (Cy) - 115464 N
Load Capacity for Pair of Rails (Cz) - 80848 N
Torque Capacity for Single Rail (Mx) - 529 Nm
Torque Capacities for Pair of Rails (My) - 5524 Nm
Torque Capacities for Pair of Rails (Mz) - 7890 Nm
Dynamic Load for Lifetime Calculation (C100) - 123860 N
Description of Prefix:
NTSF - Linear guides rails, with one or more sliders running inside a fixed length

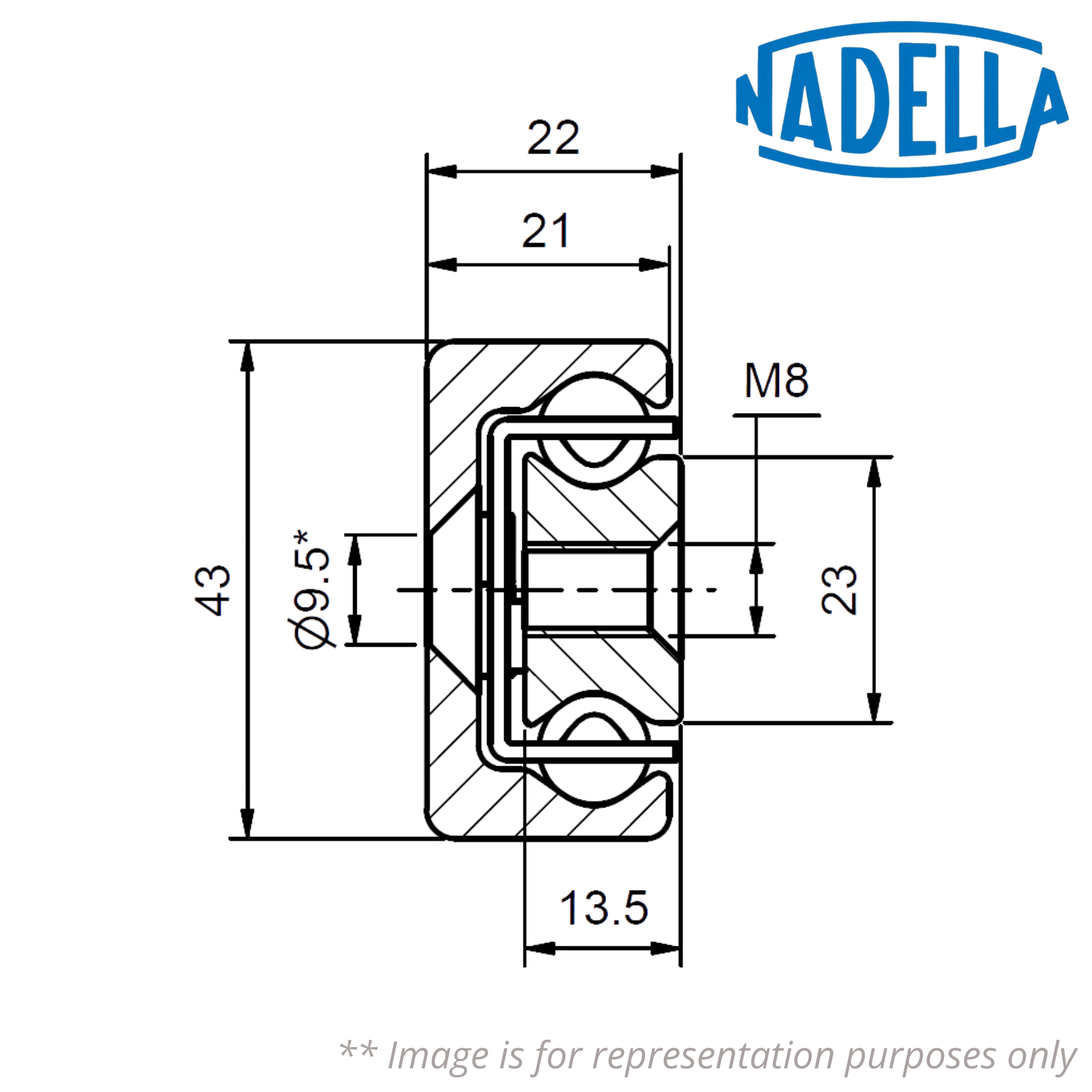

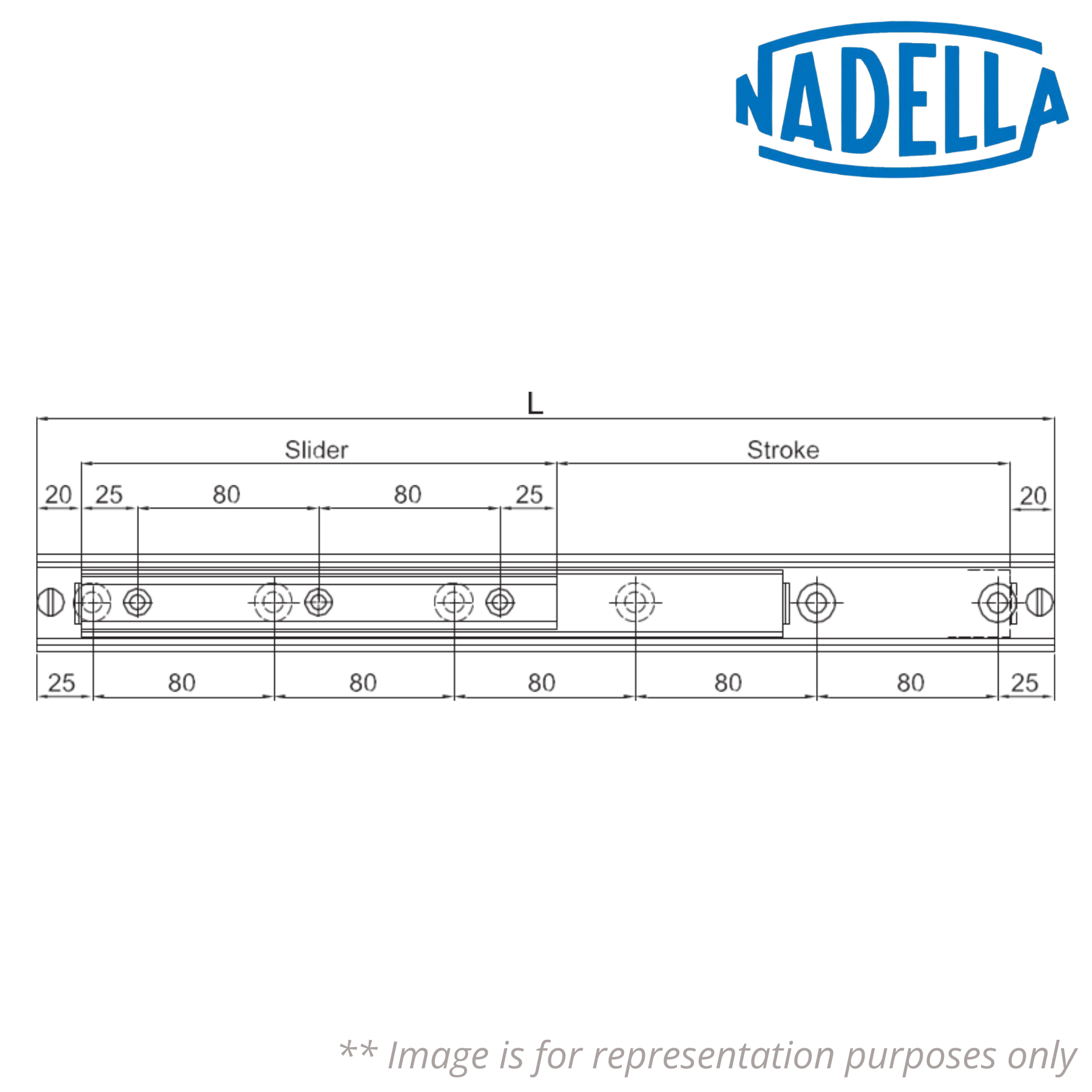

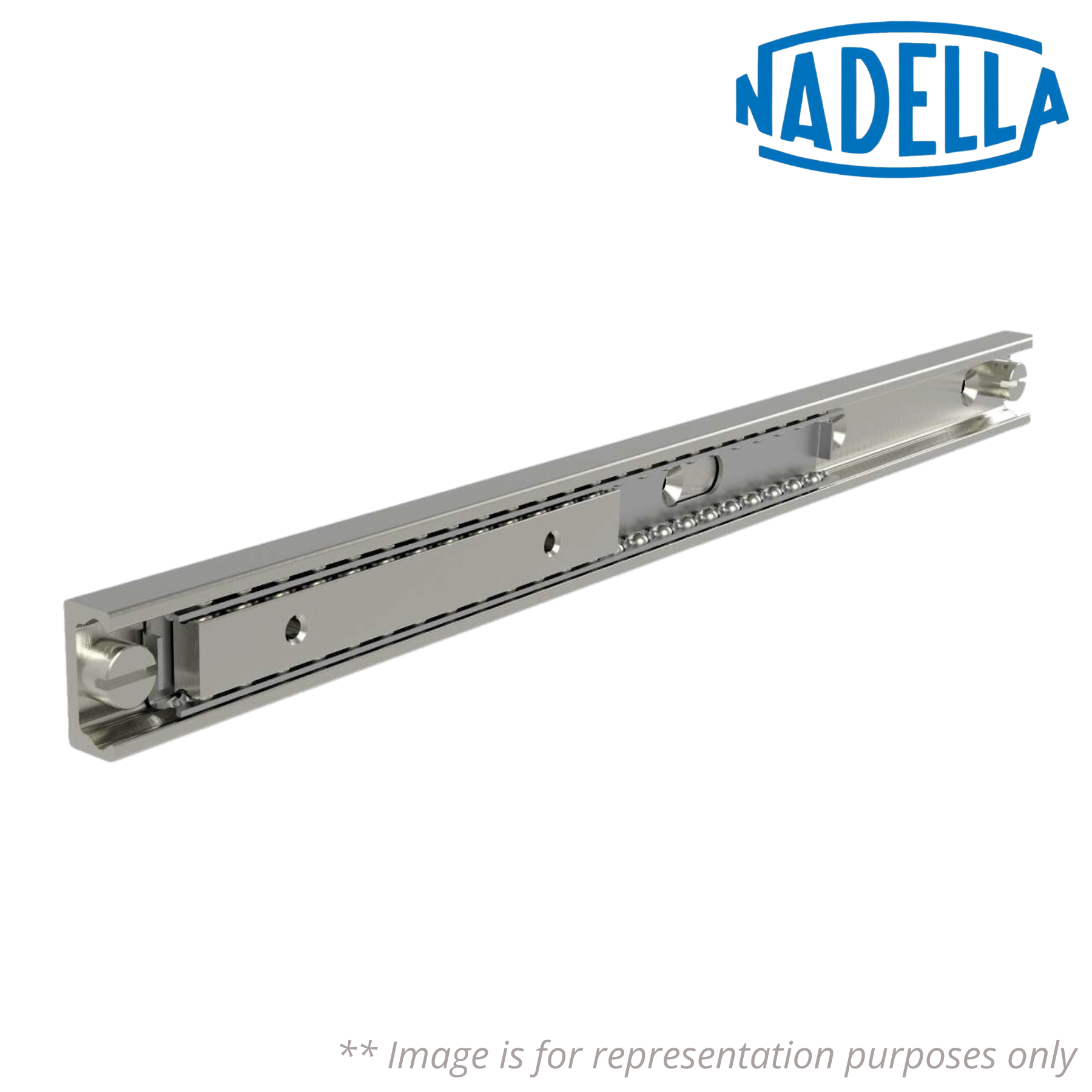

♦♦ Images are for representation purposes only
Item Number - NTSF43H-610-1970 NADELLA
Category - Telescopic Rails Hardened Linear Guide Partial Extension
Principal Dimensions & Load Ratings (Metric):
Slider Length - 610 mm
Rail Length (L) - 1970 mm
Stroke Length - 1320 mm
Slider Weight - 1.281 kg
Guide Weight - 5.1417 kg
Cage Weight - 0.9779 kg
NTSF Weight - 7.4006 kg
Load Capacity for Pair of Rails (Cy) - 115464 N
Load Capacity for Pair of Rails (Cz) - 80848 N
Torque Capacity for Single Rail (Mx) - 529 Nm
Torque Capacities for Pair of Rails (My) - 5524 Nm
Torque Capacities for Pair of Rails (Mz) - 7890 Nm
Dynamic Load for Lifetime Calculation (C100) - 123860 N
Description of Prefix:
NTSF - Linear guides rails, with one or more sliders running inside a fixed length
♦♦ Images are for representation purposes only
