Description
Brand - NADELLA
Item Number - NTSF43H-370-1330 NADELLA
Category - Telescopic Rails Hardened Linear Guide Partial Extension
Principal Dimensions & Load Ratings (Metric):
Slider Length - 370 mm
Rail Length (L) - 1330 mm
Stroke Length - 920 mm
Slider Weight - 0.777 kg
Guide Weight - 3.4713 kg
Cage Weight - 0.6391 kg
NTSF Weight - 4.8874 kg
Load Capacity for Pair of Rails (Cy) - 69278 N
Load Capacity for Pair of Rails (Cz) - 48509 N
Torque Capacity for Single Rail (Mx) - 317 Nm
Torque Capacities for Pair of Rails (My) - 2022 Nm
Torque Capacities for Pair of Rails (Mz) - 2886 Nm
Dynamic Load for Lifetime Calculation (C100) - 86574 N
Description of Prefix:
NTSF - Linear guides rails, with one or more sliders running inside a fixed length

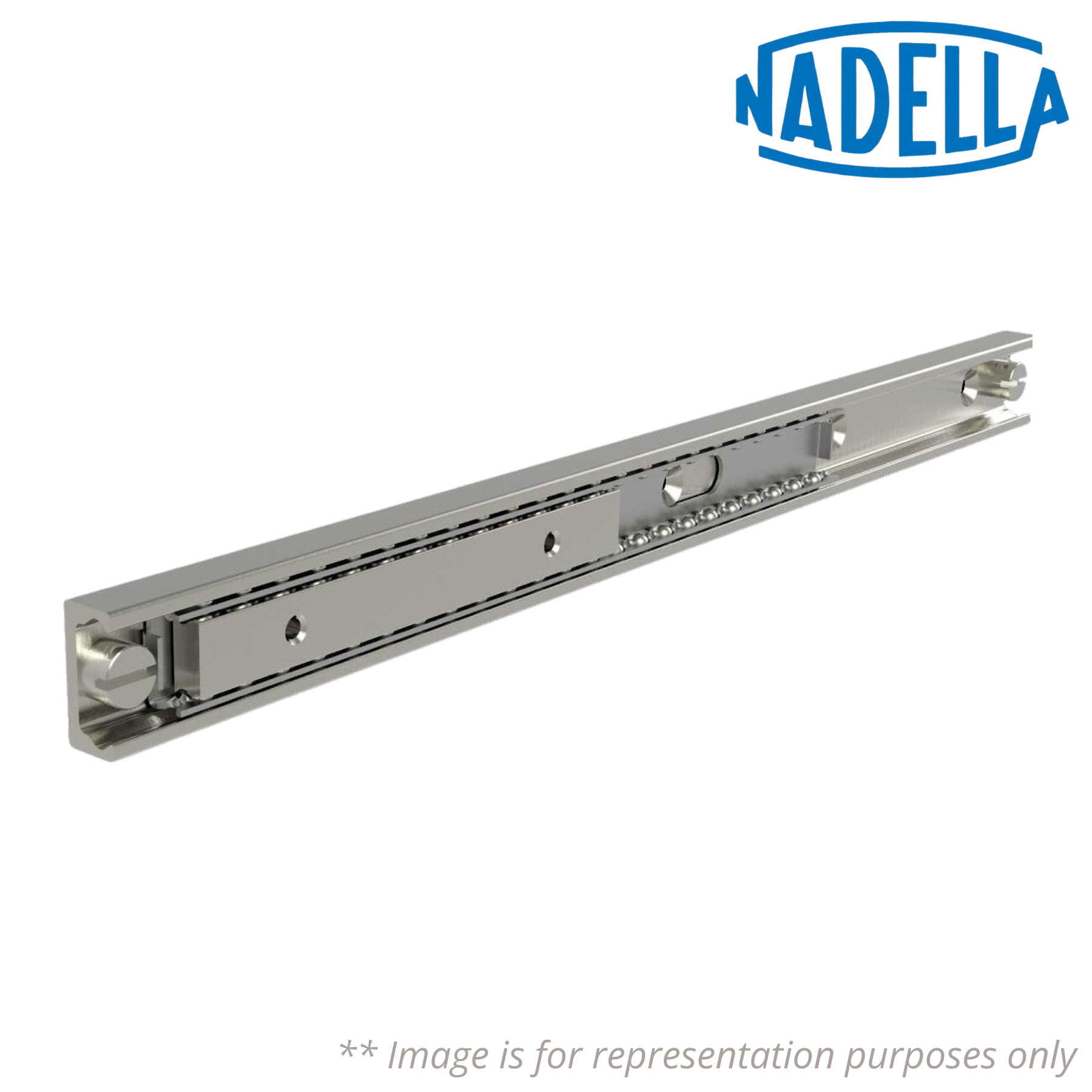

♦♦ Images are for representation purposes only
Item Number - NTSF43H-370-1330 NADELLA
Category - Telescopic Rails Hardened Linear Guide Partial Extension
Principal Dimensions & Load Ratings (Metric):
Slider Length - 370 mm
Rail Length (L) - 1330 mm
Stroke Length - 920 mm
Slider Weight - 0.777 kg
Guide Weight - 3.4713 kg
Cage Weight - 0.6391 kg
NTSF Weight - 4.8874 kg
Load Capacity for Pair of Rails (Cy) - 69278 N
Load Capacity for Pair of Rails (Cz) - 48509 N
Torque Capacity for Single Rail (Mx) - 317 Nm
Torque Capacities for Pair of Rails (My) - 2022 Nm
Torque Capacities for Pair of Rails (Mz) - 2886 Nm
Dynamic Load for Lifetime Calculation (C100) - 86574 N
Description of Prefix:
NTSF - Linear guides rails, with one or more sliders running inside a fixed length
♦♦ Images are for representation purposes only
