Brand - NADELLA
Item Number - NTSF43H-290-690 NADELLA

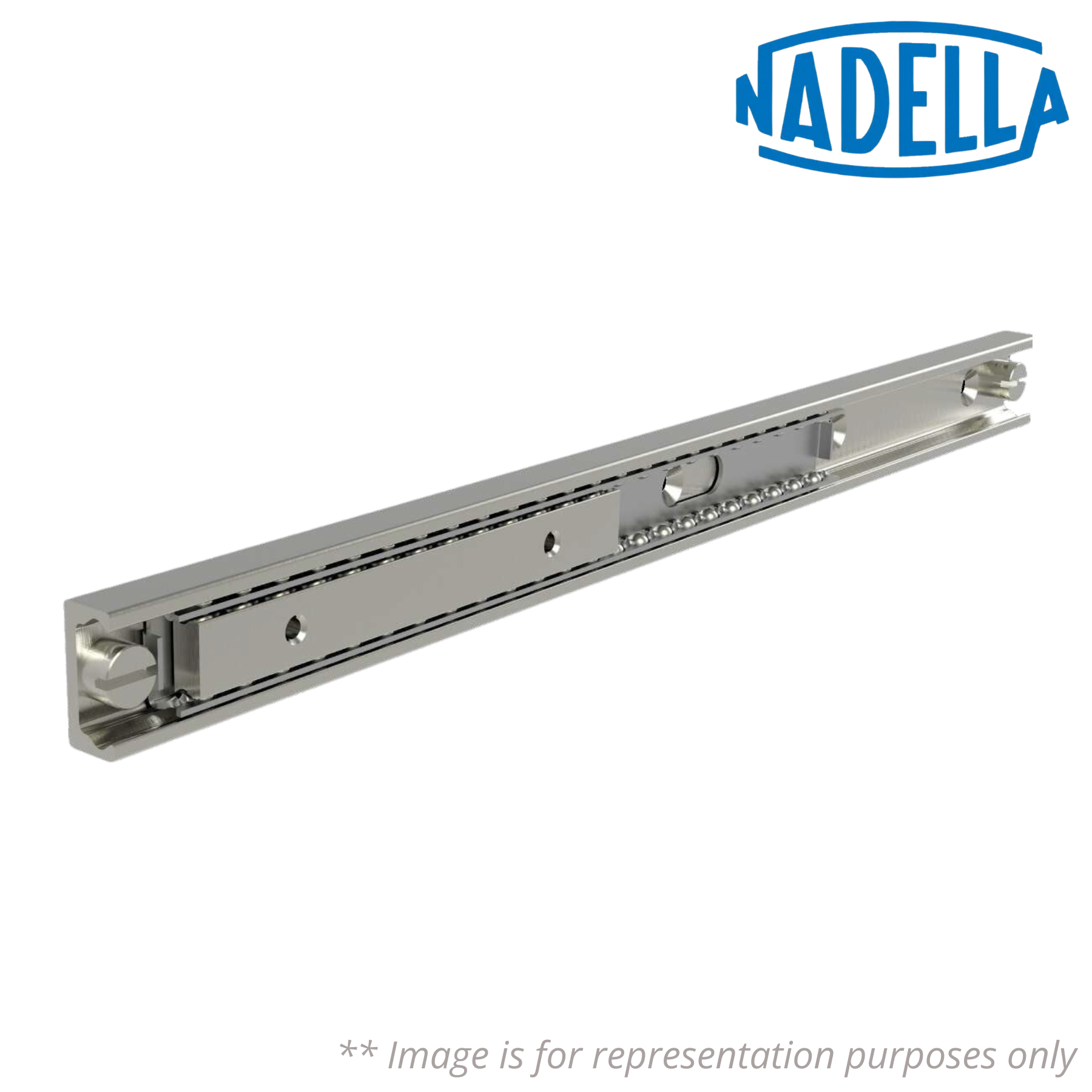

Category - Telescopic Rails Hardened Linear Guide Partial Extension

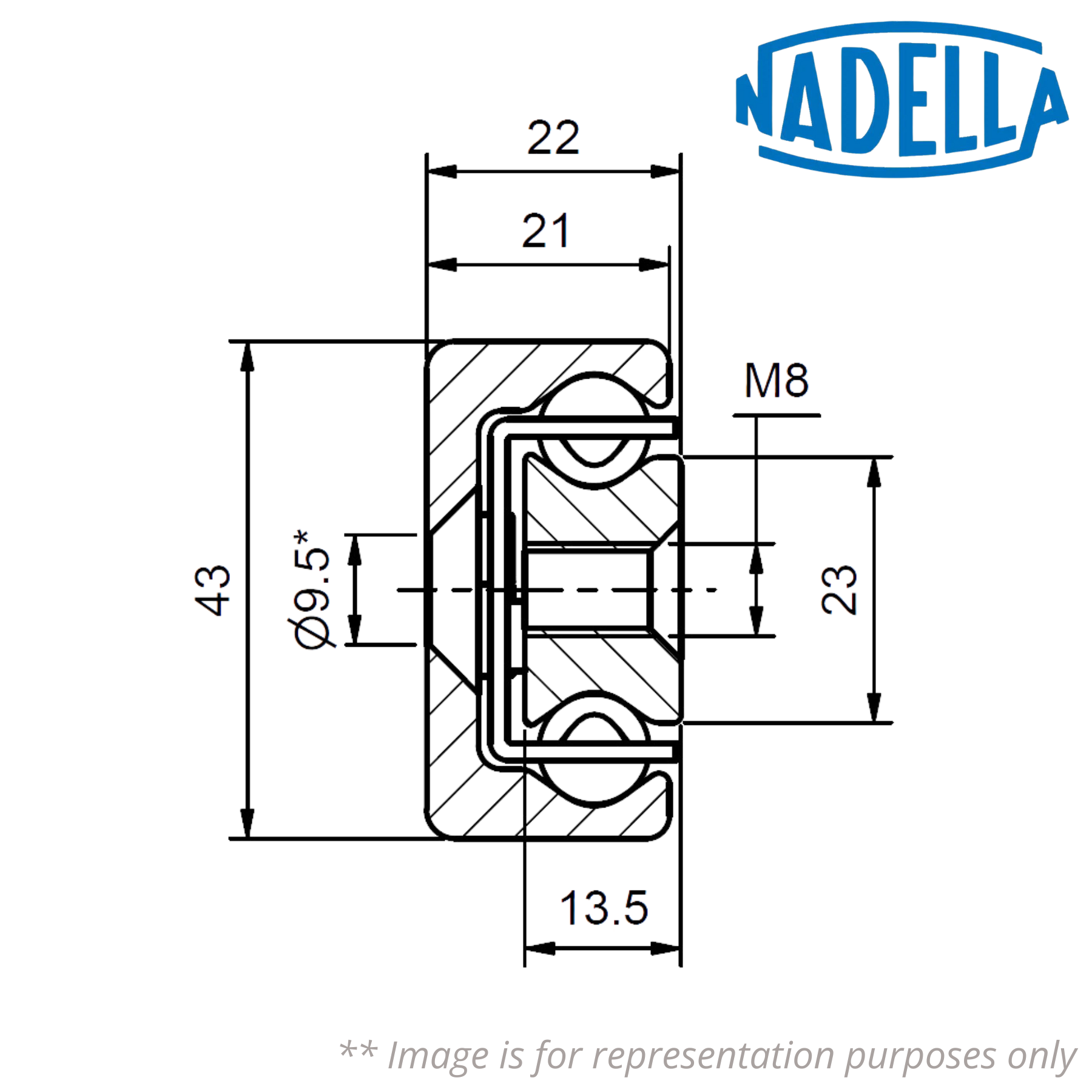

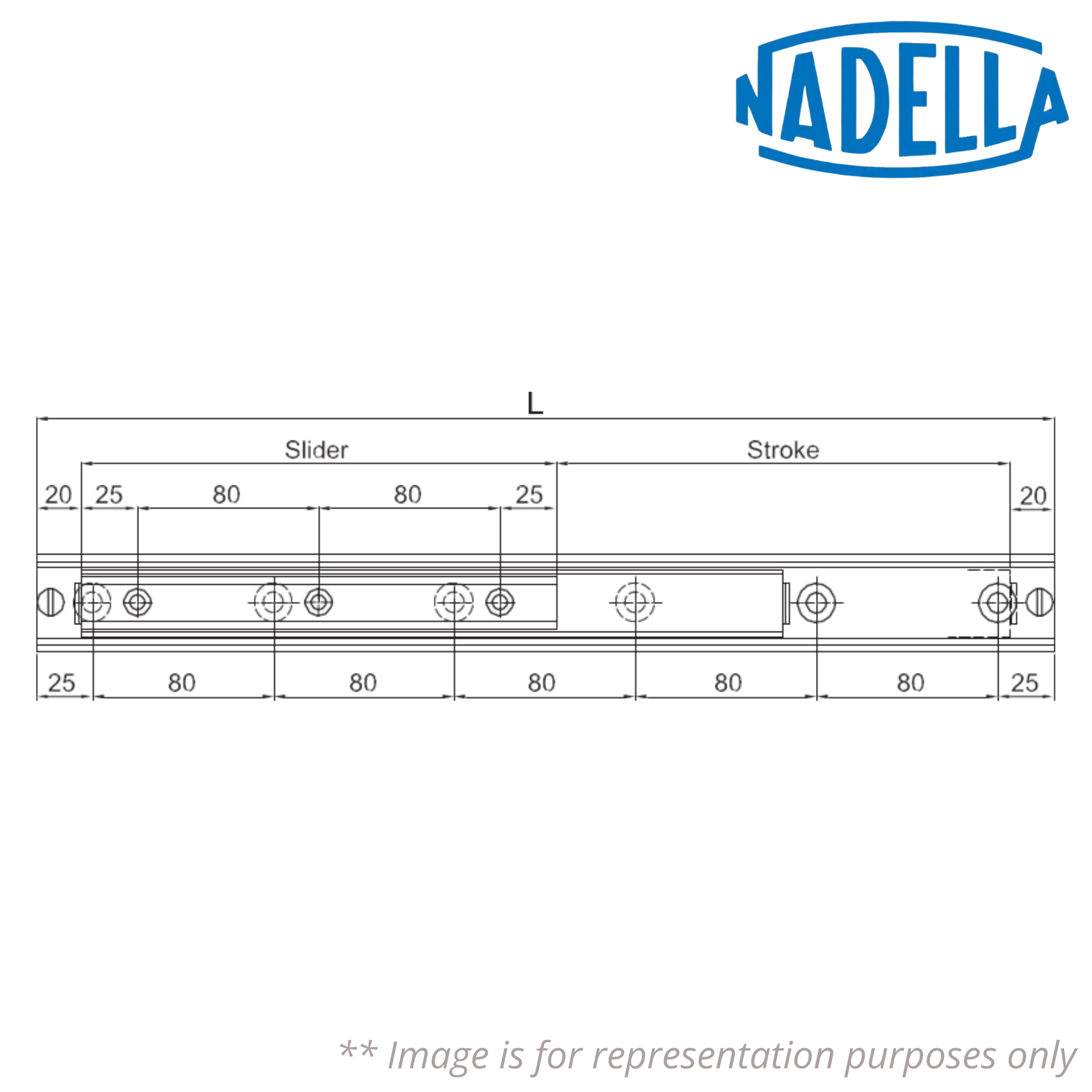

Principal Dimensions & Load Ratings (Metric):
Slider Length - 290 mm
Rail Length (L) - 690 mm
Stroke Length - 360 mm
Slider Weight - 0.609 kg
Guide Weight - 1.8009 kg
Cage Weight - 0.3619 kg
NTSF Weight - 2.7718 kg
Load Capacity for Pair of Rails (Cy) - 54845 N
Load Capacity for Pair of Rails (Cz) - 38403 N
Torque Capacity for Single Rail (Mx) - 251 Nm
Torque Capacities for Pair of Rails (My) - 1280 Nm
Torque Capacities for Pair of Rails (Mz) - 1828 Nm
Dynamic Load for Lifetime Calculation (C100) - 73485 N
Description of Prefix:
NTSF - Linear guides rails, with one or more sliders running inside a fixed length
