Description
Brand - NADELLA

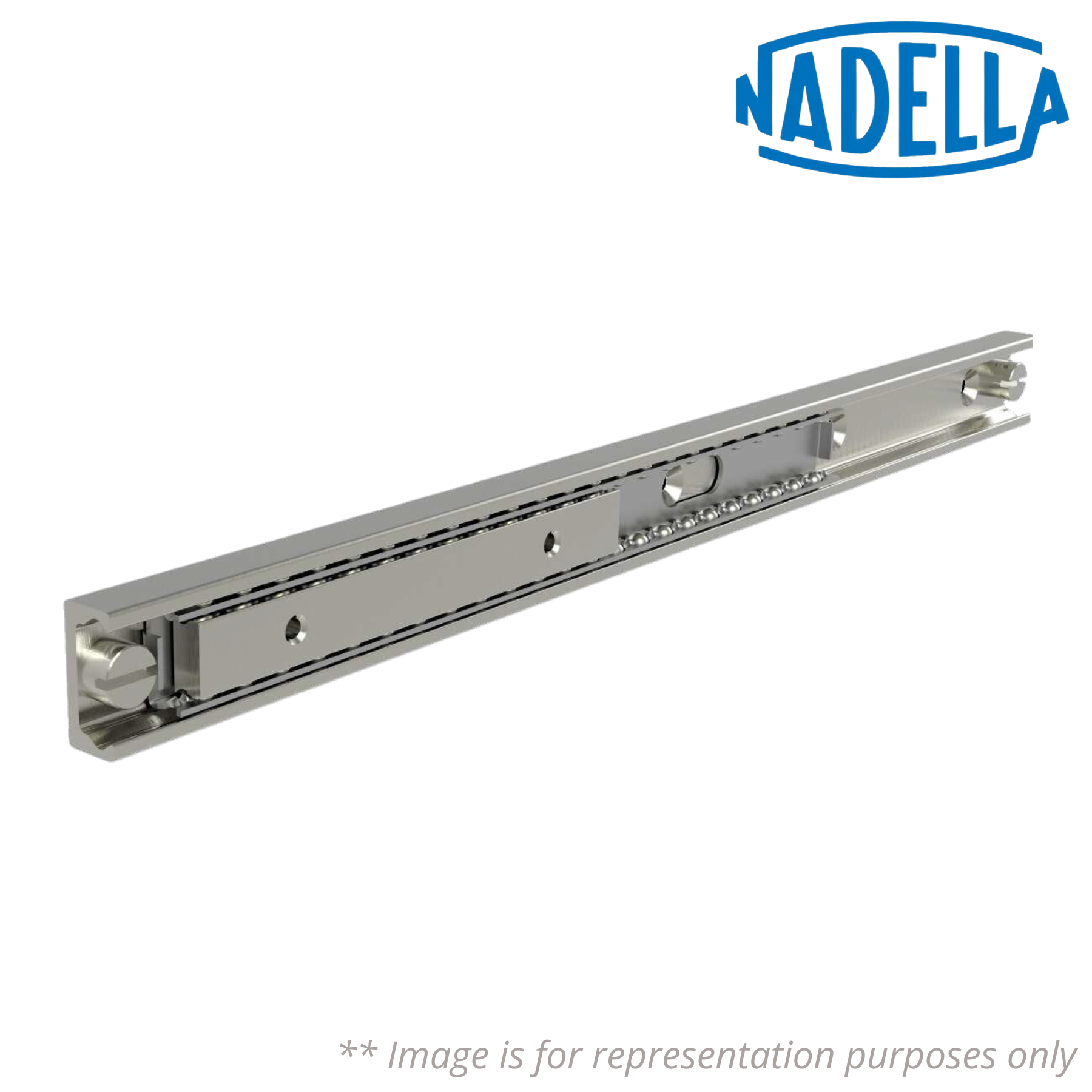

Item Number - NTSF43H-210-1170 NADELLA
Category - Telescopic Rails Hardened Linear Guide Partial Extension
Slider Length (mm) - 210
Rail Length (L) mm - 1170
Stroke Length (mm) - 920
Slider Weight (kg) - 0.441
Guide Weight (kg) - 3.0537
Cage Weight (kg) - 0.5159
NTSF Weight (kg) - 4.0106
Load Capacity for Pair of Rails (Cy) N - 37526
Load Capacity for Pair of Rails (Cz) N - 26276
Torque Capacity for Single Rail (Mx) Nm - 172
Torque Capacities for Pair of Rails (My) Nm - 614
Torque Capacities for Pair of Rails (Mz) Nm - 876
Dynamic Load for Lifetime Calculation (C100) N - 56293
