Description
Brand - NADELLA
Item Number - NTSF43H-130-690 NADELLA

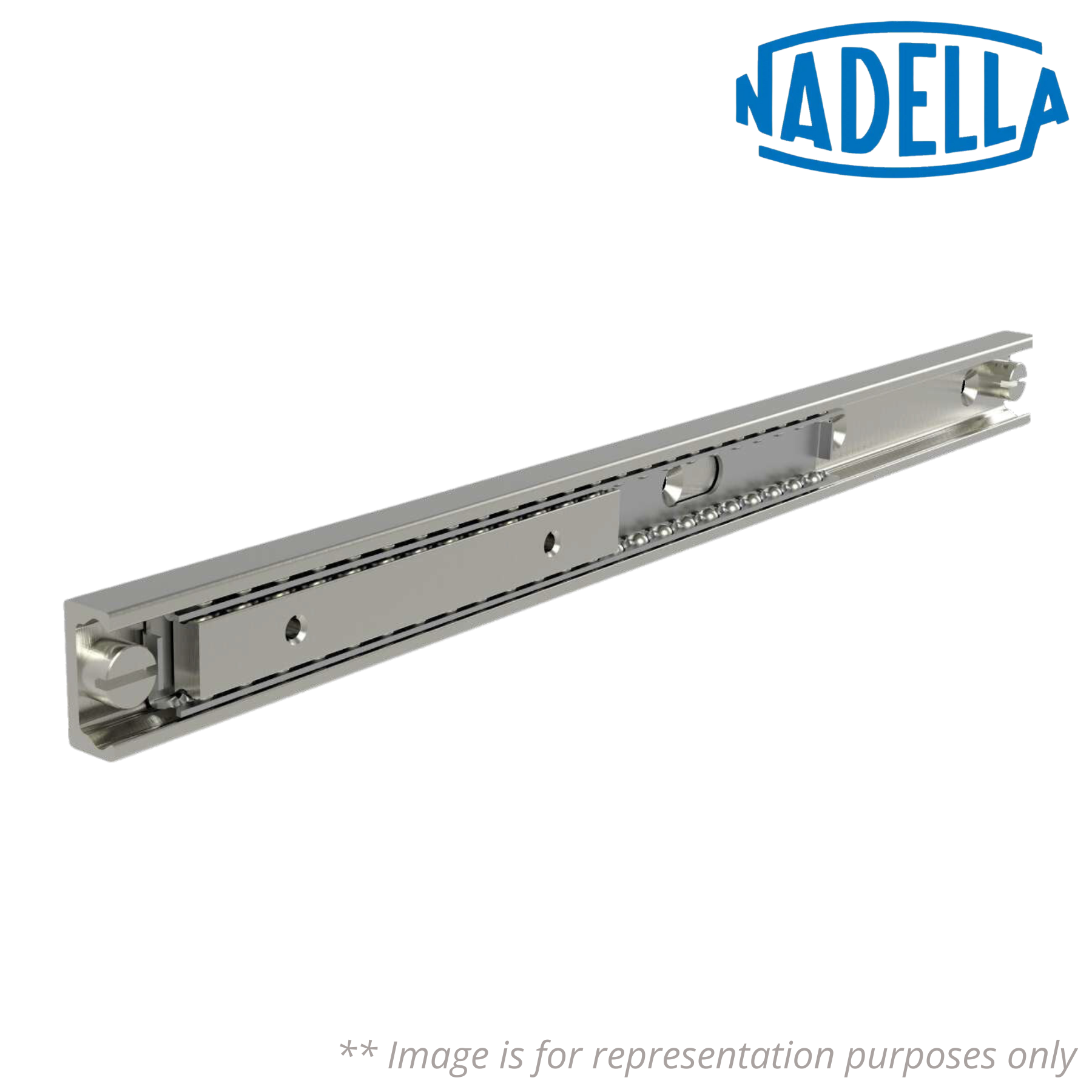

Category - Telescopic Rails Hardened Linear Guide Partial Extension
Slider Length (mm) - 130
Rail Length (L) mm - 690
Stroke Length (mm) - 520
Slider Weight (kg) - 0.273
Guide Weight (kg) - 1.8009
Cage Weight (kg) - 0.3003
NTSF Weight (kg) - 2.3742
Load Capacity for Pair of Rails (Cy) N - 23093
Load Capacity for Pair of Rails (Cz) N - 16170
Torque Capacity for Single Rail (Mx) Nm - 106
Torque Capacities for Pair of Rails (My) Nm - 242
Torque Capacities for Pair of Rails (Mz) Nm - 346
Dynamic Load for Lifetime Calculation (C100) N - 40002
