Description
Brand - NADELLA
Item Number - NTSF43H-130-290 NADELLA
Category - Telescopic Rails Hardened Linear Guide Partial Extension

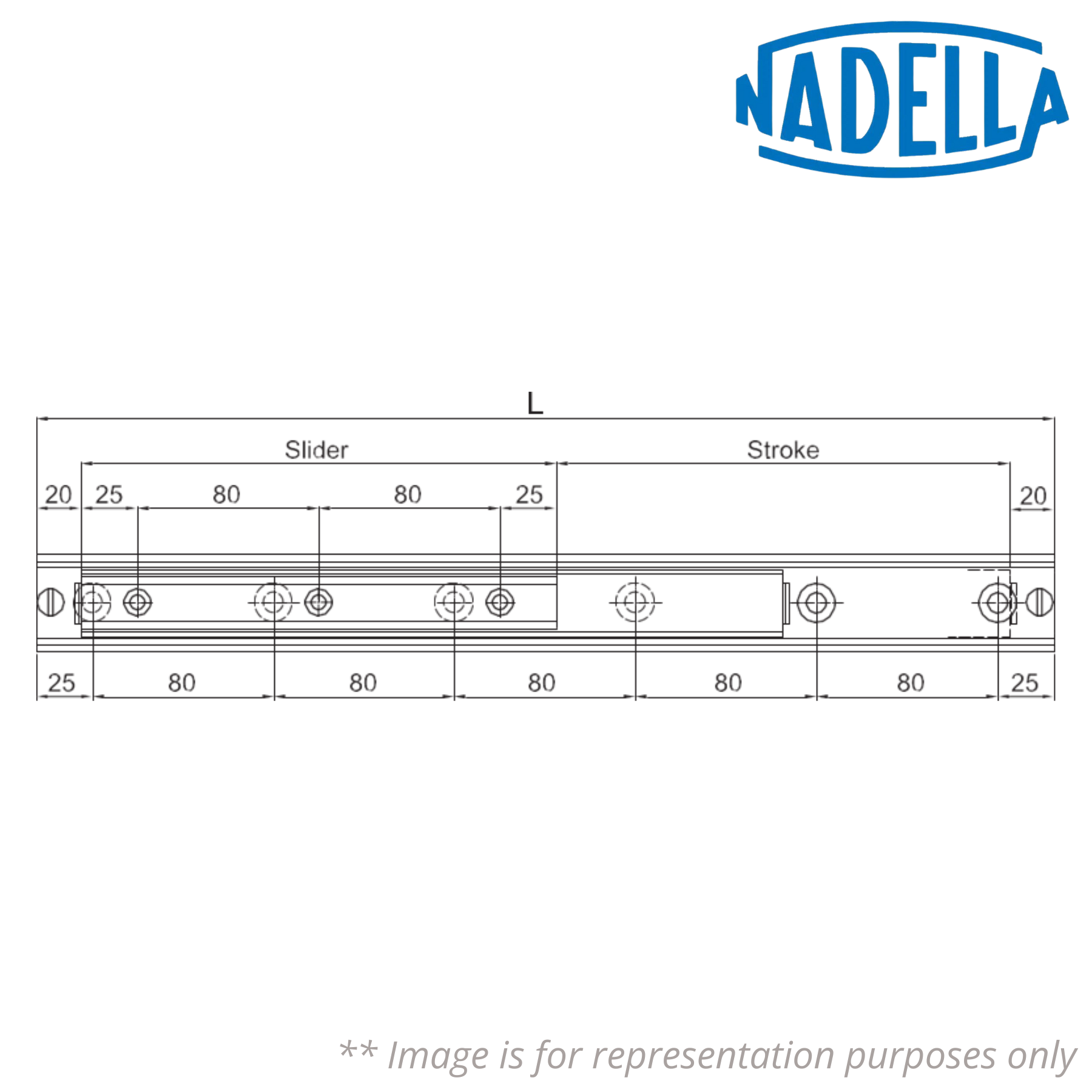

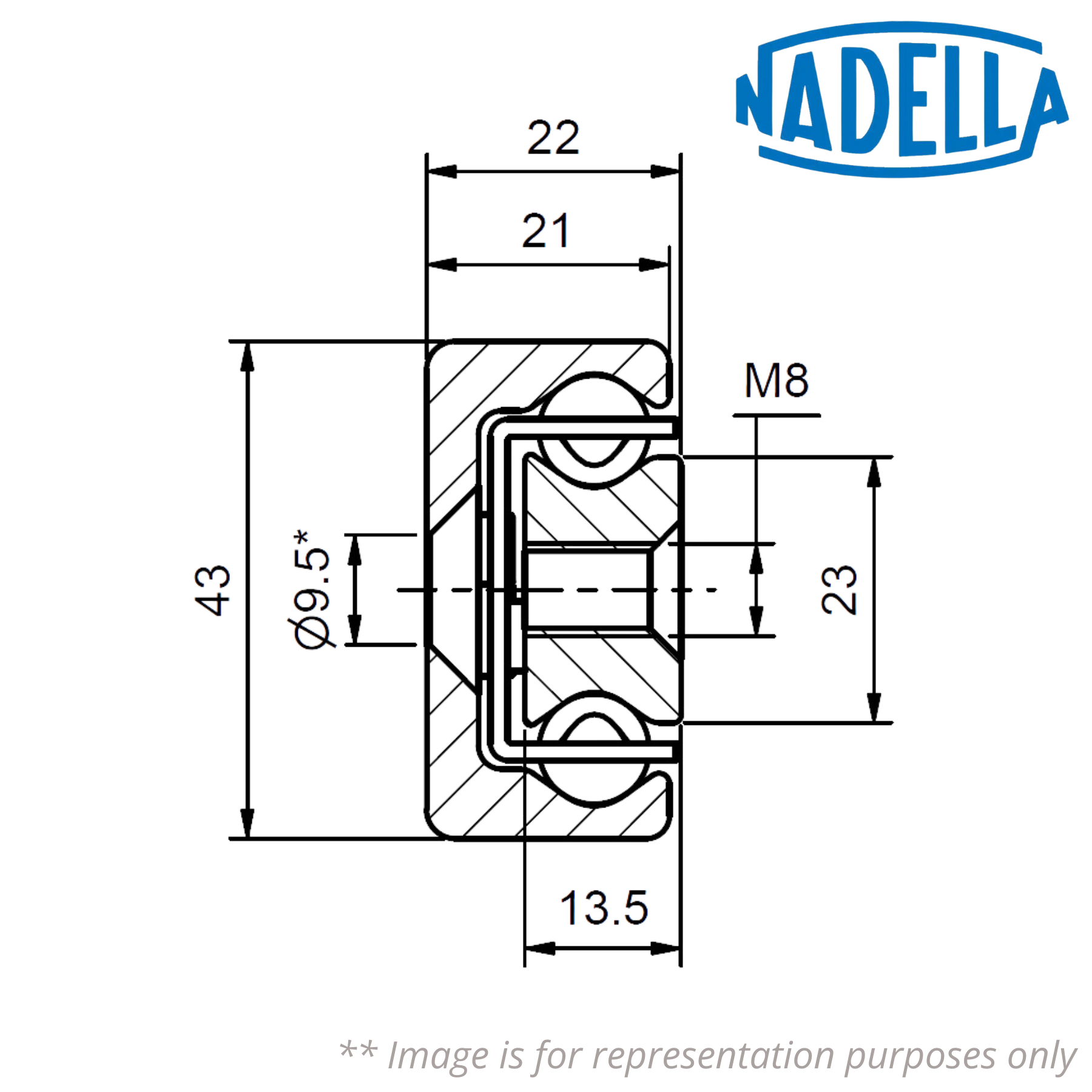

Principal Dimensions & Load Ratings (Metric):
Slider Length - 130 mm
Rail Length (L) - 290 mm
Stroke Length - 120 mm
Slider Weight - 0.273 kg
Guide Weight - 0.7569 kg
Cage Weight - 0.1463 kg
NTSF Weight - 1.1762 kg
Load Capacity for Pair of Rails (Cy) - 23093 N
Load Capacity for Pair of Rails (Cz) - 16170 N
Torque Capacity for Single Rail (Mx) - 106 Nm
Torque Capacities for Pair of Rails (My) - 242 Nm
Torque Capacities for Pair of Rails (Mz) - 346 Nm
Dynamic Load for Lifetime Calculation (C100) - 40002 N
Description of Prefix:
NTSF - Linear guides rails, with one or more sliders running inside a fixed length

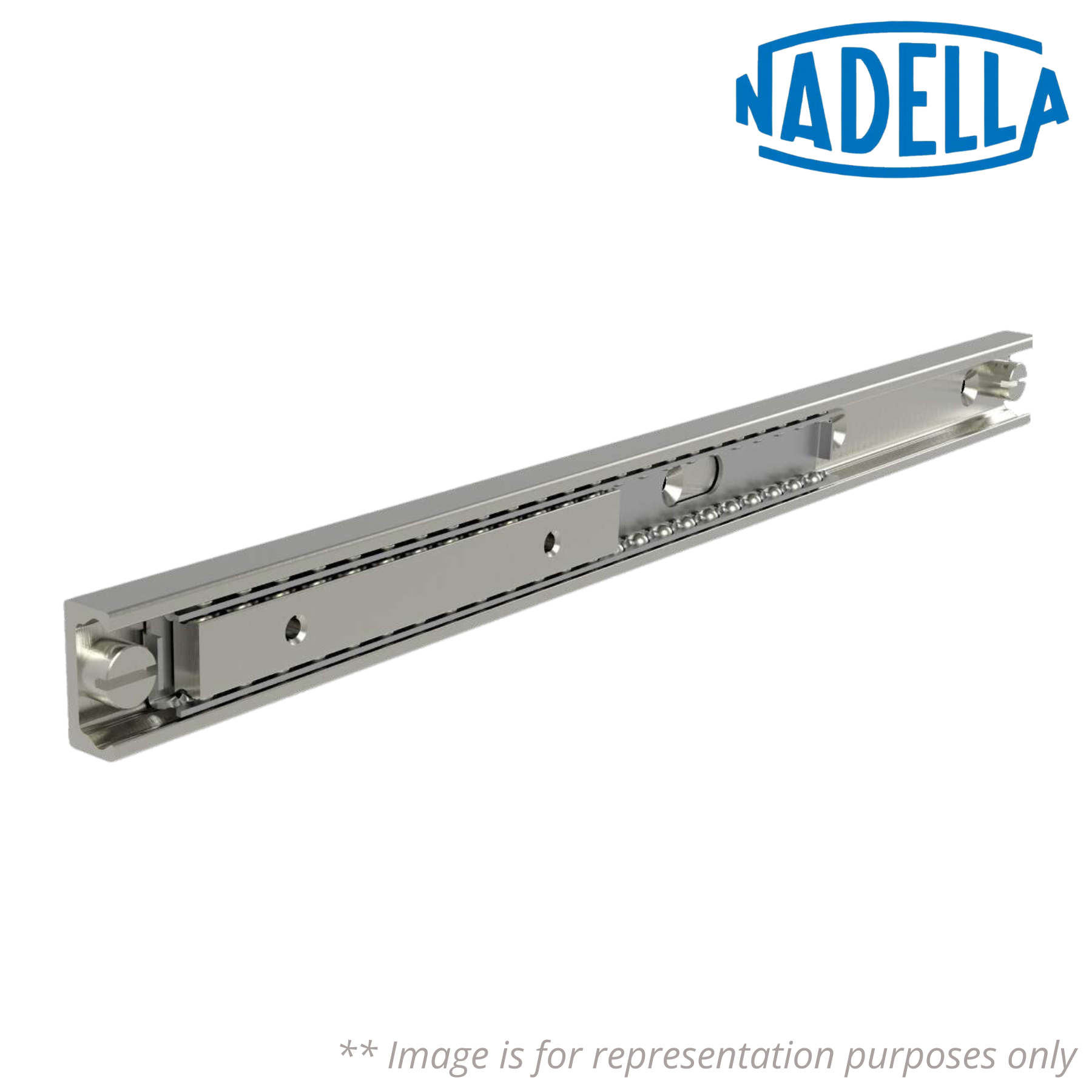

♦♦ Images are for representation purposes only
Item Number - NTSF43H-130-290 NADELLA
Category - Telescopic Rails Hardened Linear Guide Partial Extension
Principal Dimensions & Load Ratings (Metric):
Slider Length - 130 mm
Rail Length (L) - 290 mm
Stroke Length - 120 mm
Slider Weight - 0.273 kg
Guide Weight - 0.7569 kg
Cage Weight - 0.1463 kg
NTSF Weight - 1.1762 kg
Load Capacity for Pair of Rails (Cy) - 23093 N
Load Capacity for Pair of Rails (Cz) - 16170 N
Torque Capacity for Single Rail (Mx) - 106 Nm
Torque Capacities for Pair of Rails (My) - 242 Nm
Torque Capacities for Pair of Rails (Mz) - 346 Nm
Dynamic Load for Lifetime Calculation (C100) - 40002 N
Description of Prefix:
NTSF - Linear guides rails, with one or more sliders running inside a fixed length
♦♦ Images are for representation purposes only
