Brand - NADELLA
Item Number - NTSF28H-80-610 NADELLA

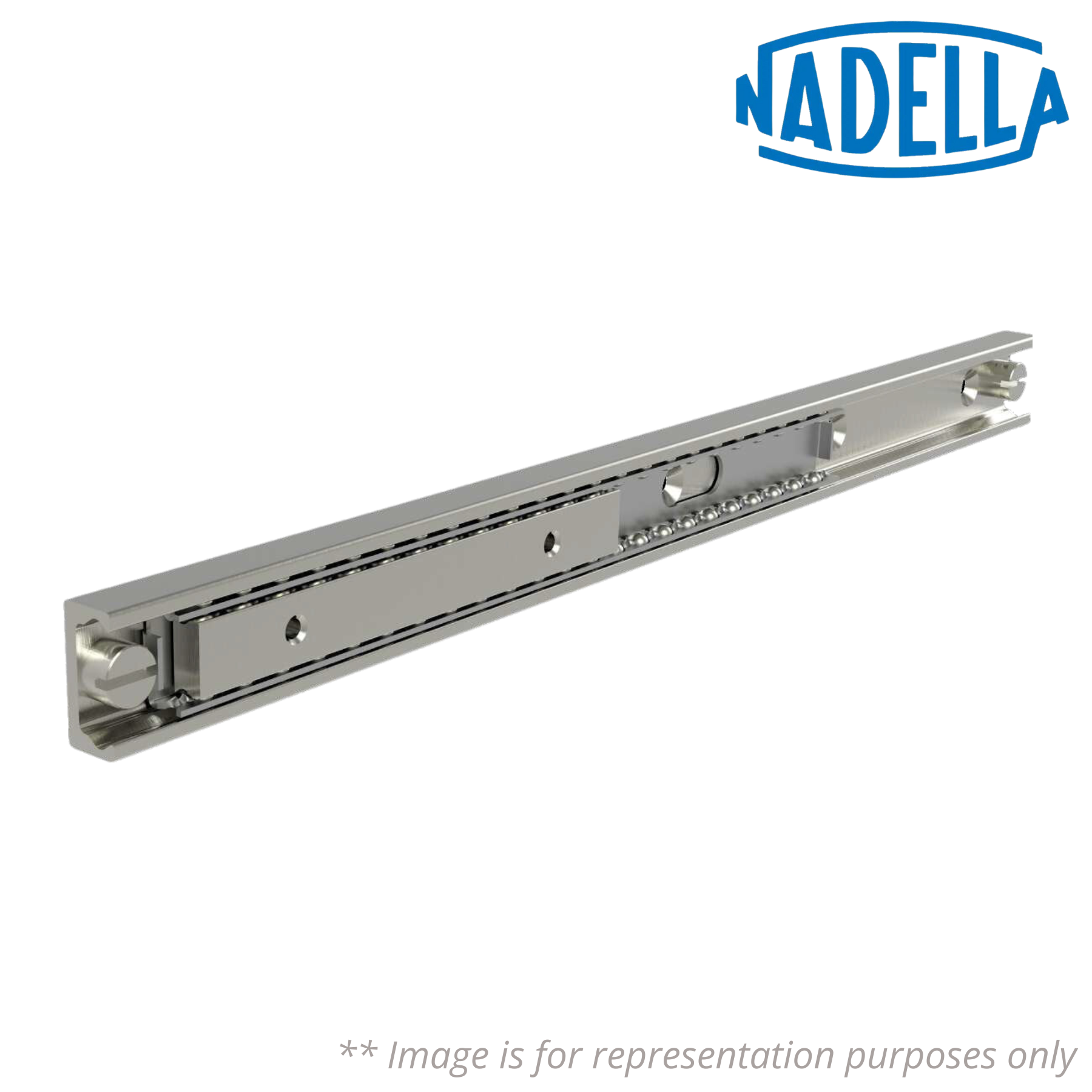

Category - Telescopic Rails Hardened Linear Guide Partial Extension
Principal Dimensions & Load Ratings (Metric):
Slider Length - 80 mm
Rail Length (L) - 610 mm
Dimension (a) - 10 mm
Dimension (b) - 20 mm
Stroke Length - 490 mm
Slider Weight - 0.0648 kg
Guide Weight - 0.6405 kg
Cage Weight - 0.13 kg
NTSF Weight - 0.8353 kg
Load Capacity for Pair of Rails (Cy) - 6744 N
Load Capacity for Pair of Rails (Cz) - 4722 N
Torque Capacity for Single Rail (Mx) - 21 Nm
Torque Capacities for Pair of Rails (My) - 64 Nm
Torque Capacities for Pair of Rails (Mz) - 88 Nm
Dynamic Load for Lifetime Calculation (C100) - 11349 N
Description of Prefix:
NTSF - Linear guides rails, with one or more sliders running inside a fixed length
