Description
Brand - NADELLA
Item Number - NTSF28H-370-930 NADELLA
Category - Telescopic Rails Hardened Linear Guide Partial Extension

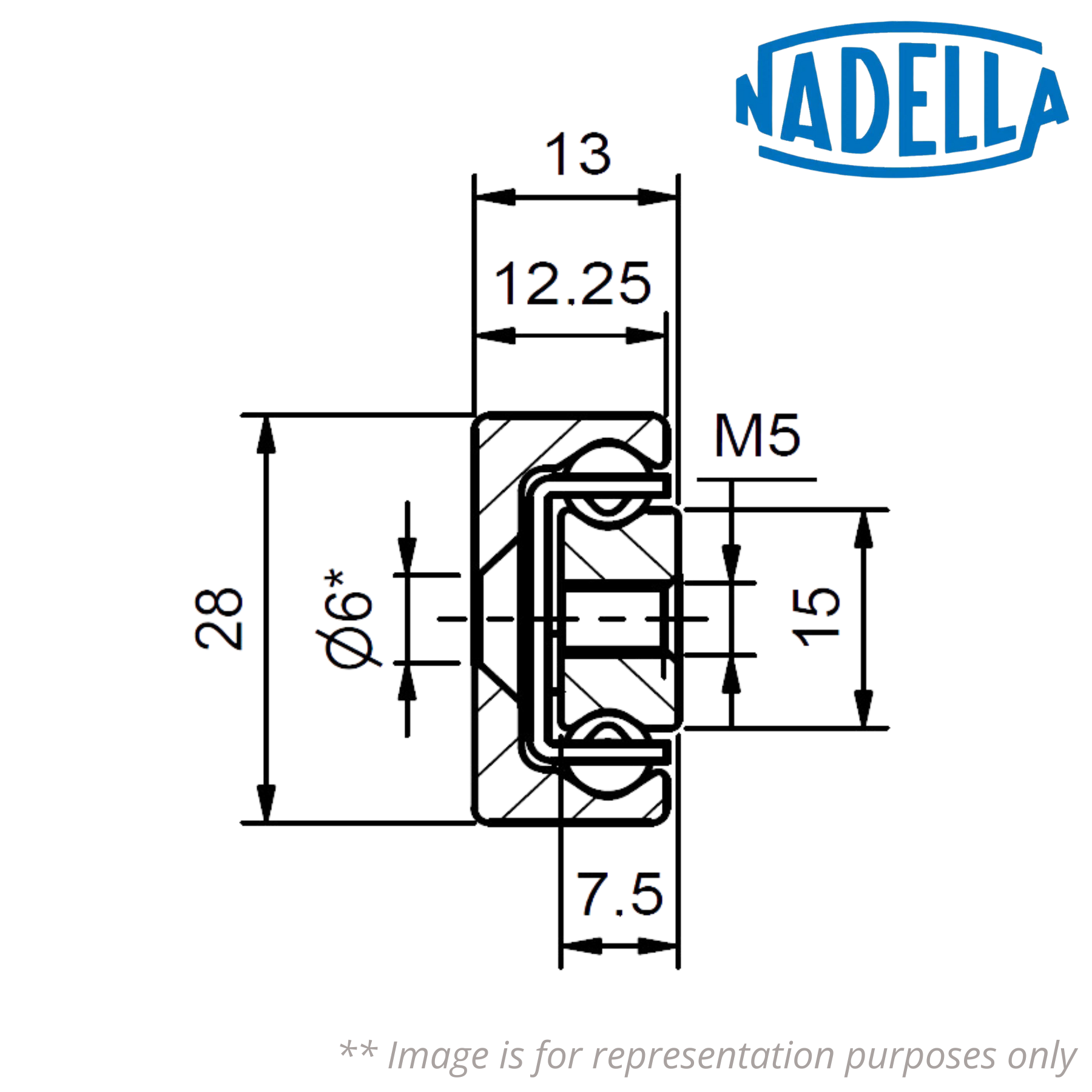

Principal Dimensions & Load Ratings (Metric):
Slider Length - 370 mm
Rail Length (L) - 930 mm
Dimension (a) - 25 mm
Dimension (b) - 80 mm
Stroke Length - 520 mm
Slider Weight - 0.2997 kg
Guide Weight - 0.9765 kg
Cage Weight - 0.252 kg
NTSF Weight - 1.5282 kg
Load Capacity for Pair of Rails (Cy) - 34682 N
Load Capacity for Pair of Rails (Cz) - 24286 N
Torque Capacity for Single Rail (Mx) - 109 Nm
Torque Capacities for Pair of Rails (My) - 1498 Nm
Torque Capacities for Pair of Rails (Mz) - 2138 Nm
Dynamic Load for Lifetime Calculation (C100) - 35860 N
Description of Prefix:
NTSF - Linear guides rails, with one or more sliders running inside a fixed length

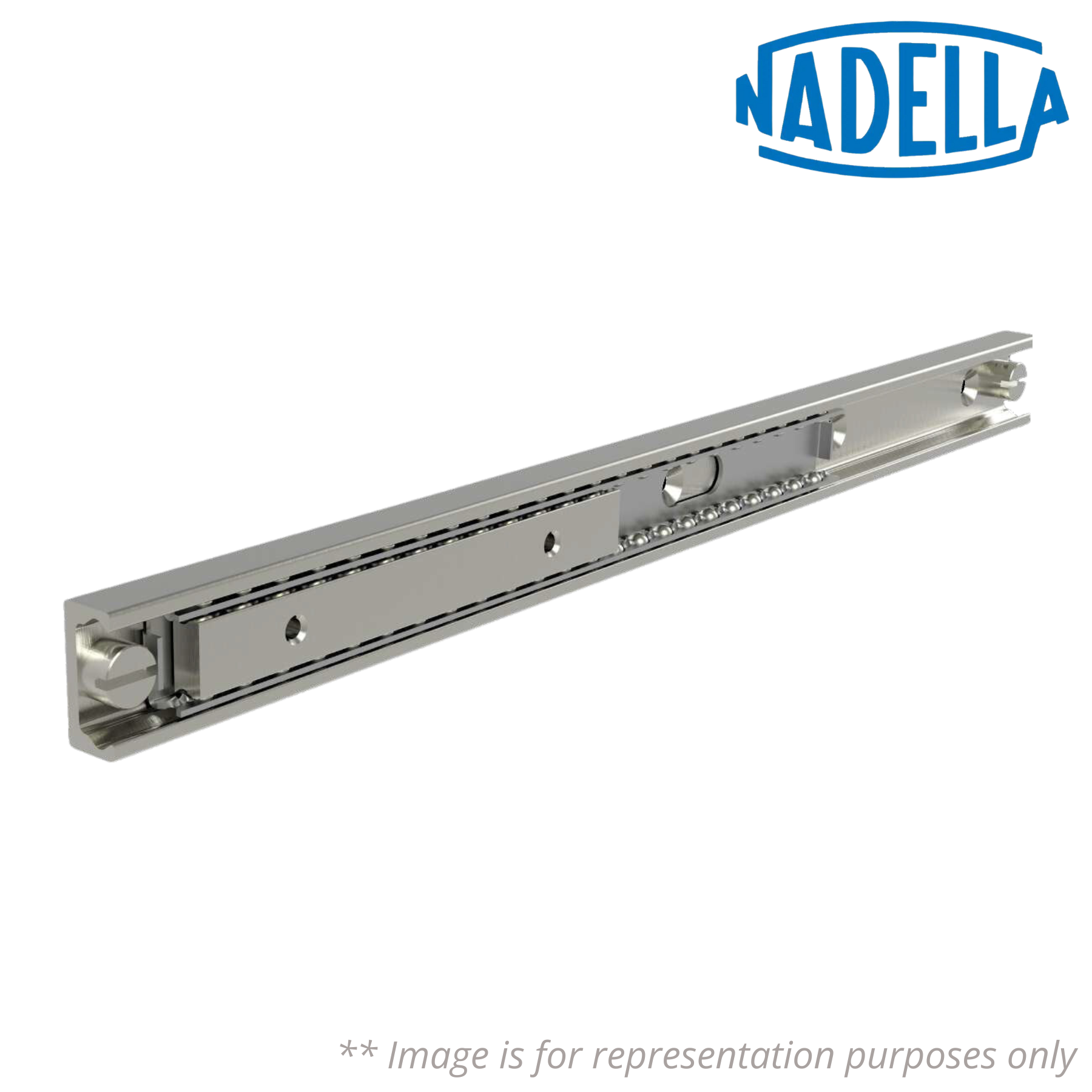

♦♦ Images are for representation purposes only
Item Number - NTSF28H-370-930 NADELLA
Category - Telescopic Rails Hardened Linear Guide Partial Extension
Principal Dimensions & Load Ratings (Metric):
Slider Length - 370 mm
Rail Length (L) - 930 mm
Dimension (a) - 25 mm
Dimension (b) - 80 mm
Stroke Length - 520 mm
Slider Weight - 0.2997 kg
Guide Weight - 0.9765 kg
Cage Weight - 0.252 kg
NTSF Weight - 1.5282 kg
Load Capacity for Pair of Rails (Cy) - 34682 N
Load Capacity for Pair of Rails (Cz) - 24286 N
Torque Capacity for Single Rail (Mx) - 109 Nm
Torque Capacities for Pair of Rails (My) - 1498 Nm
Torque Capacities for Pair of Rails (Mz) - 2138 Nm
Dynamic Load for Lifetime Calculation (C100) - 35860 N
Description of Prefix:
NTSF - Linear guides rails, with one or more sliders running inside a fixed length
♦♦ Images are for representation purposes only
