Description
Brand - NADELLA

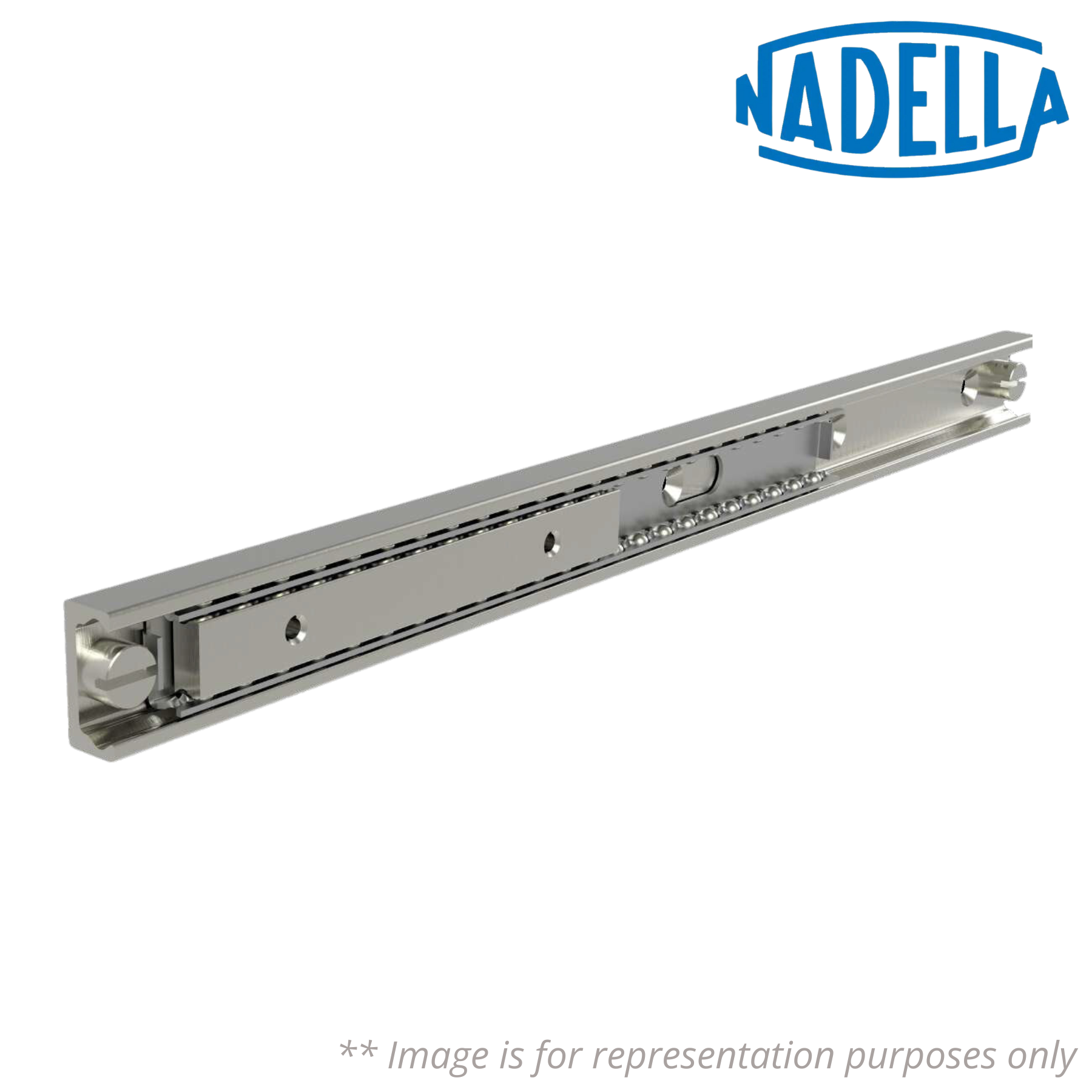

Item Number - NTSF28H-290-1490 NADELLA
Category - Telescopic Rails Hardened Linear Guide Partial Extension

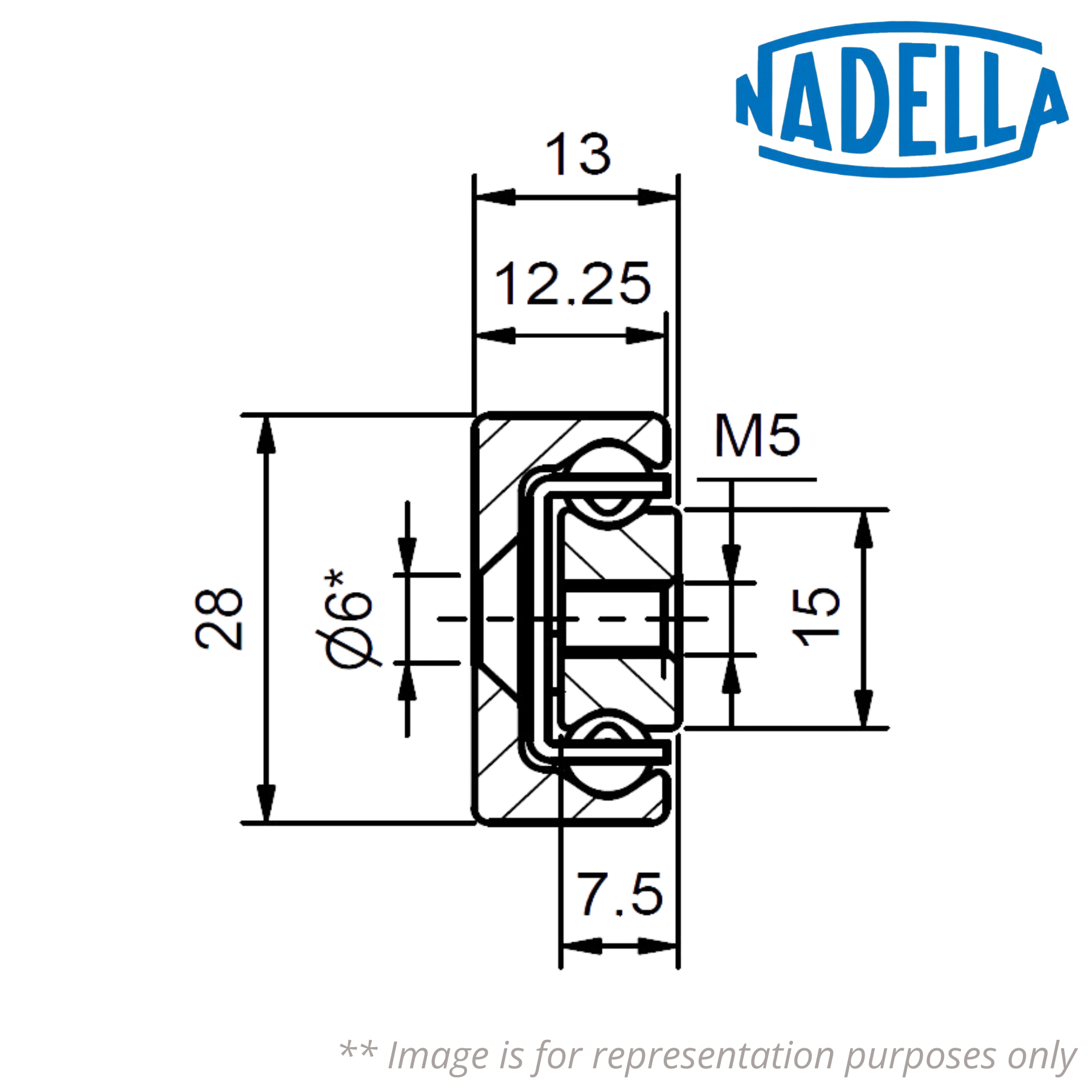

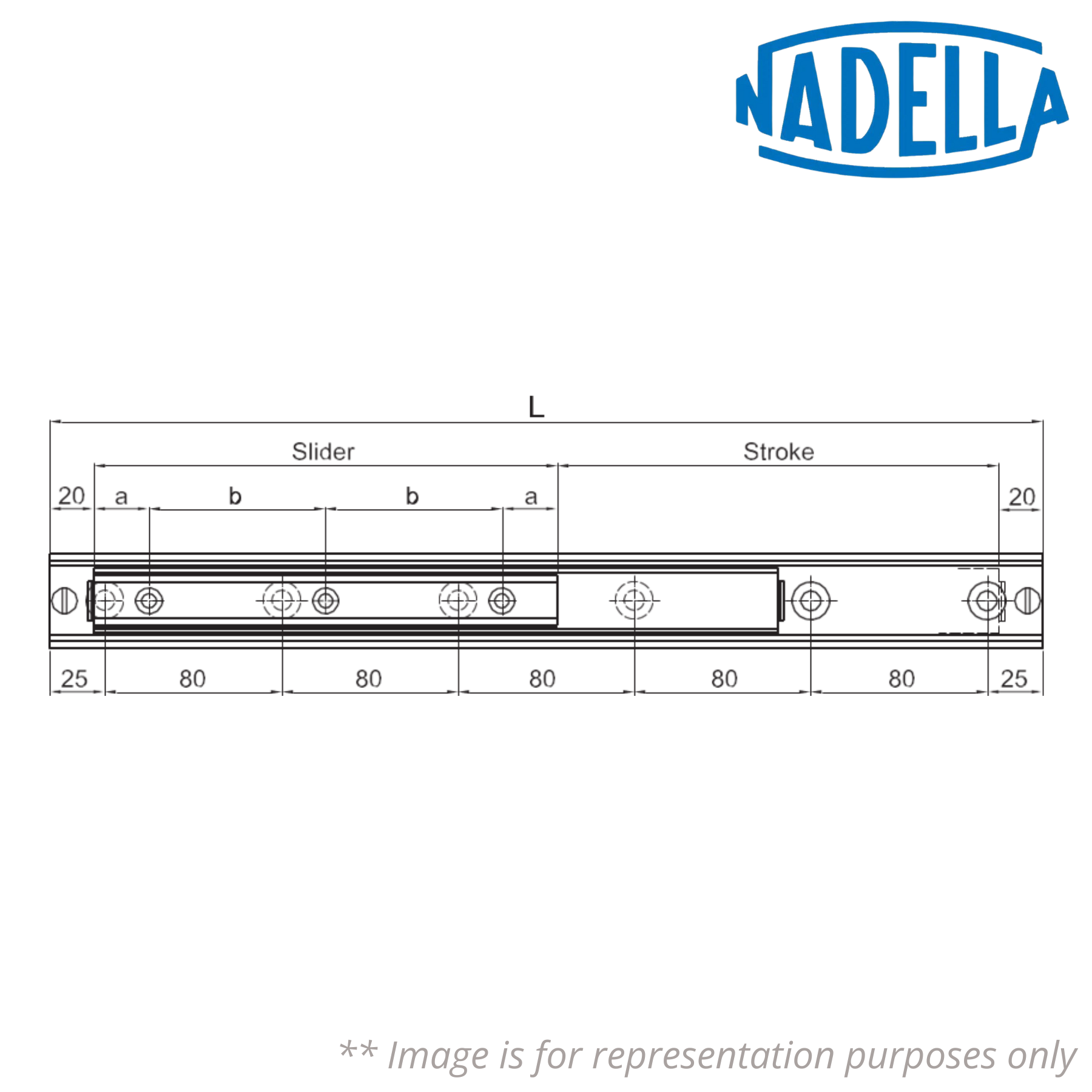

Principal Dimensions & Load Ratings (Metric):
Slider Length - 290 mm
Rail Length (L) - 1490 mm
Dimension (a) - 25 mm
Dimension (b) - 80 mm
Stroke Length - 1160 mm
Slider Weight - 0.2349 kg
Guide Weight - 1.5645 kg
Cage Weight - 0.348 kg
NTSF Weight - 2.1474 kg
Load Capacity for Pair of Rails (Cy) - 26975 N
Load Capacity for Pair of Rails (Cz) - 18889 N
Torque Capacity for Single Rail (Mx) - 85 Nm
Torque Capacities for Pair of Rails (My) - 912 Nm
Torque Capacities for Pair of Rails (Mz) - 1304 Nm
Dynamic Load for Lifetime Calculation (C100) - 30067 N
Description of Prefix:
NTSF - Linear guides rails, with one or more sliders running inside a fixed length
♦♦ Images are for representation purposes only
Item Number - NTSF28H-290-1490 NADELLA
Category - Telescopic Rails Hardened Linear Guide Partial Extension
Principal Dimensions & Load Ratings (Metric):
Slider Length - 290 mm
Rail Length (L) - 1490 mm
Dimension (a) - 25 mm
Dimension (b) - 80 mm
Stroke Length - 1160 mm
Slider Weight - 0.2349 kg
Guide Weight - 1.5645 kg
Cage Weight - 0.348 kg
NTSF Weight - 2.1474 kg
Load Capacity for Pair of Rails (Cy) - 26975 N
Load Capacity for Pair of Rails (Cz) - 18889 N
Torque Capacity for Single Rail (Mx) - 85 Nm
Torque Capacities for Pair of Rails (My) - 912 Nm
Torque Capacities for Pair of Rails (Mz) - 1304 Nm
Dynamic Load for Lifetime Calculation (C100) - 30067 N
Description of Prefix:
NTSF - Linear guides rails, with one or more sliders running inside a fixed length
♦♦ Images are for representation purposes only
