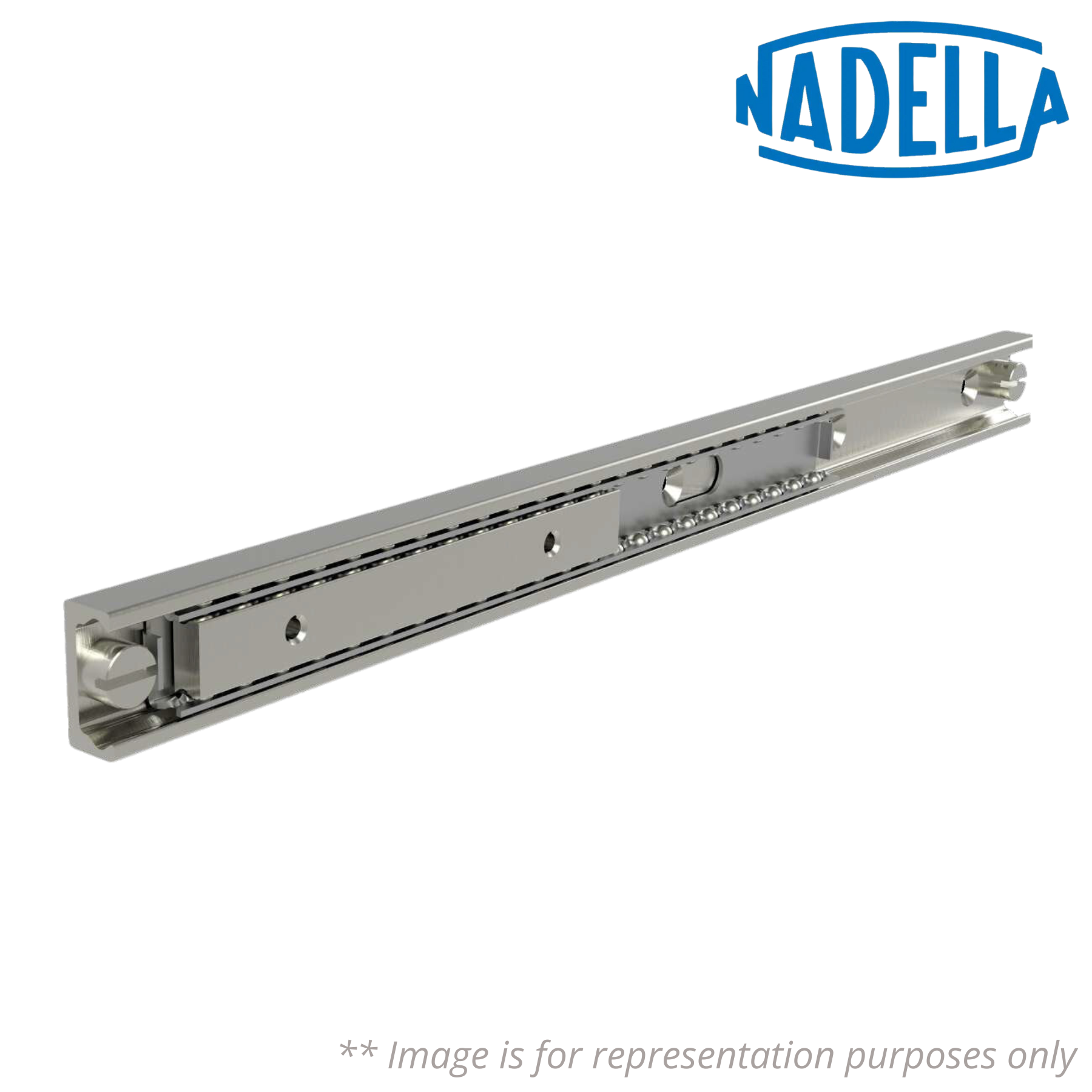

Brand - NADELLA
Item Number - NTSF28H-210-930 NADELLA
Category - Telescopic Rails Hardened Linear Guide Partial Extension

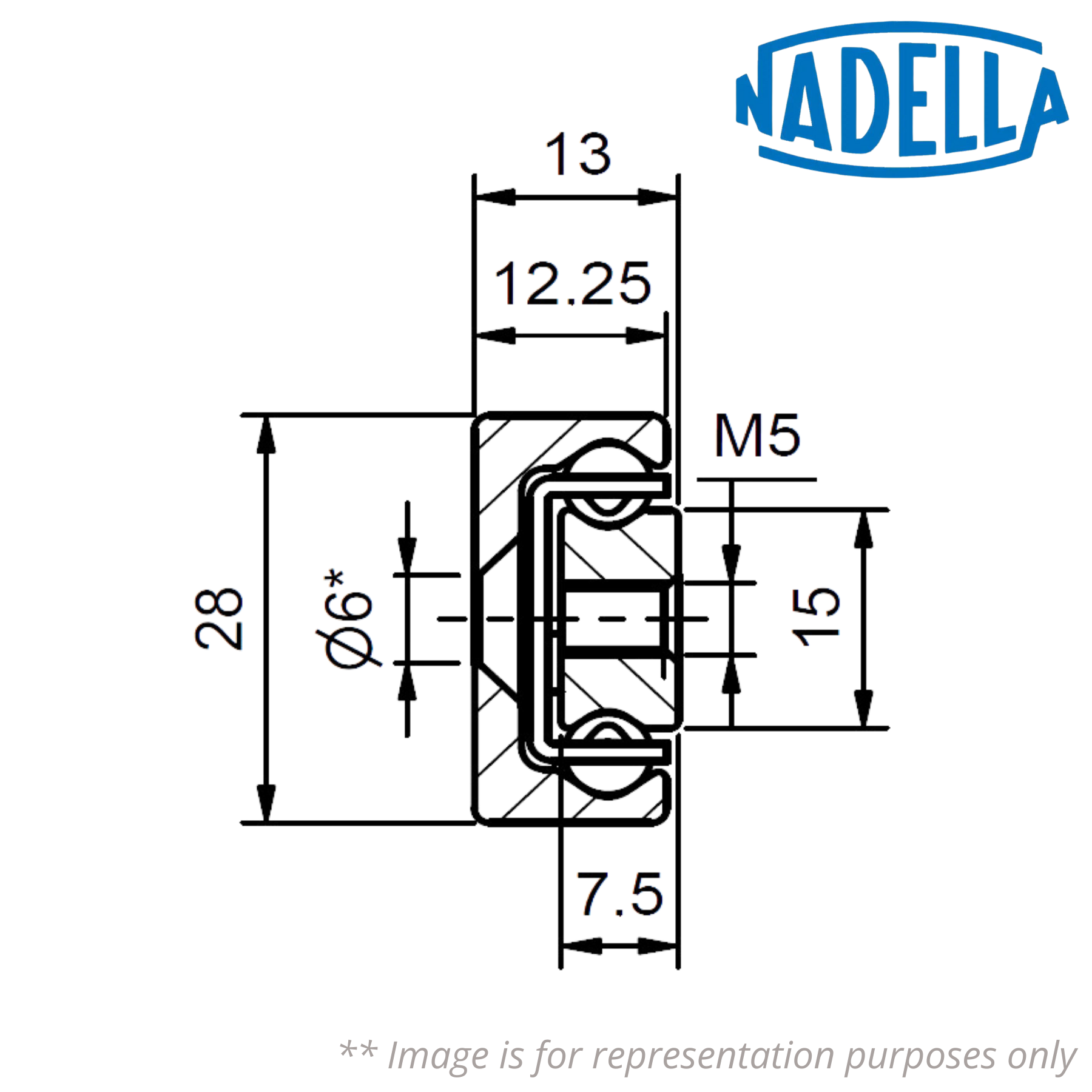

Principal Dimensions & Load Ratings (Metric):
Slider Length - 210 mm
Rail Length (L) - 930 mm
Dimension (a) - 25 mm
Dimension (b) - 80 mm
Stroke Length - 680 mm
Slider Weight - 0.1701 kg
Guide Weight - 0.9765 kg
Cage Weight - 0.22 kg
NTSF Weight - 1.3666 kg
Load Capacity for Pair of Rails (Cy) - 19268 N
Load Capacity for Pair of Rails (Cz) - 13492 N
Torque Capacity for Single Rail (Mx) - 61 Nm
Torque Capacities for Pair of Rails (My) - 472 Nm
Torque Capacities for Pair of Rails (Mz) - 672 Nm
Dynamic Load for Lifetime Calculation (C100) - 23746 N
Description of Prefix:
NTSF - Linear guides rails, with one or more sliders running inside a fixed length
