Description
Brand - NADELLA

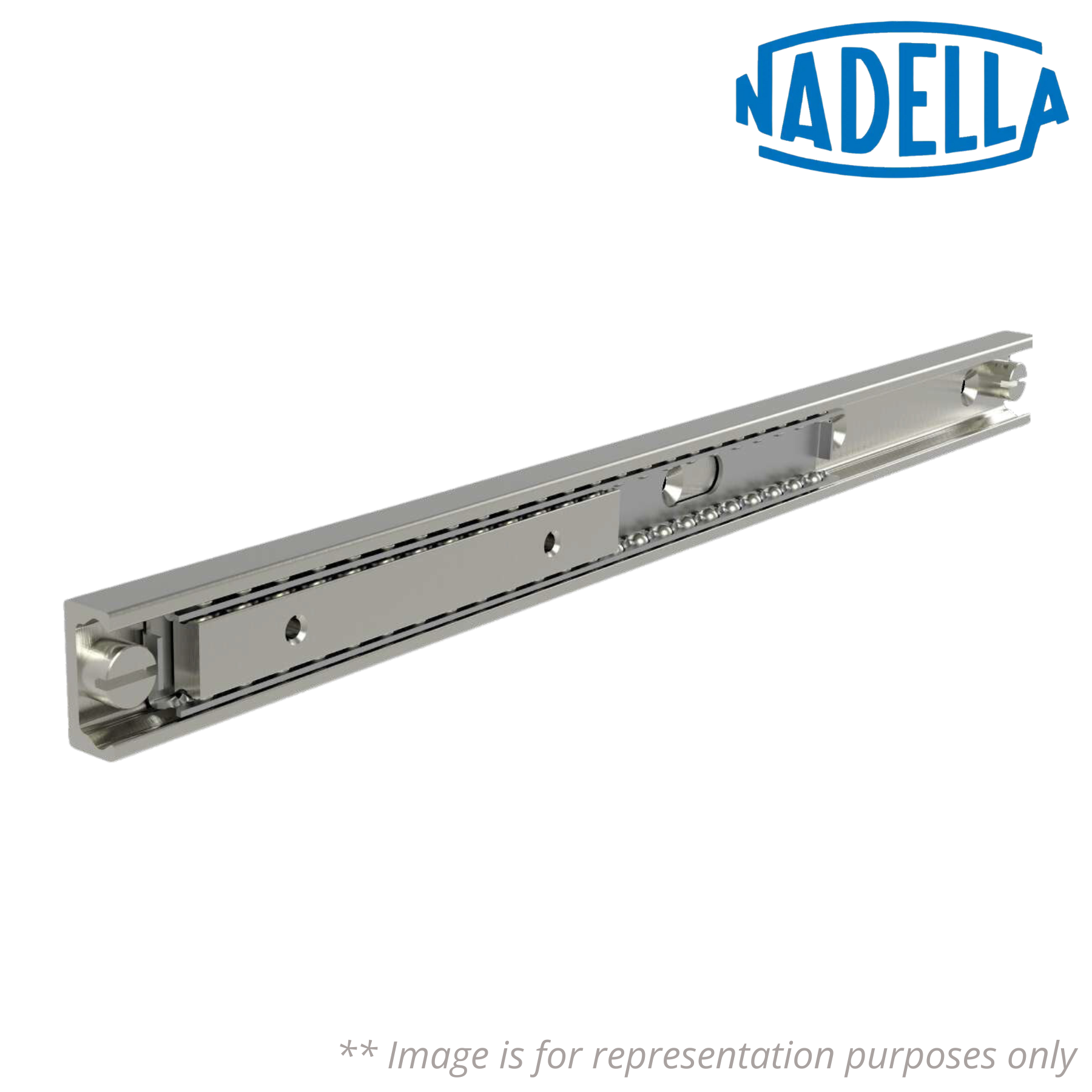

Item Number - NTSF28H-210-1170 NADELLA
Category - Telescopic Rails Hardened Linear Guide Partial Extension
Slider Length (mm) - 210
Rails Length (L) mm - 1170
Dimension (a) mm - 25
Dimension (b) mm - 80
Stroke Length (mm) - 920
Slider Weight (kg) - 0.1701
Guide Weight (kg) - 1.2285
Cage Weight (kg) - 0.268
NTSF Weight (kg) - 1.6666
Load Capacity for Pair of Rails (Cy) N - 19268
Load Capacity for Pair of Rails (Cz) N - 13492
Torque Capacity for Single Rail (Mx) Nm - 61
Torque Capacities for Pair of Rails (My) Nm - 472
Torque Capacities for Pair of Rails (Mz) Nm - 672
Dynamic Load for Lifetime Calculation (C100) N - 23746
