Description
Brand - NADELLA

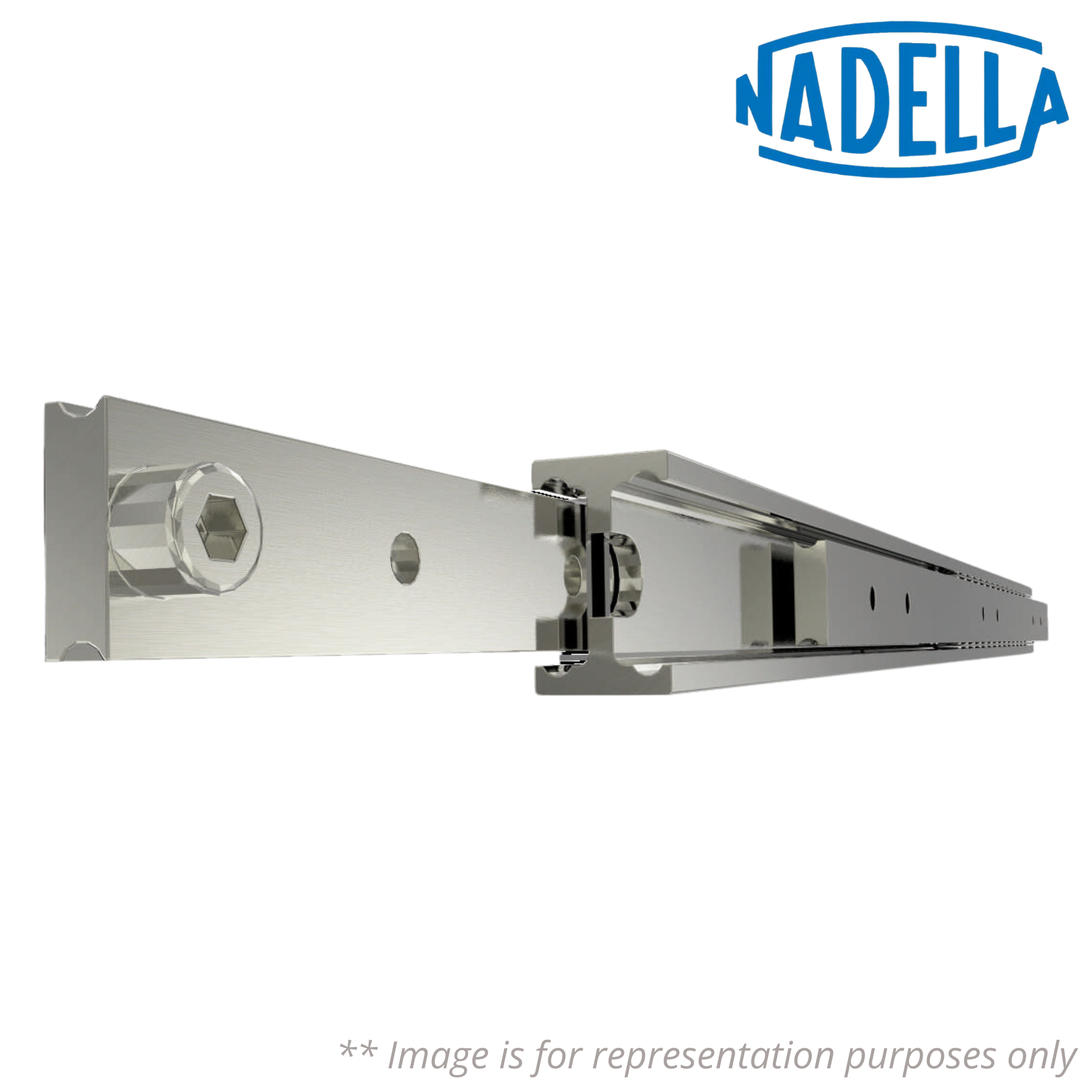

Item Number - NTS70-36-1150 NADELLA
Category - Telescopic Rail Full Extension Heavy Load

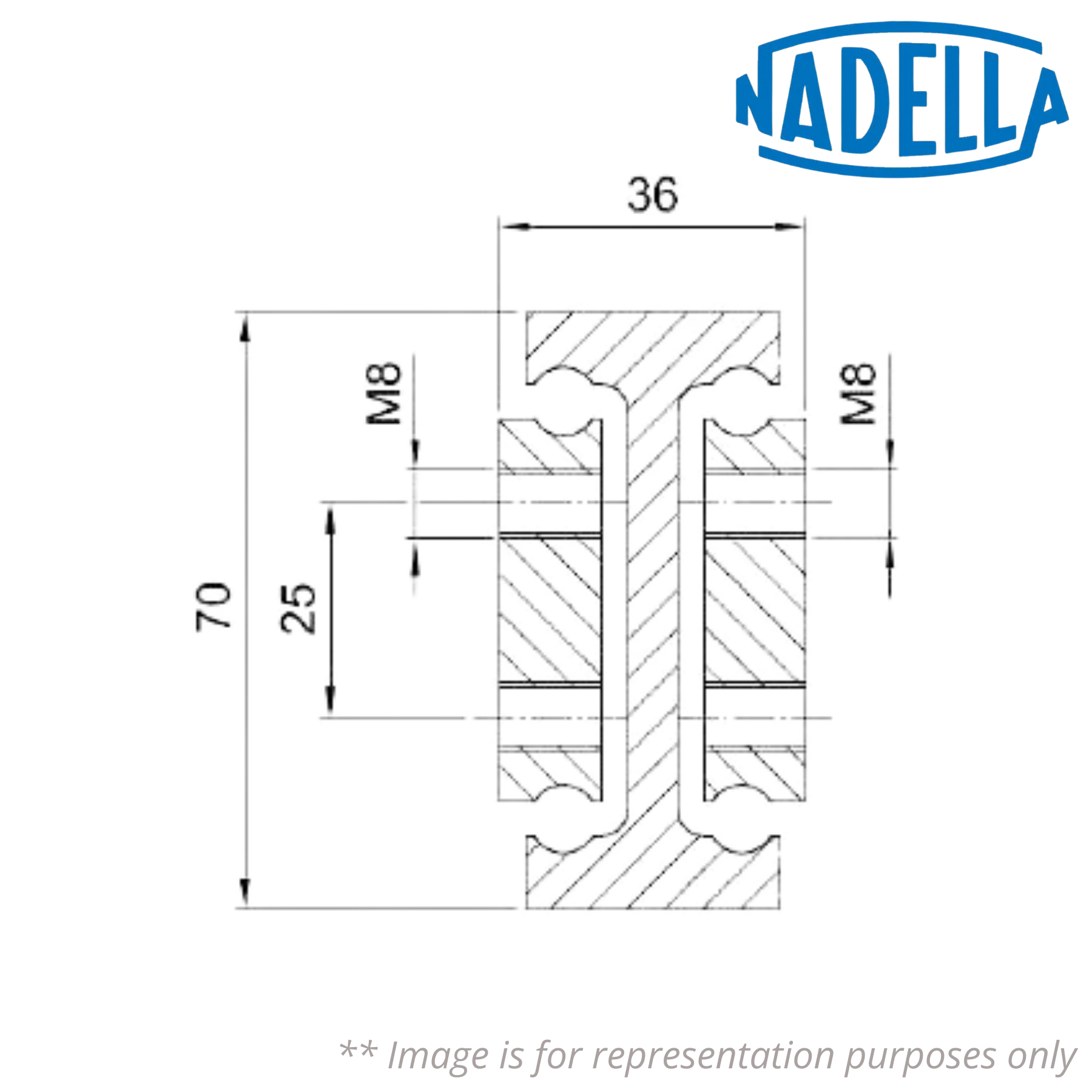

Principal Dimensions & Load Ratings (Metric):
Hole Separation (C) - 450 mm
Length (L) - 1150 mm
Extension (E) - 1150 mm
Load Capacity for Pair of Rails (Cy) - 5200 N
Load Capacity for Pair of Rails (Cz) - 2600 N
Net Weight - 15.2 kg
Description of Prefix:
NTS - Telescopic rails full extension heavy load
Other salient points to be noted:
• Material - Zinc-Plated Steel
• Availble on request - Aluminum, AISI 304 or 316 stainless steel
♦♦ Images are for representation purposes only
Item Number - NTS70-36-1150 NADELLA
Category - Telescopic Rail Full Extension Heavy Load
Principal Dimensions & Load Ratings (Metric):
Hole Separation (C) - 450 mm
Length (L) - 1150 mm
Extension (E) - 1150 mm
Load Capacity for Pair of Rails (Cy) - 5200 N
Load Capacity for Pair of Rails (Cz) - 2600 N
Net Weight - 15.2 kg
Description of Prefix:
NTS - Telescopic rails full extension heavy load
Other salient points to be noted:
• Material - Zinc-Plated Steel
• Availble on request - Aluminum, AISI 304 or 316 stainless steel
♦♦ Images are for representation purposes only
