Description
Brand - NADELLA
Item Number - NTS63-58H-1410-VRM NADELLA
Category - Hardened Telescopic Rails Full Extension

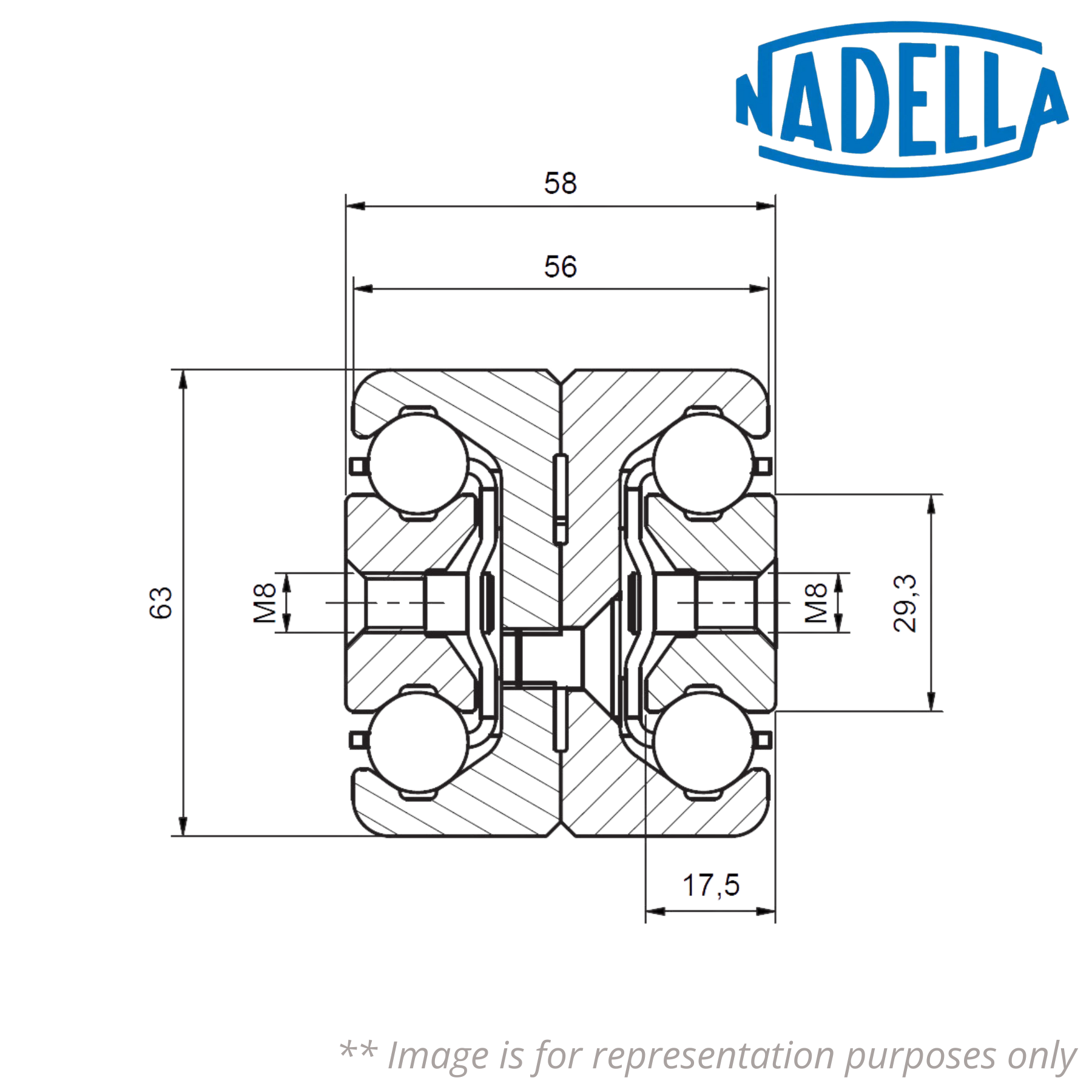

Principal Dimensions & Load Ratings (Metric):
Length (L) - 1410 mm
Extension (E) - 1402 mm
Load Capacity for Pair of Rails (Cy) - 10624 N
Load Capacity for Pair of Rails (Cz) - 3305 N
Dynamic Load for Lifetime calculation (Cdyn) - 8239 N
Weight - 25.61 kg
Description of Suffixes and Prefixes:
NTS - Full Extension telescopic rails NTS-H, with a stroke equal to 100% of the installation length
VRM - Forward and Backward Extension Including Carrier for Inner Rail
♦♦ Images are for representation purposes only
Item Number - NTS63-58H-1410-VRM NADELLA
Category - Hardened Telescopic Rails Full Extension
Principal Dimensions & Load Ratings (Metric):
Length (L) - 1410 mm
Extension (E) - 1402 mm
Load Capacity for Pair of Rails (Cy) - 10624 N
Load Capacity for Pair of Rails (Cz) - 3305 N
Dynamic Load for Lifetime calculation (Cdyn) - 8239 N
Weight - 25.61 kg
Description of Suffixes and Prefixes:
NTS - Full Extension telescopic rails NTS-H, with a stroke equal to 100% of the installation length
VRM - Forward and Backward Extension Including Carrier for Inner Rail
♦♦ Images are for representation purposes only
