Description
Brand - NADELLA
Item Number - NTS63-58H-1250-VRM NADELLA
Category - Hardened Telescopic Rails Full Extension
Principal Dimensions & Load Ratings (Metric):
Length (L) - 1250 mm
Extension (E) - 1242 mm
Load Capacity for Pair of Rails (Cy) - 11881 N
Load Capacity for Pair of Rails (Cz) - 3692 N
Dynamic Load for Lifetime calculation (Cdyn) - 8551 N
Weight - 22.7 kg
Description of Suffixes and Prefixes:
NTS - Full Extension telescopic rails NTS-H, with a stroke equal to 100% of the installation length
VRM - Forward and Backward Extension Including Carrier for Inner Rail

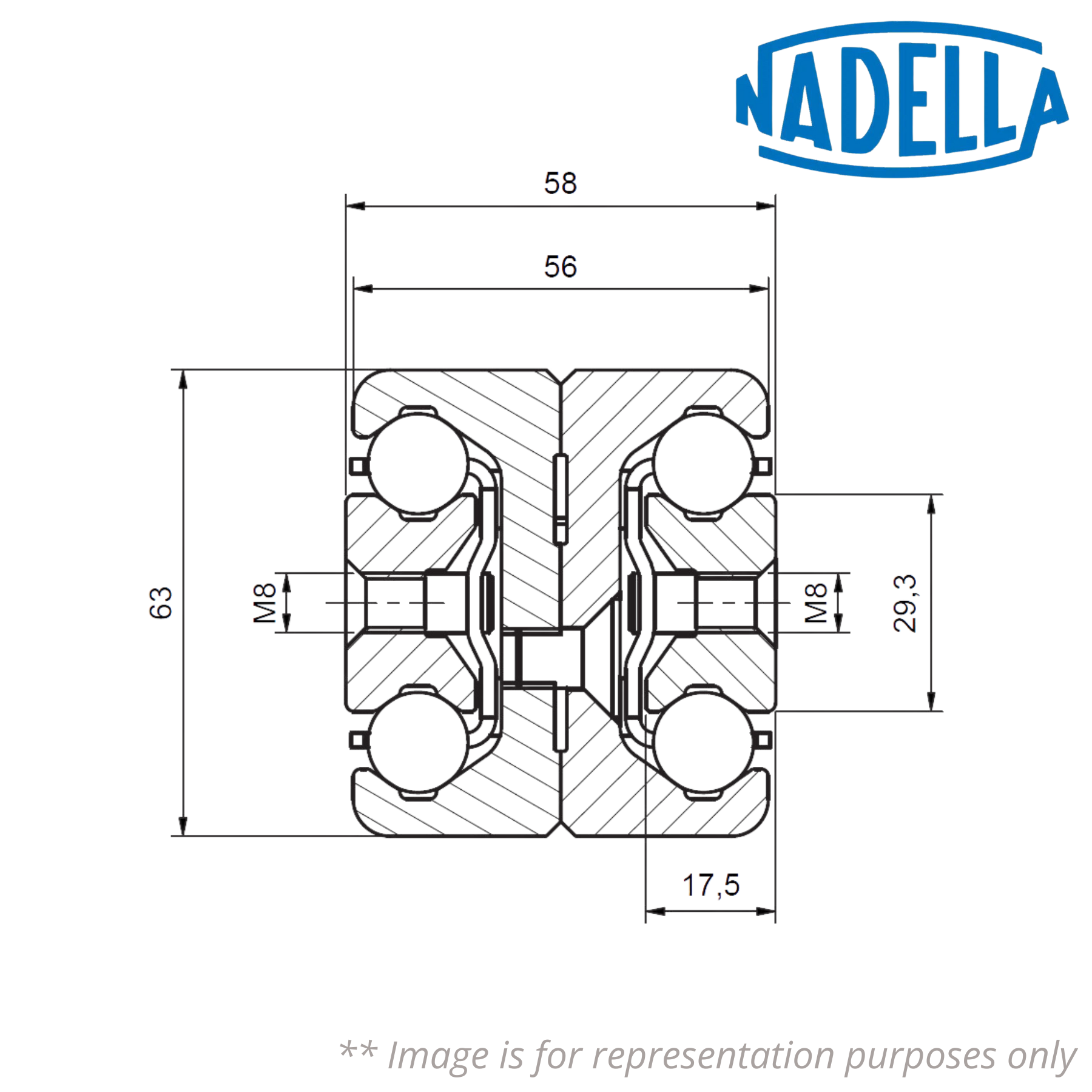

♦♦ Images are for representation purposes only
