Description
Brand - NADELLA
Item Number - NTS63-58H-1170 NADELLA
Category - Hardened Telescopic Rails Full Extension
Principal Dimensions & Load Ratings (Metric):
Length (L) - 1170 mm
Extension (E) - 1226 mm
Load Capacity for Pair of Rails (Cy) - 12000 N
Load Capacity for Pair of Rails (Cz) - 3732 N
Dynamic Load for Lifetime calculation (Cdyn) - 8264 N
Weight - 22.33 kg
Description of Prefix:
NTS - Full Extension telescopic rails NTS-H, with a stroke equal to 100% of the installation length

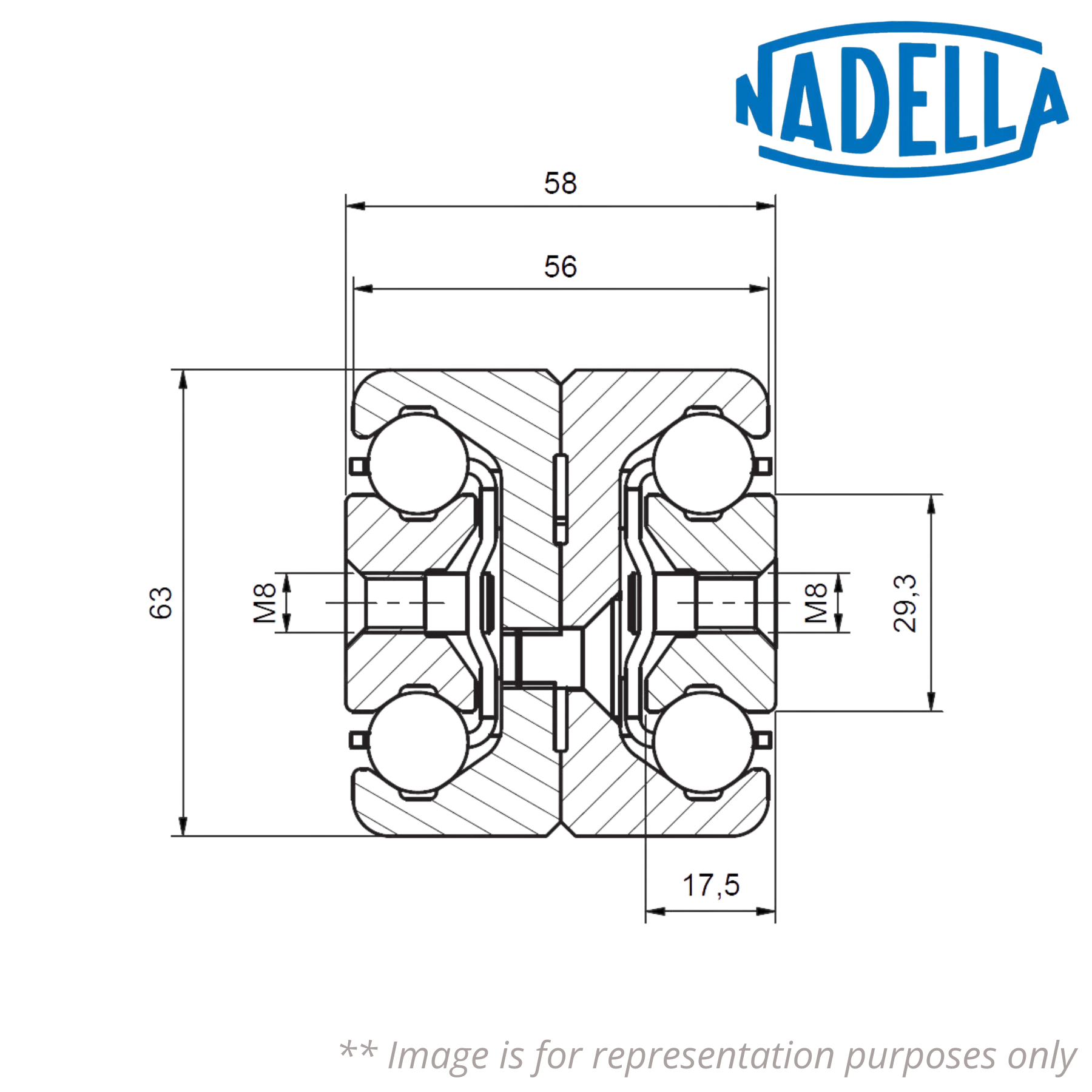

♦♦ Images are for representation purposes only
