Description
Brand - NADELLA
Item Number - NTS50-30-1200 NADELLA
Category - Telescopic Rail Full Extension Heavy Load

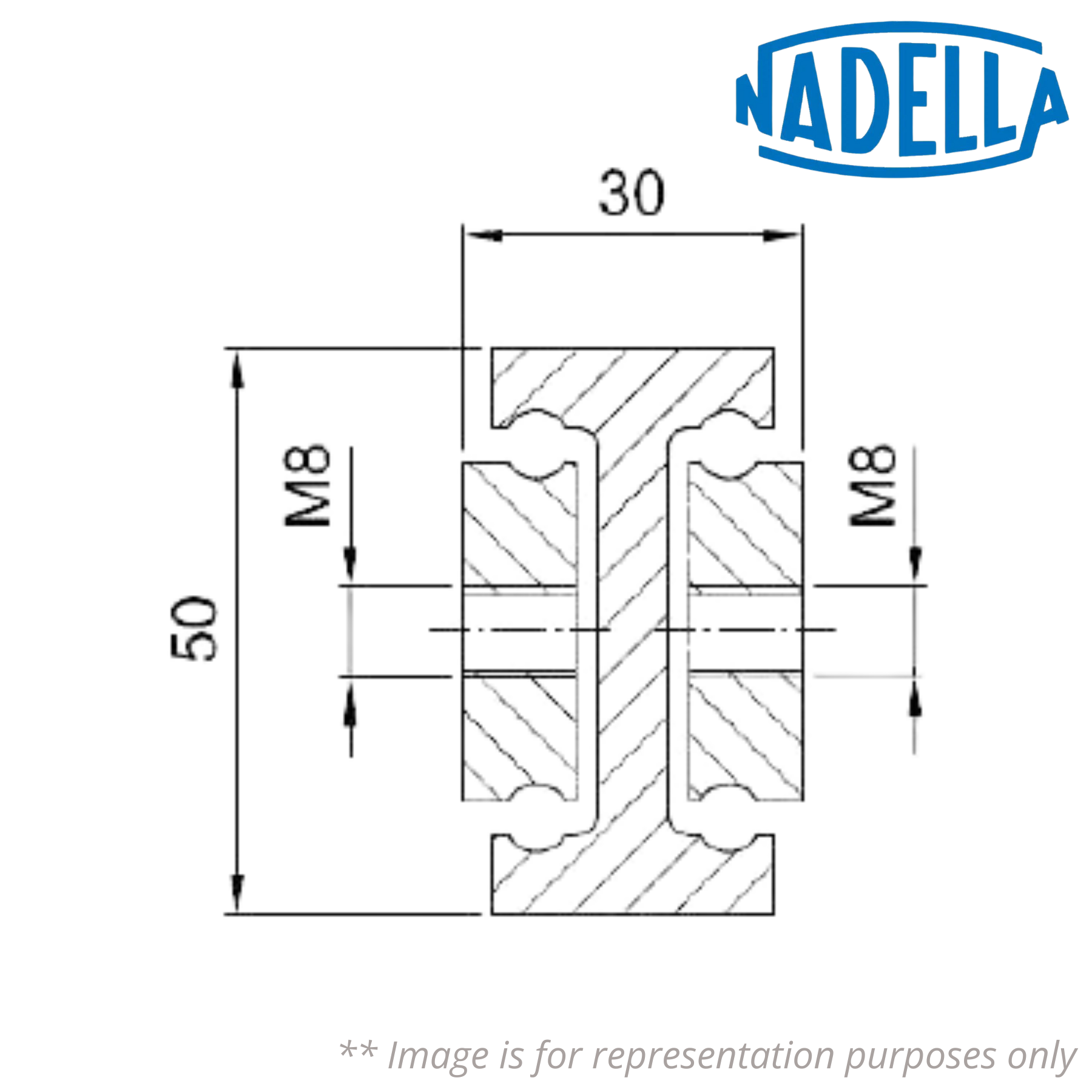

Principal Dimensions & Load Ratings (Metric):
Hole Separation (C) - 475 mm
Length (L) - 1200 mm
Extension (E) - 1200 mm
Load Capacity for Pair of Rails (Cy) - 1650 N
Load Capacity for Pair of Rails (Cz) - 825 N
Net Weight - 11 kg
Description of Prefix:
NTS - Telescopic rails full extension heavy load
Other salient points to be noted:
• Material - Zinc-Plated Steel
• Availble on request - Aluminum, AISI 304 or 316 stainless steel

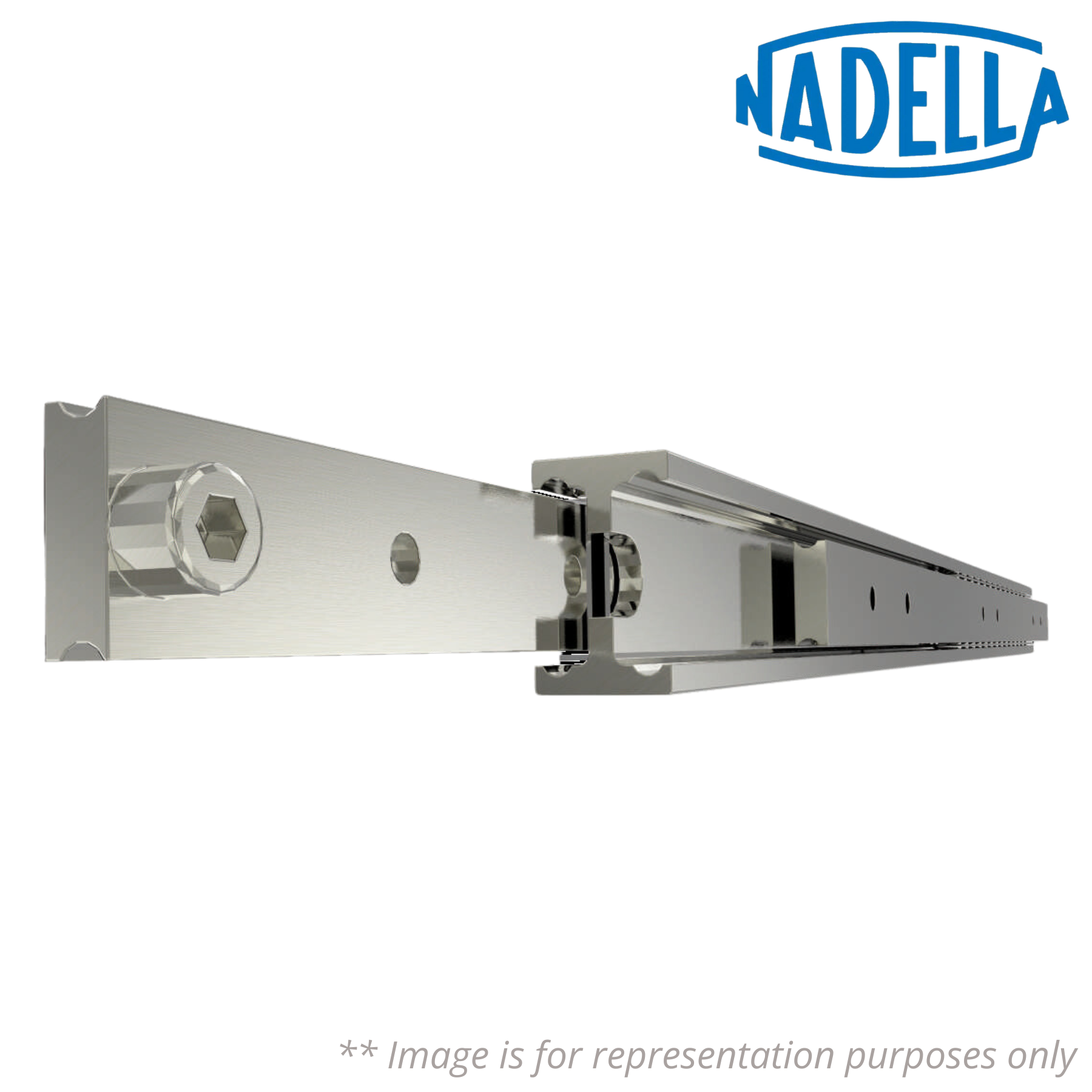

♦♦ Images are for representation purposes only
Item Number - NTS50-30-1200 NADELLA
Category - Telescopic Rail Full Extension Heavy Load
Principal Dimensions & Load Ratings (Metric):
Hole Separation (C) - 475 mm
Length (L) - 1200 mm
Extension (E) - 1200 mm
Load Capacity for Pair of Rails (Cy) - 1650 N
Load Capacity for Pair of Rails (Cz) - 825 N
Net Weight - 11 kg
Description of Prefix:
NTS - Telescopic rails full extension heavy load
Other salient points to be noted:
• Material - Zinc-Plated Steel
• Availble on request - Aluminum, AISI 304 or 316 stainless steel
♦♦ Images are for representation purposes only
