Description
Brand - NADELLA
Item Number - NTS43-44H-290 NADELLA
Category - Hardened Telescopic Rails Full Extension
Principal Dimensions & Load Ratings (Metric):
Length (L) - 290 mm
Extension (E) - 316 mm
Load Capacity for Pair of Rails (Cy) - 2440 N
Load Capacity for Pair of Rails (Cz) - 1630 N
Dynamic Load for Lifetime calculation (Cdyn) - 1181 N
Weight - 3.07 kg
Description of Prefix:
NTS - Full Extension telescopic rails NTS-H, with a stroke equal to 100% of the installation length

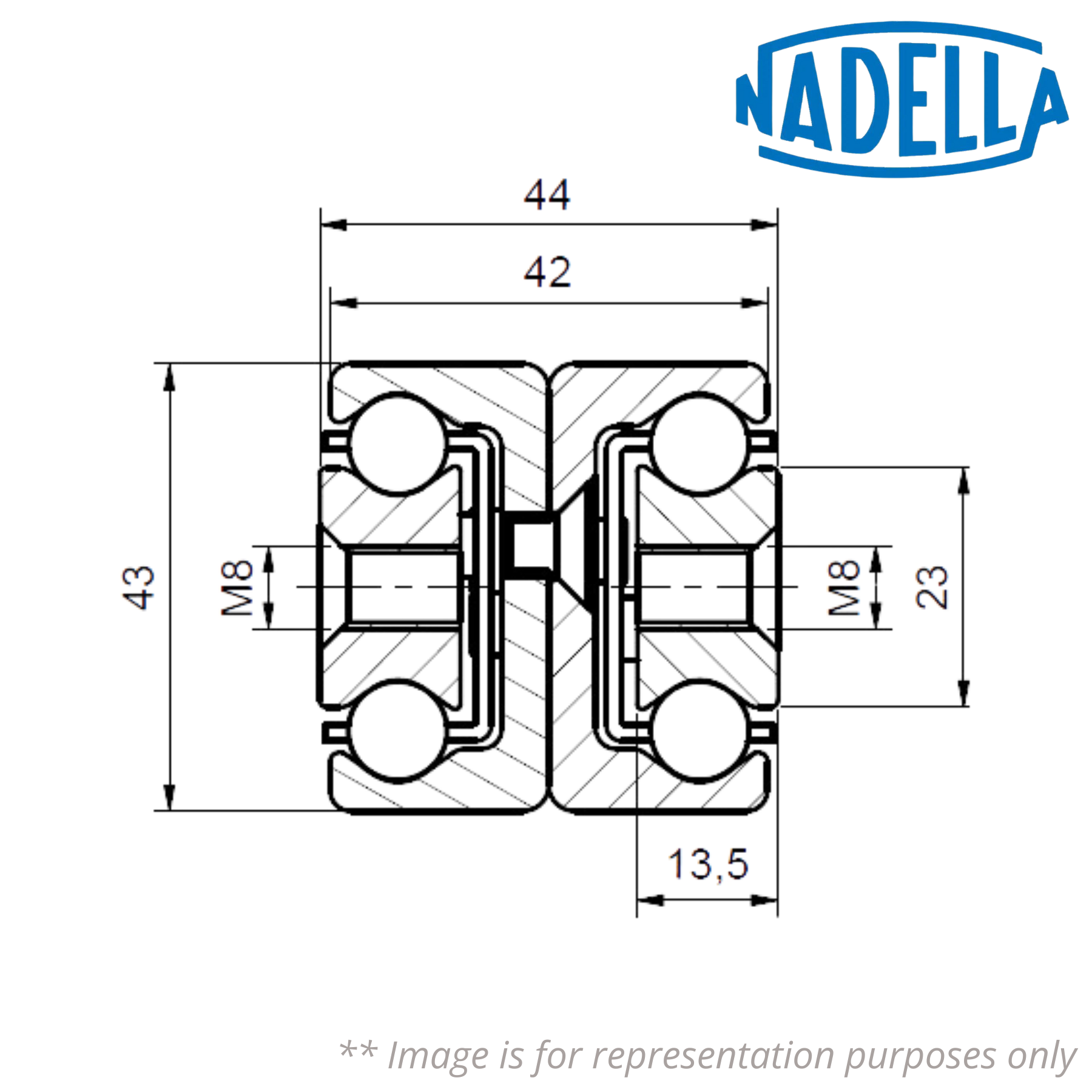

♦♦ Images are for representation purposes only
