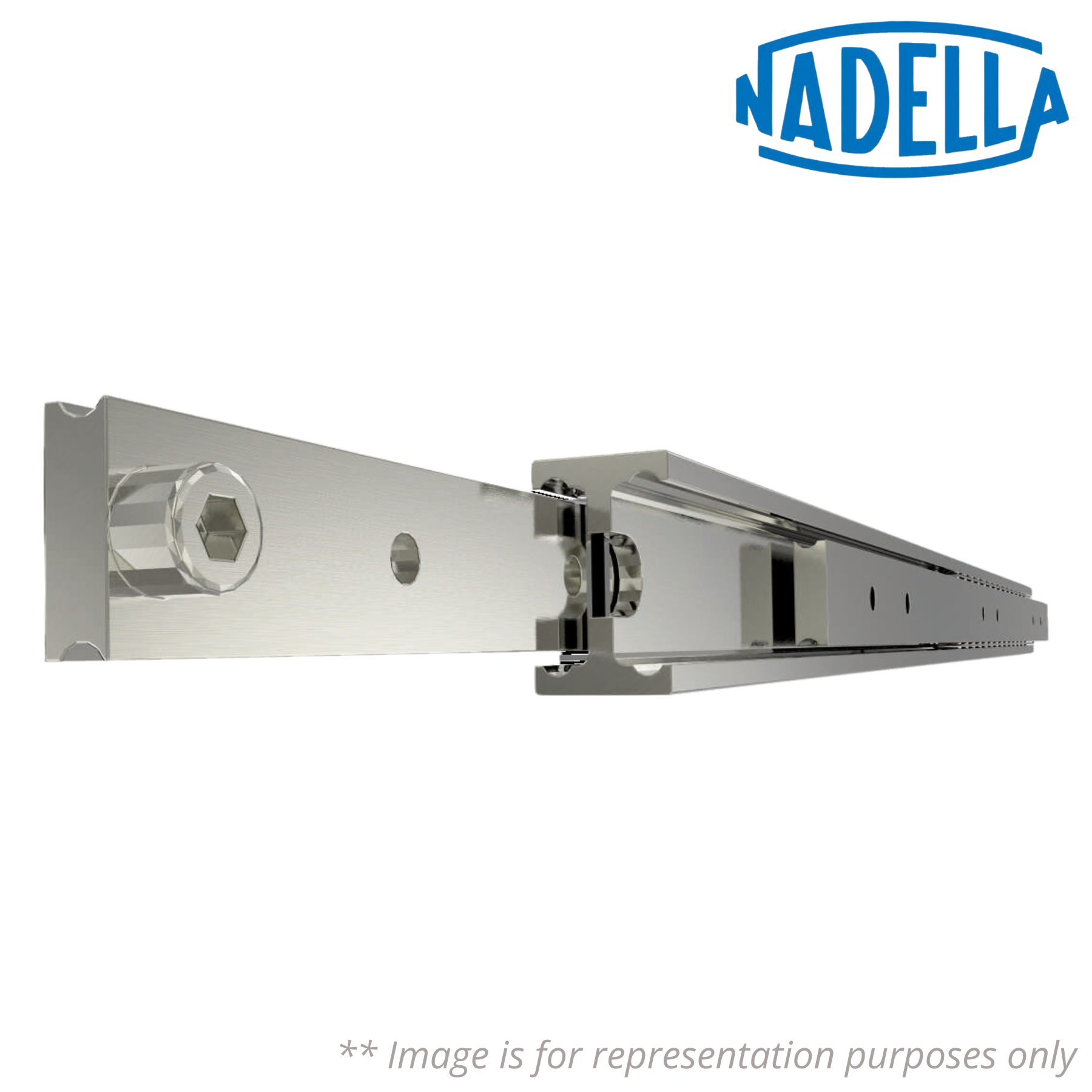

Description
Brand - NADELLA
Item Number - NTS200-72-800 NADELLA
Category - Telescopic Rails Full Extension Heavy Load
Hole Separation (B) mm - 200
Length (L) mm - 800
Extension (E) mm - 800
Load Capacity for Pair of Rails (Cy) N - 17000
Load Capacity for Pair of Rails (Cz) N - 8500
Maximum Load Per pair (N) - 17000
Net Weight (kg) - 74.1
