Description
Brand - NADELLA
Item Number - NTS150-56-1000 NADELLA

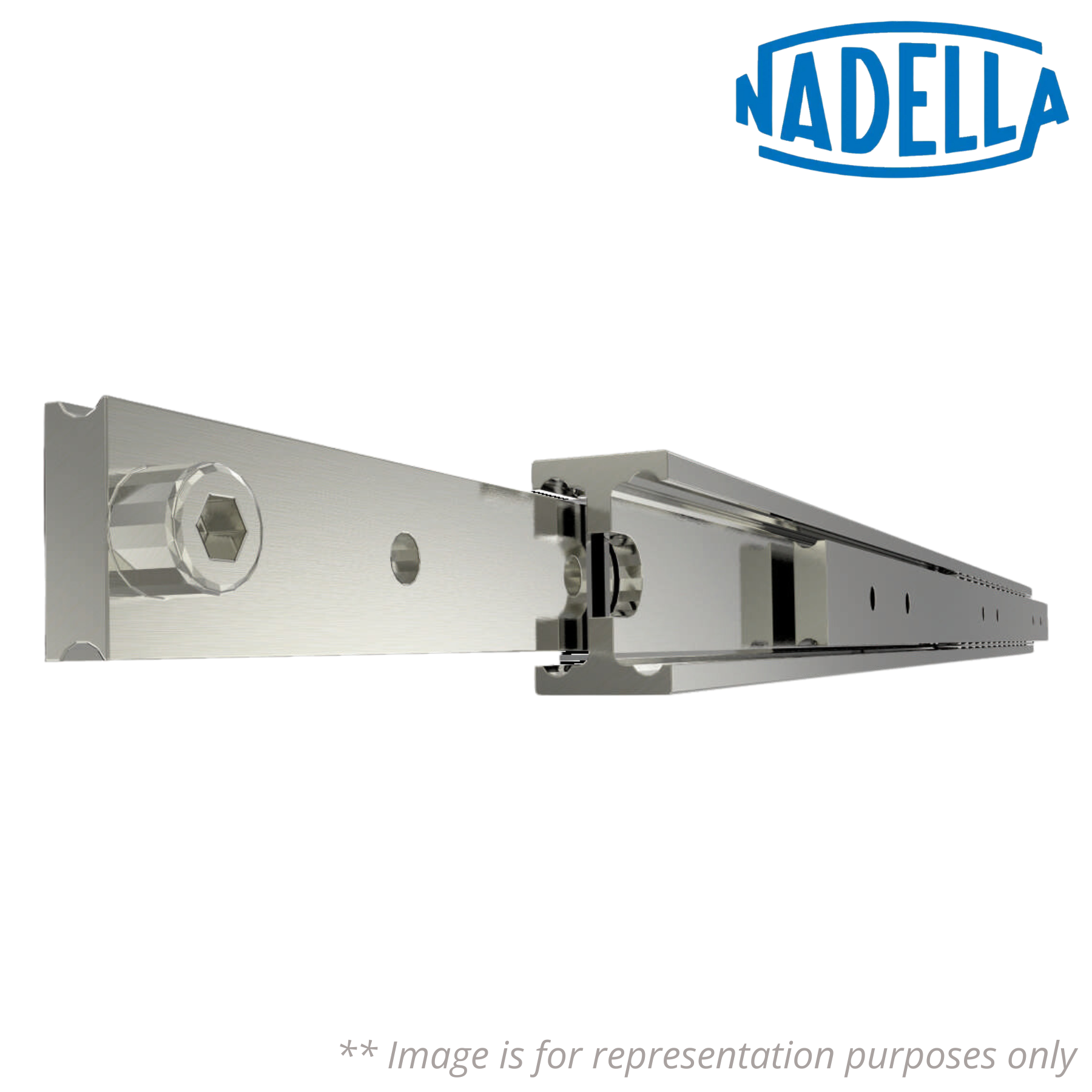

Category - Telescopic Rails Full Extension Heavy Load

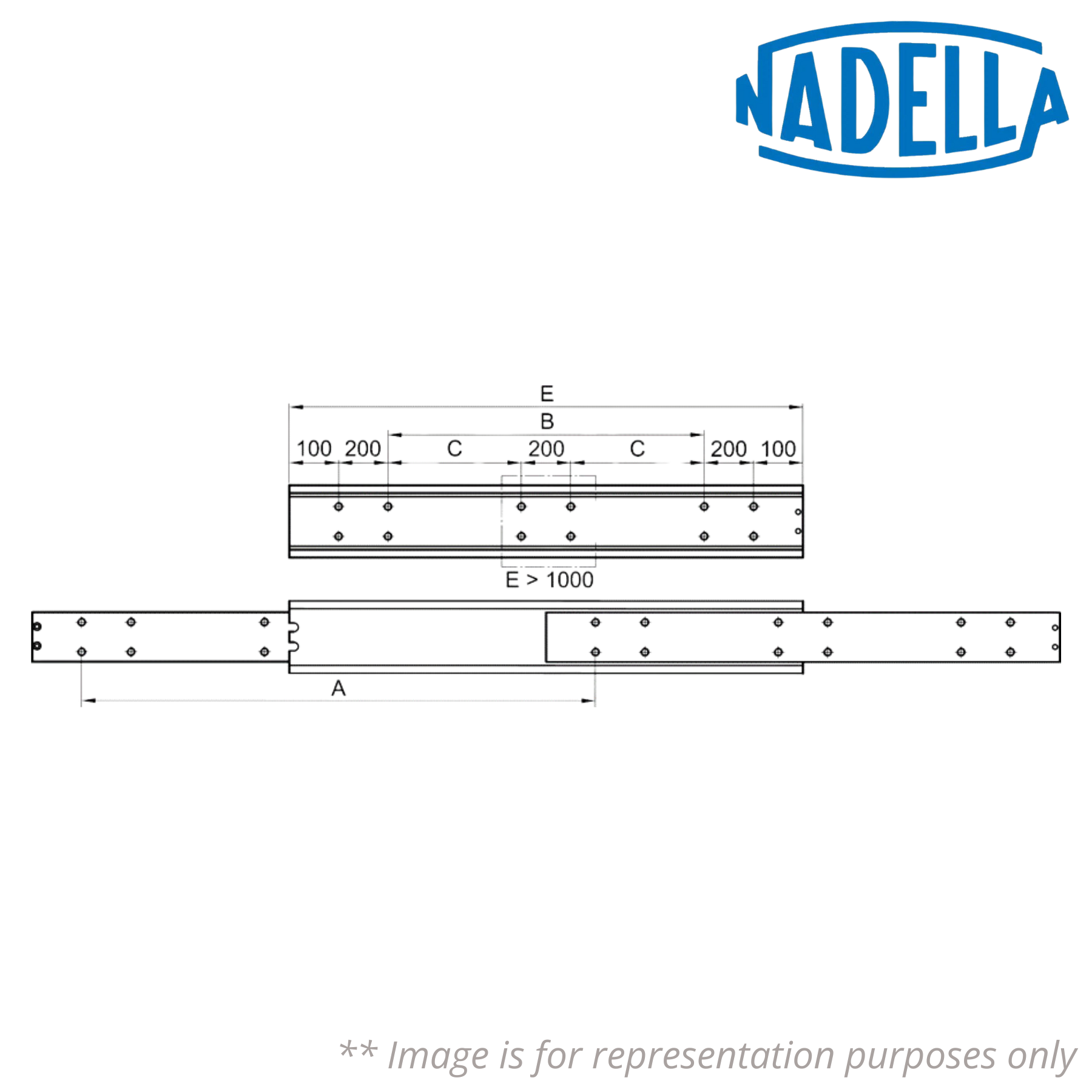

Hole Separation (B) mm - 400
Length (L) mm - 1000
Extension (E) mm - 1000
Load Capacity for Pair of Rails (Cy) N - 12500
Load Capacity for Pair of Rails (Cz) N - 6250
Maximum Load Per pair (N) - 12500
Net Weight (kg) - 55
