Description
Brand - NADELLA
Item Number - NTS120-44-950 NADELLA
Category - Telescopic Rails Full Extension Heavy Load

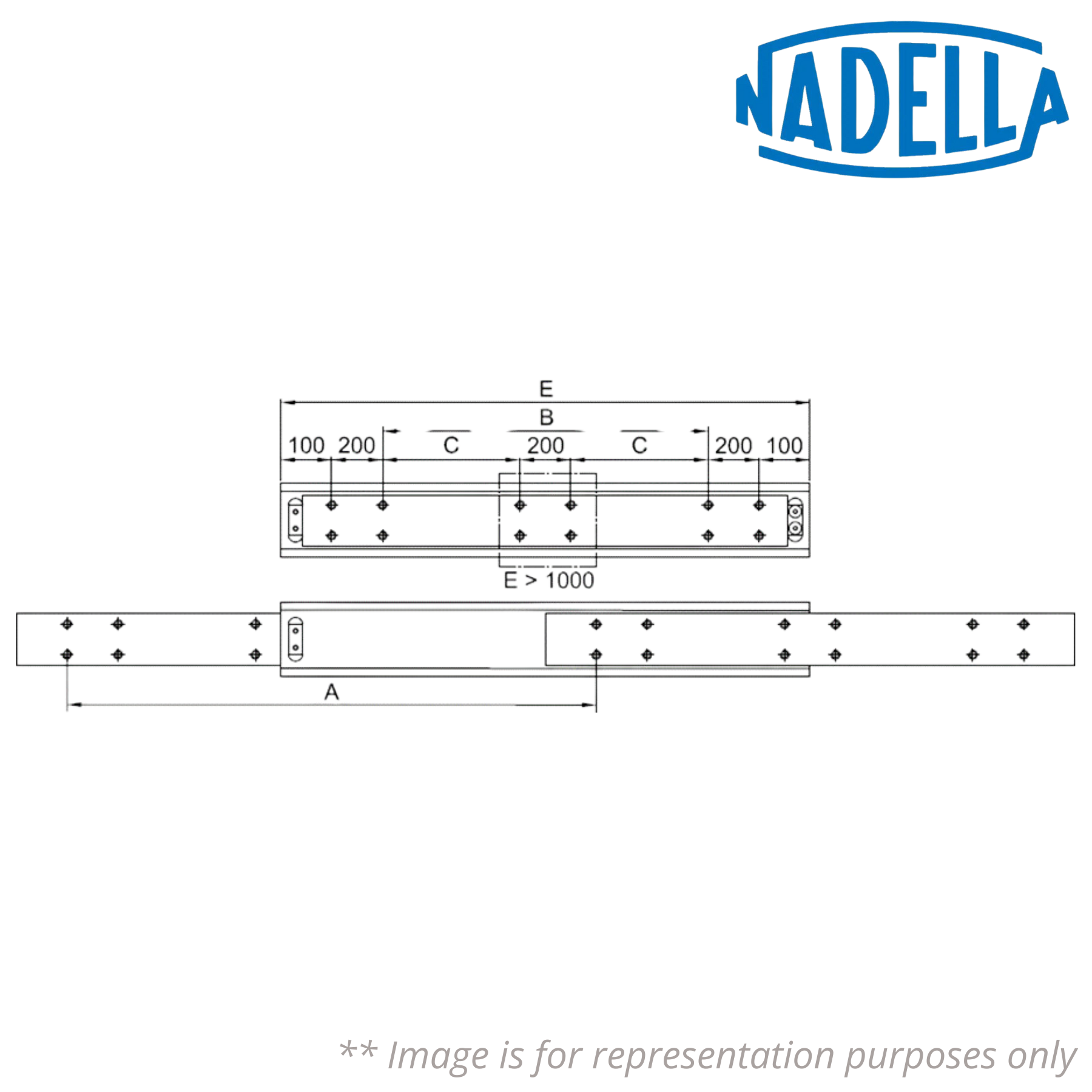

Hole Separation (B) mm - 350
Length (L) mm - 950
Extension (E) mm - 950
Load Capacity for Pair of Rails (Cy) N - 11050
Load Capacity for Pair of Rails (Cz) N - 5525
Maximum Load Per pair (N) - 11050
Net Weight (kg) - 31.7
