Description
Brand - NADELLA
Item Number - NTS120-44-1800 NADELLA
Category - Telescopic Rails Full Extension Heavy Load

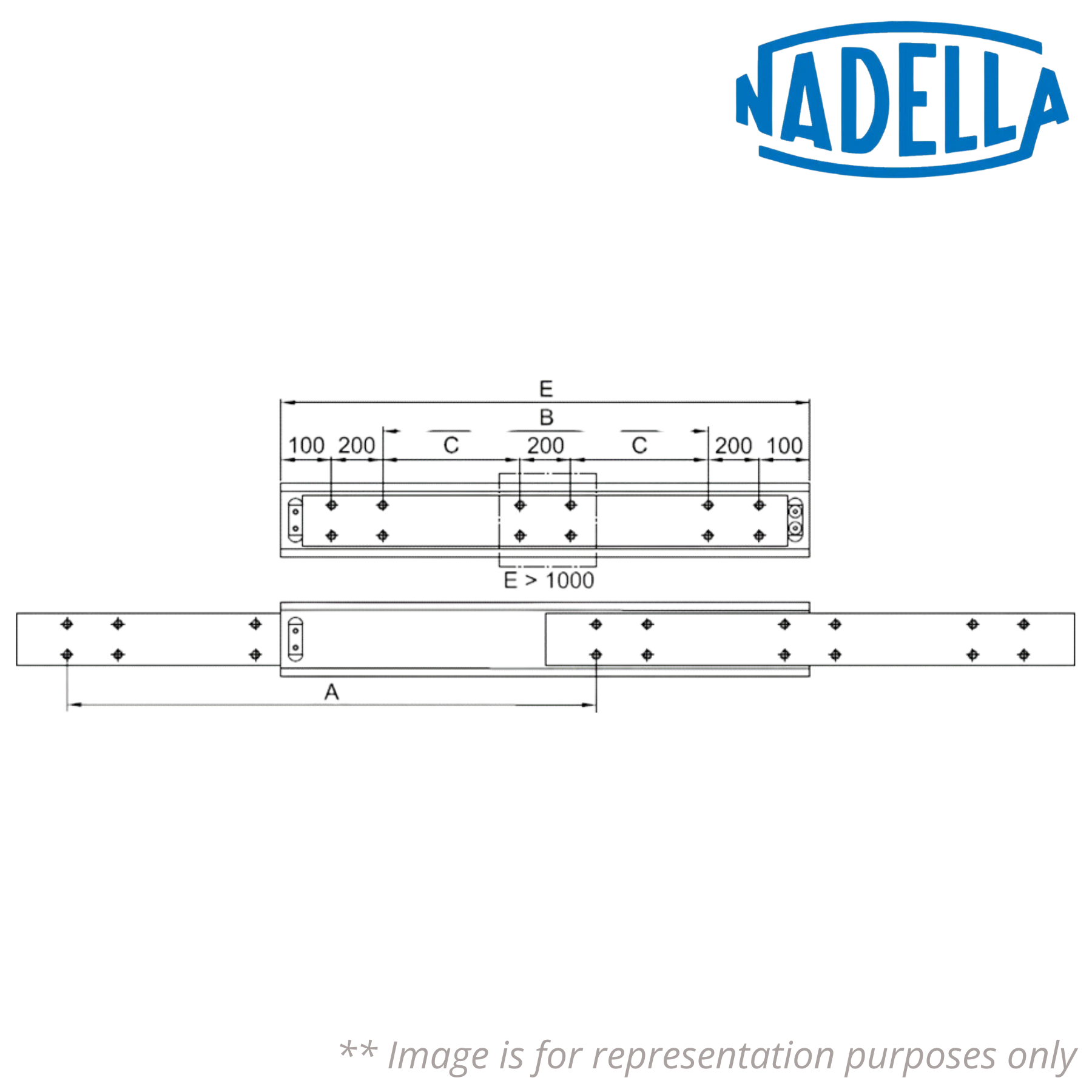

Hole Separation (C) mm - 500
Length (L) mm - 1800
Extension (E) mm - 1800
Load Capacity for Pair of Rails (Cy) N - 6100
Load Capacity for Pair of Rails (Cz) N - 3050
Maximum Load Per pair (N) - 6100
Net Weight (kg) - 60.2
