Description
Brand - NADELLA
Item Number - NTS100-44-800 NADELLA
Category - Telescopic Rails Full Extension Heavy Load

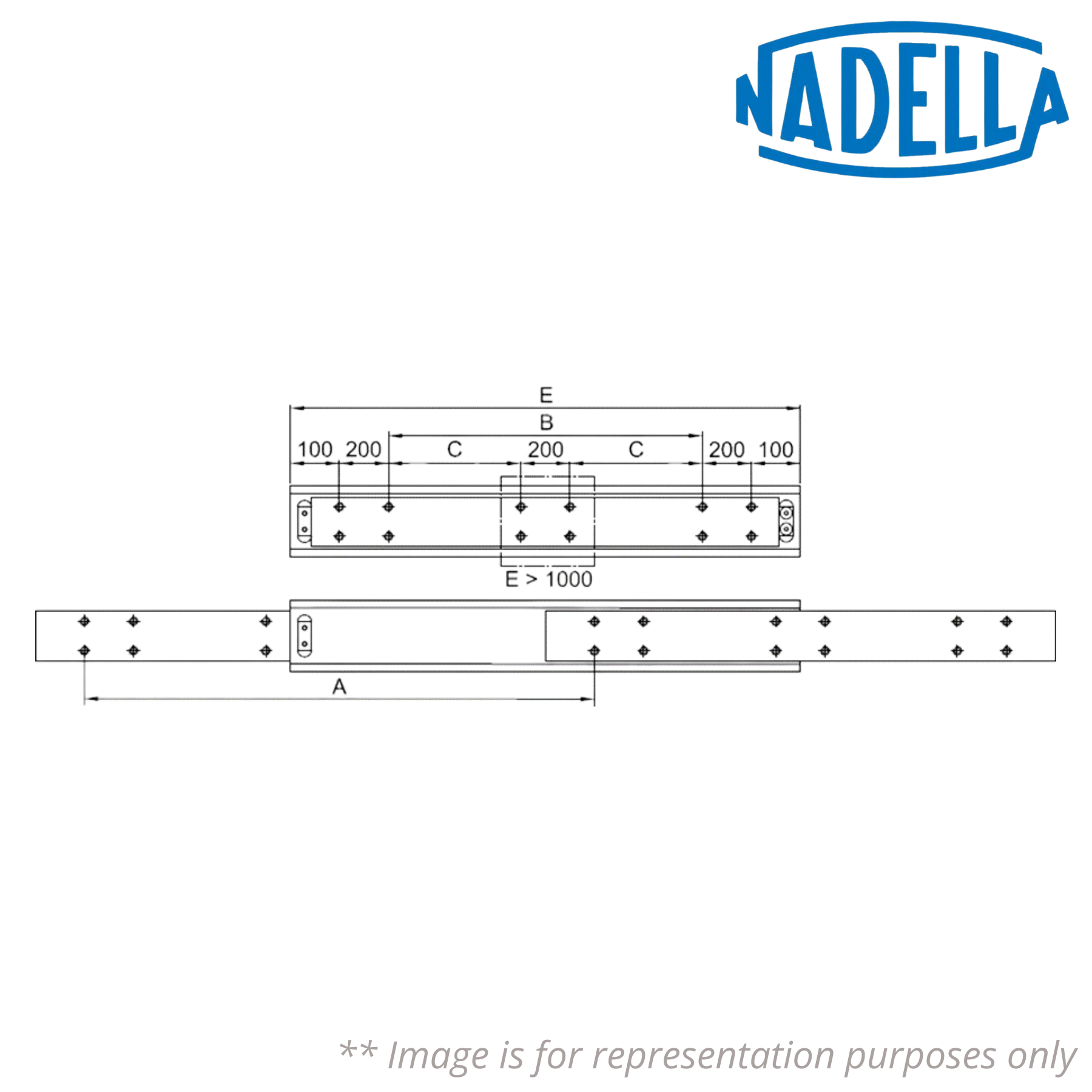

Hole Separation (B) mm - 200
Length (L) mm - 800
Extension (E) mm - 800
Load Capacity for Pair of Rails (Cy) N - 10500
Load Capacity for Pair of Rails (Cz) N - 5250
Maximum Load Per pair (N) - 10500
Net Weight (kg) - 22.1
