Description
Brand - NADELLA

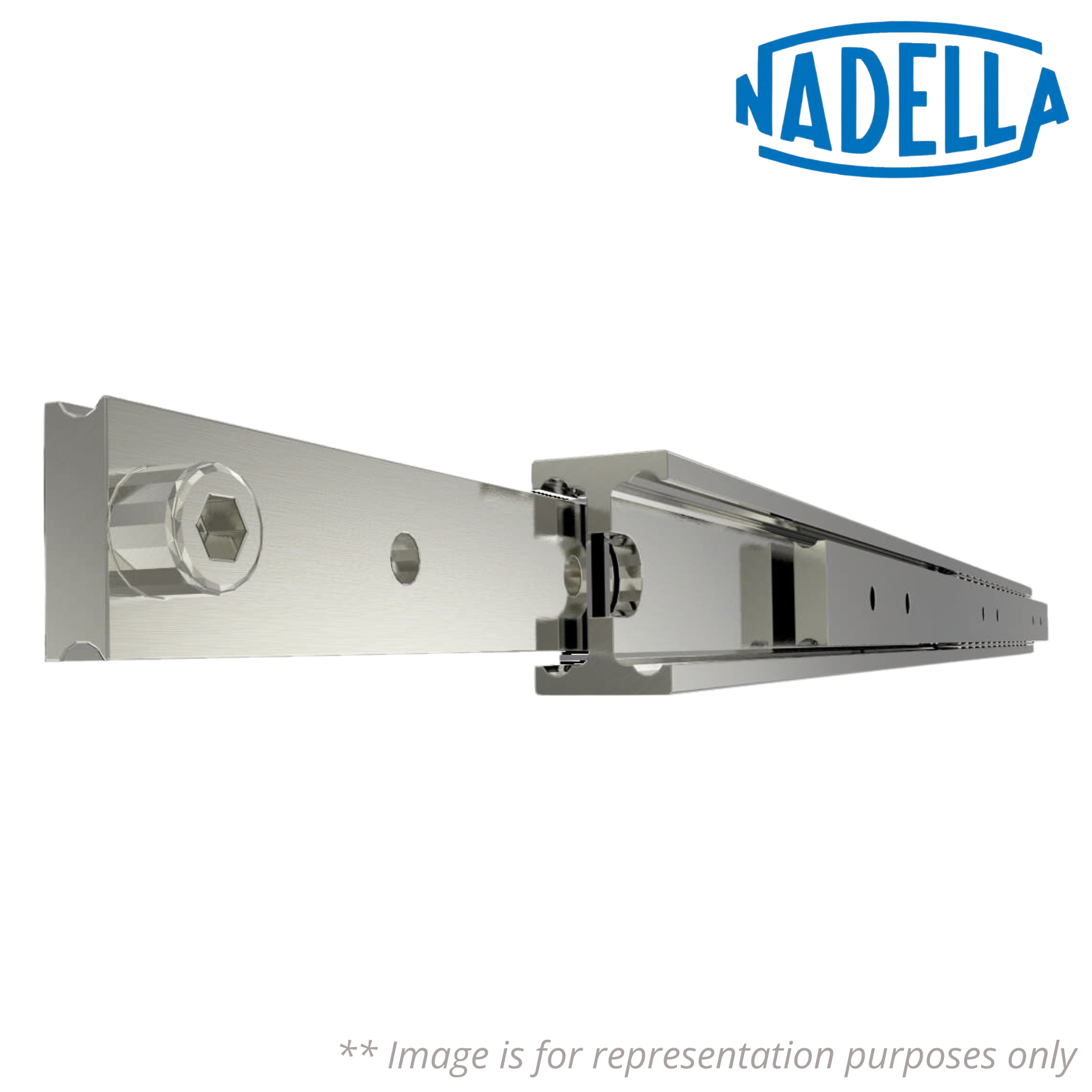

Item Number - NTS100-44-2300 NADELLA
Category - Telescopic Rails Full Extension Heavy Load

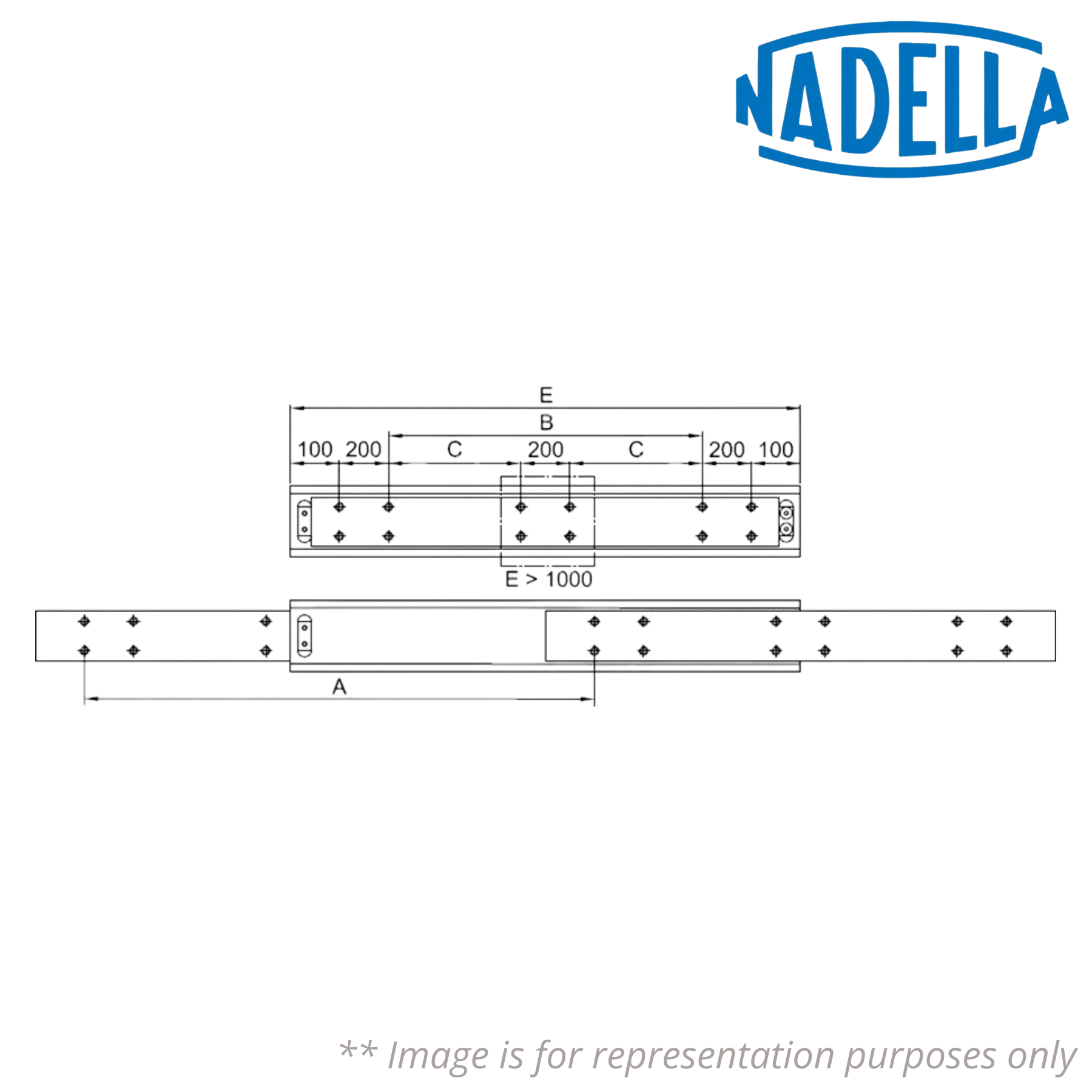

Hole Separation (C) mm - 750
Length (L) mm - 2300
Extension (E) mm - 2300
Load Capacity for Pair of Rails (Cy) N - 2300
Load Capacity for Pair of Rails (Cz) N - 1150
Maximum Load Per pair (N) - 3200
Net Weight (kg) - 63.7
