Description
Brand - NADELLA

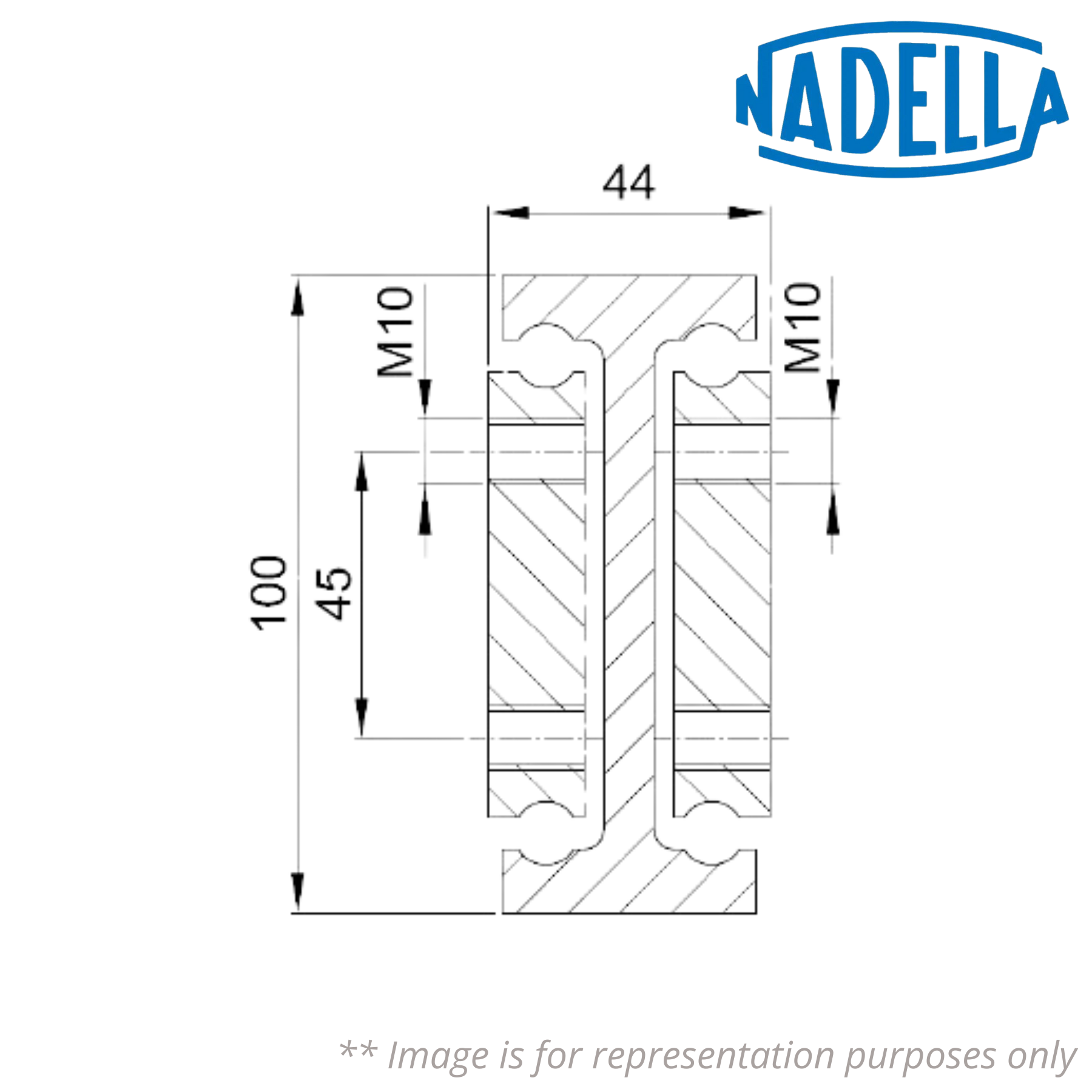

Item Number - NTS100-44-1400 NADELLA
Category - Telescopic Rails Full Extension Heavy Load

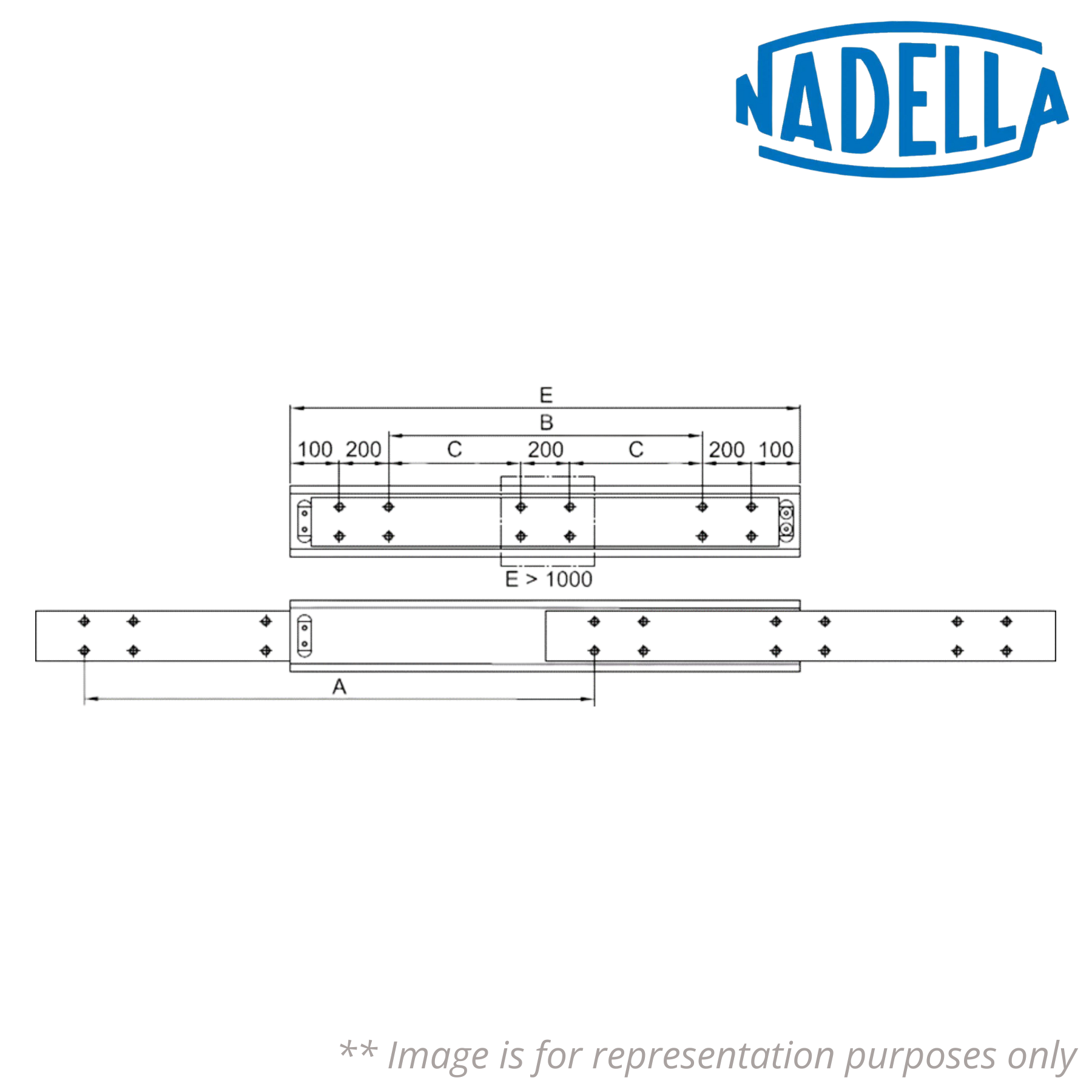

Hole Separation (C) mm - 300
Length (L) mm - 1400
Extension (E) mm - 1400
Load Capacity for Pair of Rails (Cy) N - 7300
Load Capacity for Pair of Rails (Cz) N - 3650
Maximum Load Per pair (N) - 7300
Net Weight (kg) - 38.7
