Description
Brand - NADELLA
Item Number - NTS100-44-1200 NADELLA
Category - Telescopic Rails Full Extension Heavy Load

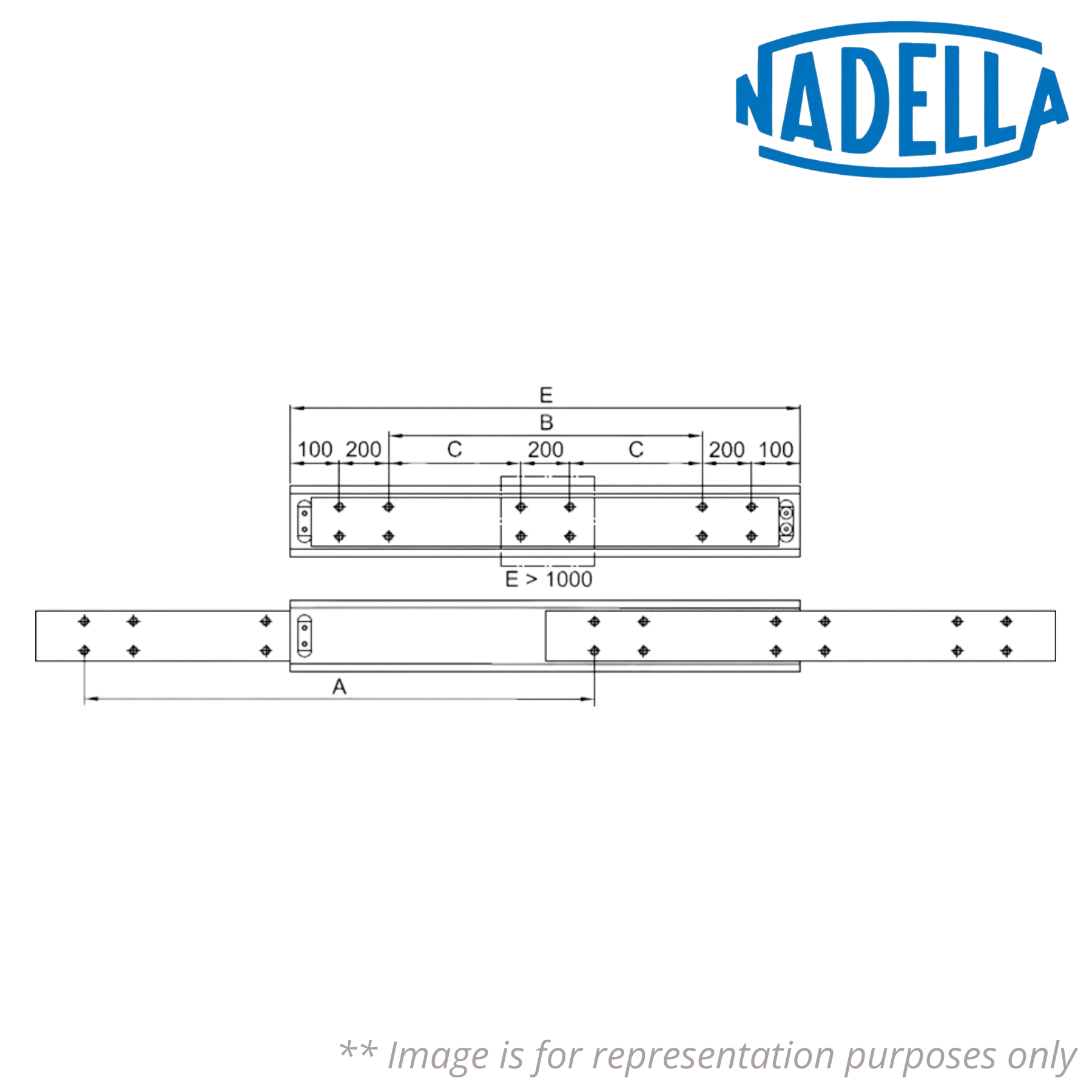

Hole Separation (C) mm - 200
Length (L) mm - 1200
Extension (E) mm - 1200
Load Capacity for Pair of Rails (Cy) N - 8500
Load Capacity for Pair of Rails (Cz) N - 4250
Maximum Load Per pair (N) - 8500
Net Weight (kg) - 33.2
