Description
Brand - NADELLA
Item Number - NTA72-21.5T-950 NADELLA
Category - Telescopic Rails Partial Extension
Principal Dimensions & Load Ratings (Metric):
Hole Separation (c) - 350 mm
Length (L) - 950 mm
Extension (E) - 570 mm
Load Capacity for Pair of Rails (Cy) - 2425 N
Load Capacity for Pair of Rails (Cz) - 1213 N
Net Weight - 7.8 kg
Description of Prefix:
NTA - Telescopic rails partial extension

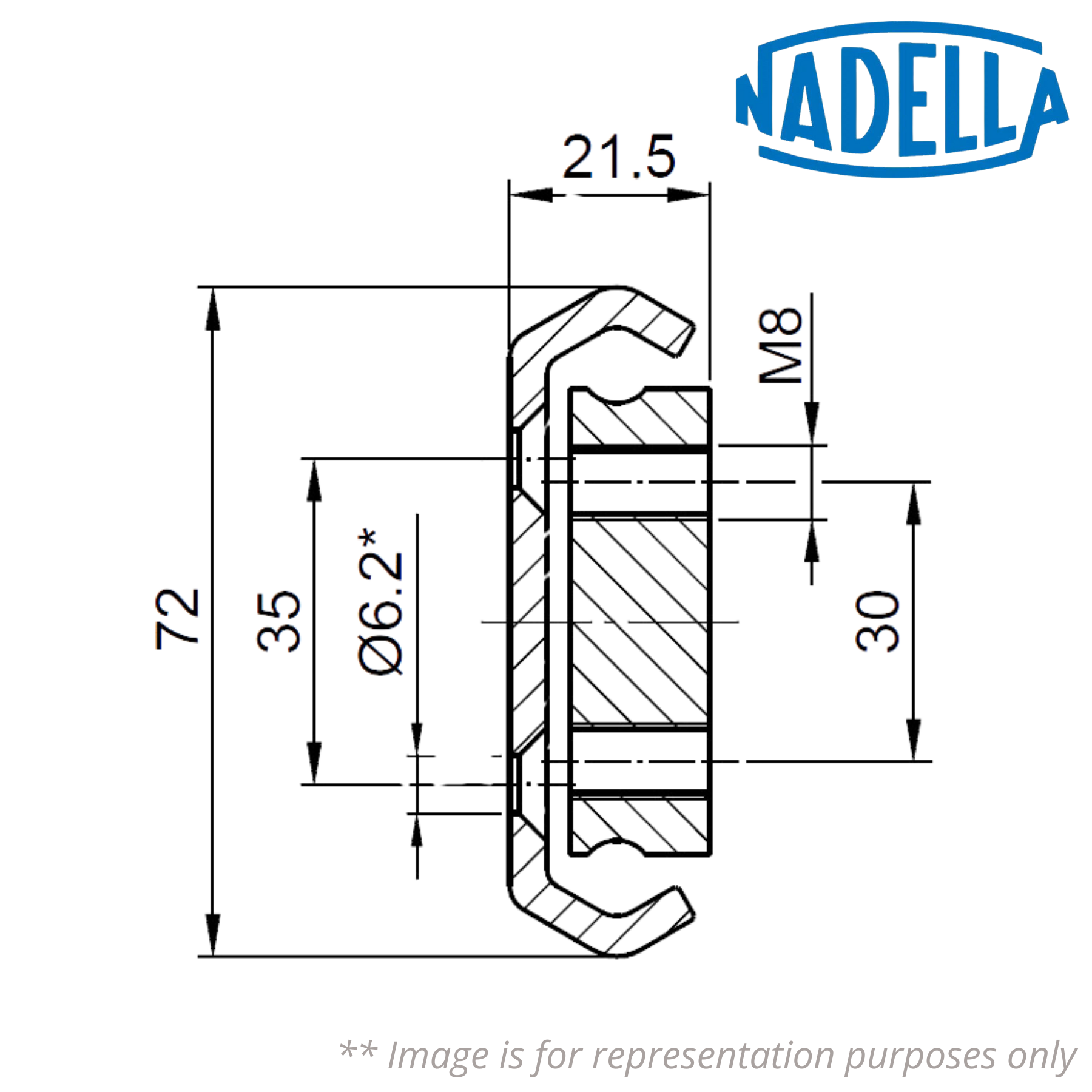

♦♦ Images are for representation purposes only
Item Number - NTA72-21.5T-950 NADELLA
Category - Telescopic Rails Partial Extension
Principal Dimensions & Load Ratings (Metric):
Hole Separation (c) - 350 mm
Length (L) - 950 mm
Extension (E) - 570 mm
Load Capacity for Pair of Rails (Cy) - 2425 N
Load Capacity for Pair of Rails (Cz) - 1213 N
Net Weight - 7.8 kg
Description of Prefix:
NTA - Telescopic rails partial extension
♦♦ Images are for representation purposes only
