Description
Brand - NADELLA
Item Number - NTA48-15T-900 NADELLA
Category - Telescopic Rails Partial Extension

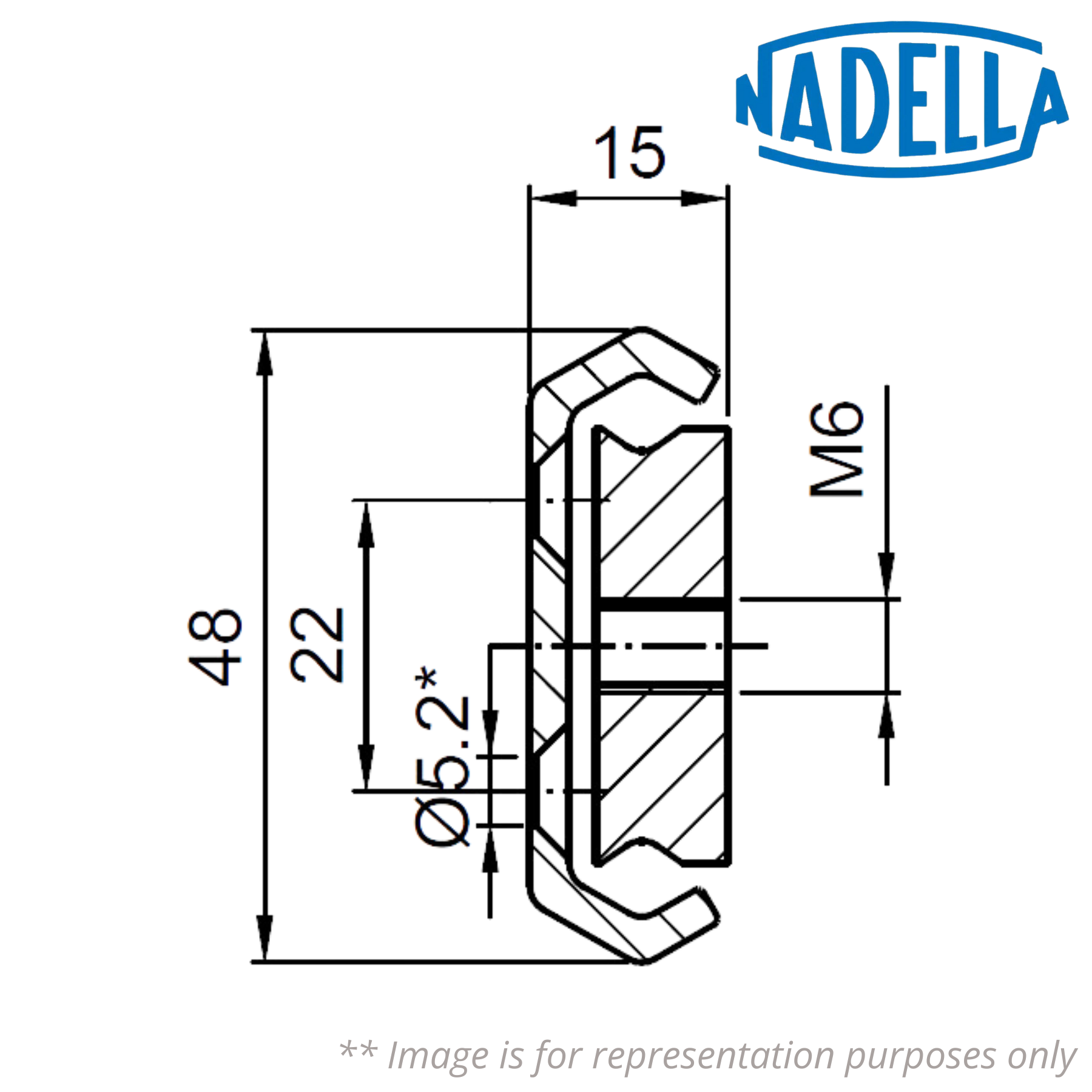

Principal Dimensions & Load Ratings (Metric):
Hole Separation (c) - 450 mm
Length (L) - 900 mm
Extension (E) - 600 mm
Load Capacity for Pair of Rails (Cy) - 700 N
Load Capacity for Pair of Rails (Cz) - 350 N
Net Weight - 3.9 kg
Description of Prefix:
NTA - Telescopic rails partial extension

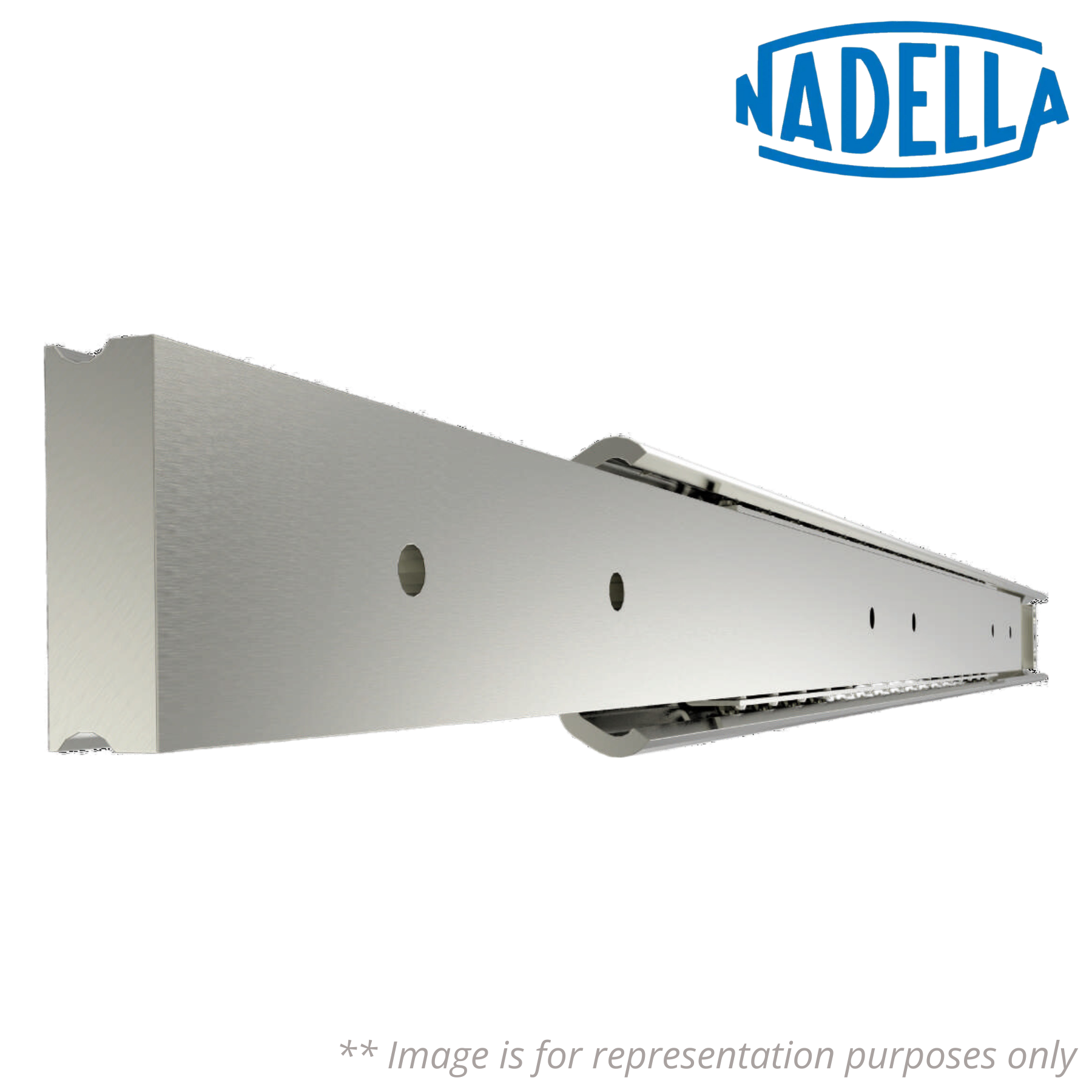

♦♦ Images are for representation purposes only
Item Number - NTA48-15T-900 NADELLA
Category - Telescopic Rails Partial Extension
Principal Dimensions & Load Ratings (Metric):
Hole Separation (c) - 450 mm
Length (L) - 900 mm
Extension (E) - 600 mm
Load Capacity for Pair of Rails (Cy) - 700 N
Load Capacity for Pair of Rails (Cz) - 350 N
Net Weight - 3.9 kg
Description of Prefix:
NTA - Telescopic rails partial extension
♦♦ Images are for representation purposes only
