Description
Brand - NADELLA

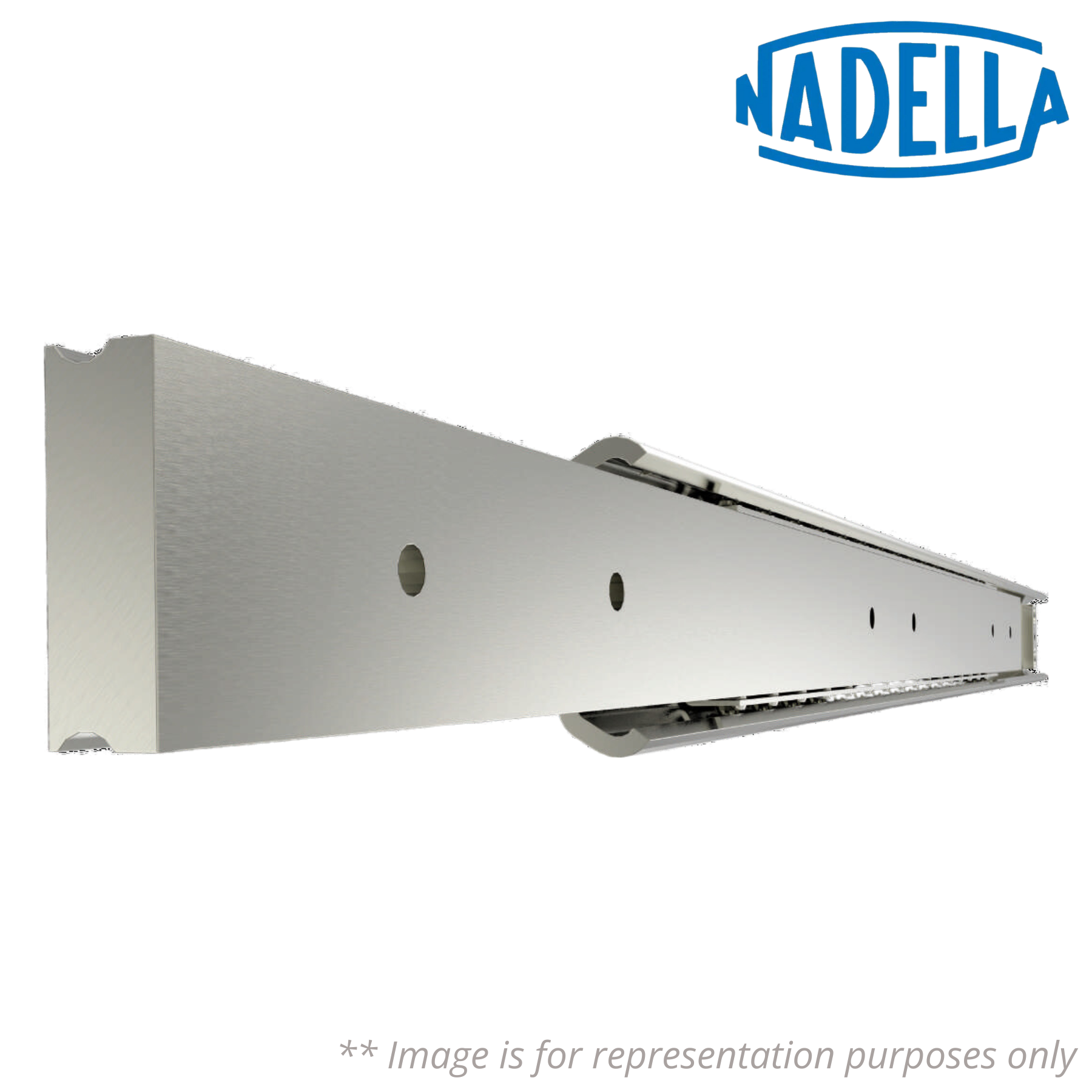

Item Number - NTA48-15T-800 NADELLA
Category - Telescopic Rails Partial Extension
Principal Dimensions & Load Ratings (Metric):
Hole Separation (c) - 400 mm
Length (L) - 800 mm
Extension (E) - 520 mm
Load Capacity for Pair of Rails (Cy) - 900 N
Load Capacity for Pair of Rails (Cz) - 450 N
Net Weight - 3.6 kg
Description of Prefix:
NTA - Telescopic rails partial extension
♦♦ Images are for representation purposes only
Item Number - NTA48-15T-800 NADELLA
Category - Telescopic Rails Partial Extension
Principal Dimensions & Load Ratings (Metric):
Hole Separation (c) - 400 mm
Length (L) - 800 mm
Extension (E) - 520 mm
Load Capacity for Pair of Rails (Cy) - 900 N
Load Capacity for Pair of Rails (Cz) - 450 N
Net Weight - 3.6 kg
Description of Prefix:
NTA - Telescopic rails partial extension
♦♦ Images are for representation purposes only
